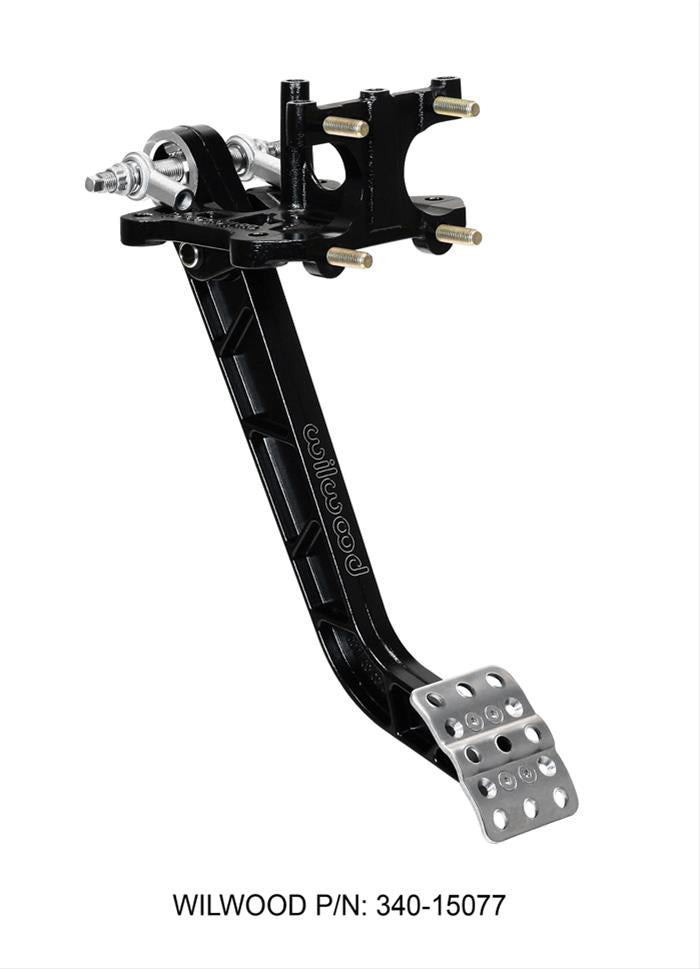

Wilwood Brake Pedal Assemblies 340-15077
Wilwood Brake Pedal Assemblies 340-15077
26 in stock
Couldn't load pickup availability
Product Description
Wilwood's Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood's Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
Wilwood floor mount brake pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation. These pedal assemblies accept any Wilwood vertical-mount flange, single outlet master cylinder (not included; ordered separately by style and bore size).
Application Summary
Part Type
description
| market_ |
Wilwood''s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood''s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers. |
|---|---|
| product_ |
PEDAL ASSEMBLY,REVERSE MT,6.25:1,DUAL |
| product_ |
PEDAL ASSEMBLY,REVERSE MT,6.25:1,DUAL M/C,TRUNNION |
| product_ |
PEDAL ASSEMBLY |
s_item
| department | Interior & Accessories |
|---|---|
| section | Pedals & Pedal Pads |
| name | Wilwood Brake Pedal Assemblies 340-15077 |
| brand | Wilwood Disc Brakes |
| price | 390.25 |
| blurb | Pedal Assembly, Brake Type, Reverse Mount, 6.25:1 Ratio, Aluminum, Black, Each |
| title | Wilwood Brake Pedal Assemblies |
| description | Wilwood floor mount brake pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation. These pedal assemblies accept any Wilwood vertical-mount flange, single outlet master cylinder (not included; ordered separately by style and bore size). |
item_row
| handle | WIL-340-15077 |
|---|---|
| item_ |
138726 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/37a7caf3f0b4f232ba48c621b8d329fb.JPG |
| item_ |
340-15077 |
| item_ |
Wilwood Adjustable-Trubar Brake Pedal - Dual MC - Rev. Swing Mount - 6.25:1 |
| item_ |
Interior Accessories |
| item_ |
Pedals |
| item_ |
889545074147 |
| item_ |
390.25 |
| item_ |
421.47 |
| t14_ |
0 |
| mfr_ |
10 |
| dim_ |
3.40 |
| dim_ |
15.50 |
| dim_ |
9.20 |
| dim_ |
6.10 |
| shipping_ |
14.52 |
| item_ |
wil340-15077 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Features Tru-Bar balance bar system. |
| Quantity | Sold individually. |
| Part Type | Pedal Assemblies |
| Pedal Type | Brake |
| Pedal Color | Black |
| Pedal Ratio | 6.25:1 |
| Product Line | Wilwood Brake Pedal Assemblies |
| Pedal Material | Aluminum |
| Pedal Pad Color | Natural |
| Pedal Pad Included | Yes |
| Pedal Pad Material | Anti-slip surface |
| Balance Bar Included | No |
| Pedal Pad Attachment | Bolt-on |
| Brake Booster Included | No |
| Pedal Mounting Location | Reverse mount |
| Throttle Cable Included | No |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 340-15077 |
