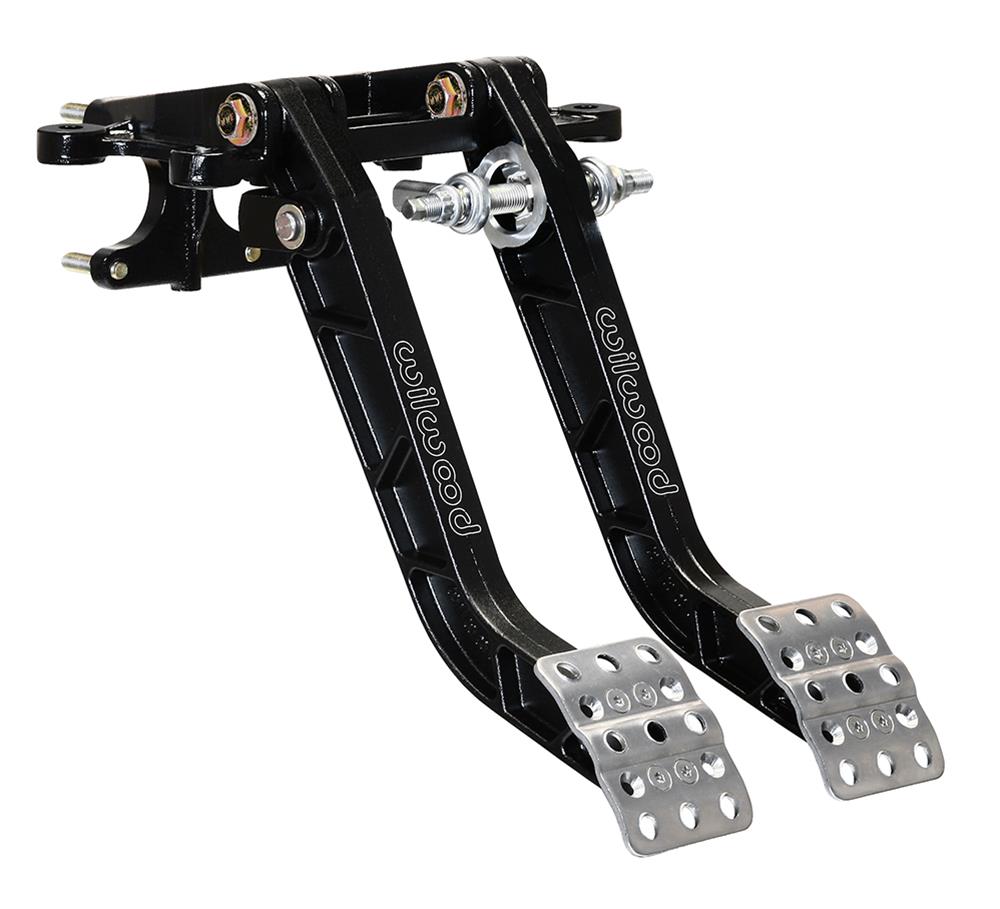

Wilwood Brake/Clutch Pedal Assemblies 340-15072
Wilwood Brake/Clutch Pedal Assemblies 340-15072
24 in stock
Couldn't load pickup availability
Product Description
Wilwood's Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood's Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation. Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles. All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles.
Application Summary
Part Type
description
| market_ |
Wilwood''s Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8" diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood''s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers. |
|---|---|
| product_ |
PEDAL ASSEMBLY,FORWARD MT,6.25:1,TRIPLE |
| product_ |
PEDAL ASSEMBLY,FORWARD MT,6.25:1,TRIPLE M/C,TRUNNION |
| product_ |
PEDAL ASSEMBLY |
s_item
| department | Interior & Accessories |
|---|---|
| section | Pedals & Pedal Pads |
| name | Wilwood Brake/Clutch Pedal Assemblies 340-15072 |
| brand | Wilwood Disc Brakes |
| price | 461.99 |
| blurb | Pedal Assembly, Brake/Clutch, Firewall Mount, Aluminum, Black, Rectangle, 6.25:1 Ratio, Each |
| title | Wilwood Brake/Clutch Pedal Assemblies |
| description | Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation. Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles. All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles. |
item_row
| handle | WIL-340-15072 |
|---|---|
| item_ |
138731 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/ee187a7effd1fd89c275a18a2996d32e.JPG |
| item_ |
340-15072 |
| item_ |
Wilwood Adjustable-Trubar Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 6.25:1 |
| item_ |
Interior Accessories |
| item_ |
Pedals |
| item_ |
889545074093 |
| item_ |
461.99 |
| item_ |
498.95 |
| t14_ |
0 |
| mfr_ |
27 |
| dim_ |
4.80 |
| dim_ |
15.50 |
| dim_ |
9.20 |
| dim_ |
6.10 |
| shipping_ |
14.52 |
| item_ |
wil340-15072 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Pedal Assemblies |
| Pedal Type | Brake/Clutch |
| Pedal Color | Black |
| Pedal Ratio | 6.25:1 |
| Product Line | Wilwood Brake/Clutch Pedal Assemblies |
| Pedal Material | Aluminum |
| Pedal Pad Color | Natural |
| Brake Pedal Shape | Rectangle |
| Clutch Pedal Shape | Rectangle |
| Pedal Pad Included | Yes |
| Pedal Pad Material | Anti-slip surface |
| Balance Bar Included | No |
| Pedal Pad Attachment | Bolt-on |
| Brake Booster Included | No |
| Pedal Mounting Location | Firewall mount |
| Throttle Cable Included | No |
| Brake Pedal Length (in.) | 12.07 in. |
| Master Cylinder Included | No |
| Clutch Pedal Length (in.) | 12.07 in. |
| Manufacturer's Part Number | 340-15072 |
