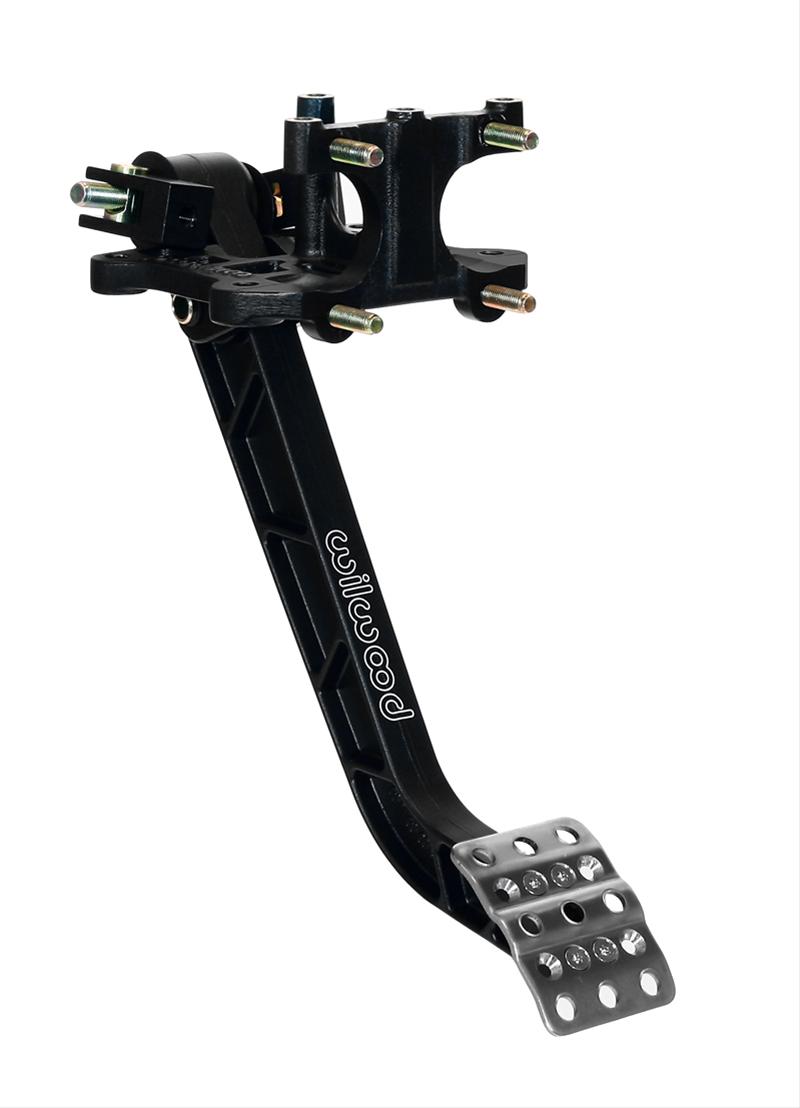

Wilwood Brake Pedal Assemblies 340-12509
Wilwood Brake Pedal Assemblies 340-12509
54 in stock
Couldn't load pickup availability
Product Description
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
Wilwood floor mount brake pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation. These pedal assemblies accept any Wilwood vertical-mount flange, single outlet master cylinder (not included; ordered separately by style and bore size).
Application Summary
Part Type
description
| market_ |
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size |
|---|---|
| product_ |
PEDAL ASSEMBLY,REVERSE MT,6.25:1 |
| product_ |
PEDAL ASSEMBLY,REVERSE MT,6.25:1 ADJUSTABLE,DUAL M/C |
| product_ |
PEDAL ASSEMBLY |
s_item
| department | Interior & Accessories |
|---|---|
| section | Pedals & Pedal Pads |
| name | Wilwood Brake Pedal Assemblies 340-12509 |
| brand | Wilwood Disc Brakes |
| price | 189.24 |
| blurb | Brake Pedal Assembly, Adjustable Reverse Mount, Firewall Mount, Aluminum, Black, Balance Bar, Each |
| title | Wilwood Brake Pedal Assemblies |
| description | Wilwood floor mount brake pedal assemblies are made from lightweight aluminum with high-strength reinforced I-beam-style forged pedal arms and non-skid waffled pedal pads. They're equipped with a balance bar and a pin/clevis pushrod attachment for precise adjustments and smooth, bind-free operation. These pedal assemblies accept any Wilwood vertical-mount flange, single outlet master cylinder (not included; ordered separately by style and bore size). |
item_row
| handle | WIL-340-12509 |
|---|---|
| item_ |
138737 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/fb68879a10f78103f9a0f152f7b1a4a7.JPG |
| item_ |
340-12509 |
| item_ |
Wilwood Adjustable Brake Pedal - Dual MC - Rev. Swing Mount - 6.25:1 |
| item_ |
Interior Accessories |
| item_ |
Pedals |
| item_ |
889545028454 |
| item_ |
189.24 |
| item_ |
204.38 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
3.60 |
| dim_ |
14.40 |
| dim_ |
8.90 |
| dim_ |
5.60 |
| shipping_ |
14.52 |
| item_ |
wil340-12509 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Adjustable reverse mount pedal assembly mounts two brake master cylinders with a bias balance bar and positions the master cylinders inside the firewall and away from engine heat. |
| Quantity | Sold individually. |
| Part Type | Pedal Assemblies |
| Pedal Type | Brake |
| Pedal Color | Black |
| Pedal Ratio | 6.25:1 |
| Product Line | Wilwood Brake Pedal Assemblies |
| Pedal Material | Aluminum |
| Gas Pedal Shape | Rectangle |
| Pedal Pad Color | Black |
| Brake Pedal Shape | Rectangle |
| Pedal Pad Included | Yes |
| Pedal Pad Material | Anti-slip surface |
| Balance Bar Included | Yes |
| Pedal Pad Attachment | Bolt-on |
| Master Cylinder Style | Dual |
| Brake Booster Included | No |
| Pedal Mounting Location | Reverse mount |
| Throttle Cable Included | No |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 340-12509 |
