Wilwood Floor Mount Three Pedal Assemblies 340-12410
Wilwood Floor Mount Three Pedal Assemblies 340-12410
53 in stock
Couldn't load pickup availability
Product Description

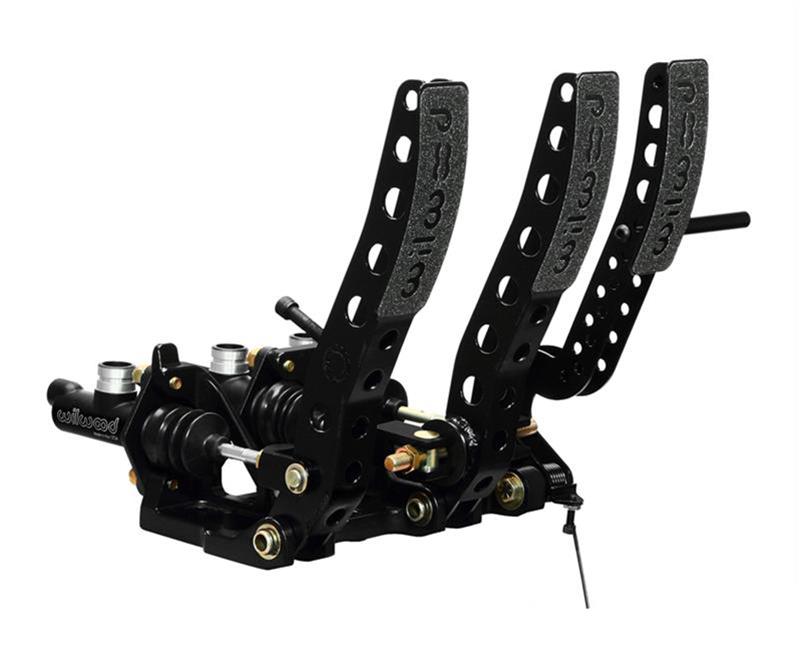

Wilwood's new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and does not include a throttle bell crank and linkage. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
Wilwood floor mount pedals assemblies have a brake/clutch/throttle triple pedal design. The three individual fabricated steel pedals with non-slip pedal pads feature an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with this pedal trio are mounting studs, clevises, and balance bar assemblies that are designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.
Application Summary
Part Type
description
| market_ |
Wilwood''s new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12410 is for rear engine cars and does not include a throttle bell crank and linkage. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio. |
|---|---|
| product_ |
PEDAL ASSEMBLY,FLOOR MT,BRAKE/CLUTCH/GAS |
| product_ |
PEDAL ASSEMBLY |
s_item
| department | Interior & Accessories |
|---|---|
| section | Pedals & Pedal Pads |
| name | Wilwood Floor Mount Three Pedal Assemblies 340-12410 |
| brand | Wilwood Disc Brakes |
| price | 368.91 |
| blurb | Pedal Assembly, Floor Mount, Rectangle, 5.25:1 Ratio, Aluminum, Black, Balance Bar, Each |
| title | Wilwood Floor Mount Three Pedal Assemblies |
| description | Wilwood floor mount pedals assemblies have a brake/clutch/throttle triple pedal design. The three individual fabricated steel pedals with non-slip pedal pads feature an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with this pedal trio are mounting studs, clevises, and balance bar assemblies that are designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio. |
item_row
| handle | WIL-340-12410 |
|---|---|
| item_ |
138805 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/8c57a45955deb9706f7802f0d623bcdd.JPG |
| item_ |
340-12410 |
| item_ |
Wilwood Pedal Assembly Floor Mount-Brake Clutch & Throttle |
| item_ |
Interior Accessories |
| item_ |
Pedals |
| item_ |
889545028423 |
| item_ |
368.91 |
| item_ |
398.42 |
| t14_ |
4 |
| mfr_ |
50 |
| dim_ |
7.00 |
| dim_ |
12.80 |
| dim_ |
10.10 |
| dim_ |
5.70 |
| shipping_ |
14.83 |
| item_ |
wil340-12410 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Designed for use with Wilwood compact, high volume, or combination master cylinders. |
| Quantity | Sold individually. |
| Part Type | Pedal Assemblies |
| Pedal Type | Throttle/Brake/Clutch |
| Pedal Color | Black |
| Pedal Ratio | 5.25:1 |
| Product Line | Wilwood Floor Mount Three Pedal Assemblies |
| Pedal Material | Aluminum |
| Gas Pedal Shape | Rectangle |
| Pedal Pad Color | Natural |
| Brake Pedal Shape | Rectangle |
| Clutch Pedal Shape | Rectangle |
| Pedal Pad Included | Yes |
| Pedal Pad Material | Aluminum |
| Balance Bar Included | Yes |
| Pedal Pad Attachment | Bolt-on |
| Brake Booster Included | No |
| Pedal Mounting Location | Floor mount |
| Throttle Cable Included | No |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 340-12410 |
