Wilwood Brake/Clutch Pedal Assemblies 340-11295
Wilwood Brake/Clutch Pedal Assemblies 340-11295
41 in stock
Couldn't load pickup availability
Product Description

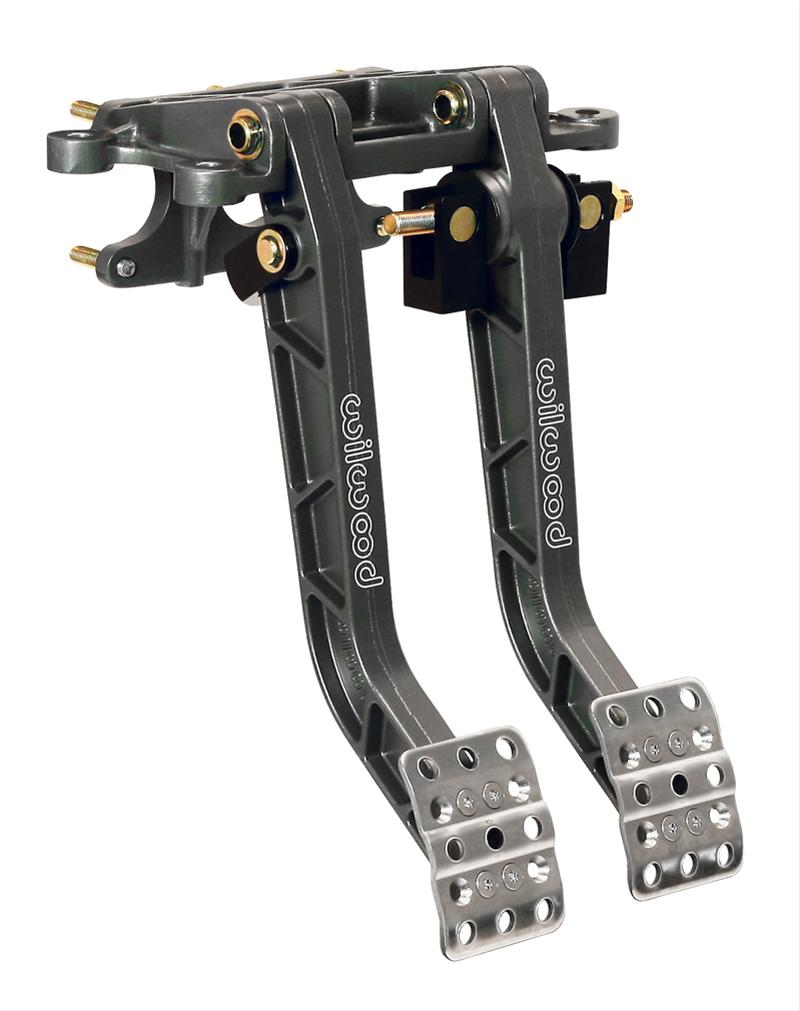

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation. Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles. All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles.
Application Summary
Part Type
description
| market_ |
This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size. |
|---|---|
| product_ |
PEDAL ASSEMBLY,FORWARD MT,HD,6.25:1 |
| product_ |
PEDAL ASSEMBLY,FORWARD MT,HD,6.25:1 ADJUSTABLE,TRIPLE M/C |
| product_ |
PEDAL ASSEMBLY |
s_item
| department | Interior & Accessories |
|---|---|
| section | Pedals & Pedal Pads |
| name | Wilwood Brake/Clutch Pedal Assemblies 340-11295 |
| brand | Wilwood Disc Brakes |
| price | 260.97 |
| blurb | Brake Clutch Pedals, Aluminum, Black, Forward Mount, Universal, Each |
| title | Wilwood Brake/Clutch Pedal Assemblies |
| description | Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation. Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles. All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles. |
item_row
| handle | WIL-340-11295 |
|---|---|
| item_ |
138739 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/b8fd5598bd4cc09f02ee56ac530c2a1e.JPG |
| item_ |
340-11295 |
| item_ |
Wilwood Adjustable Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 6.25:1 |
| item_ |
Interior Accessories |
| item_ |
Pedals |
| item_ |
889545028386 |
| item_ |
260.97 |
| item_ |
281.85 |
| t14_ |
0 |
| mfr_ |
40 |
| dim_ |
5.00 |
| dim_ |
14.80 |
| dim_ |
9.00 |
| dim_ |
5.70 |
| shipping_ |
14.52 |
| item_ |
wil340-11295 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Floor mount brake pedal for dual master cylinders (not included) with balance bar. |
| Quantity | Sold as a kit. |
| Part Type | Pedal Assemblies |
| Pedal Type | Brake/Clutch |
| Pedal Color | Black |
| Pedal Ratio | 6.25:1 |
| Product Line | Wilwood Brake/Clutch Pedal Assemblies |
| Pedal Material | Aluminum |
| Pedal Pad Color | Natural |
| Pedal Pad Included | Yes |
| Pedal Pad Material | Aluminum |
| Balance Bar Included | Yes |
| Pedal Pad Attachment | Bolt-on |
| Brake Booster Included | No |
| Pedal Mounting Location | Forward mount |
| Throttle Cable Included | No |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 340-11295 |
