Wilwood Brake Proportioning Valves 260-8419
Wilwood Brake Proportioning Valves 260-8419
53 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-260-8419_cp.jpg){kind=link}
Product Description

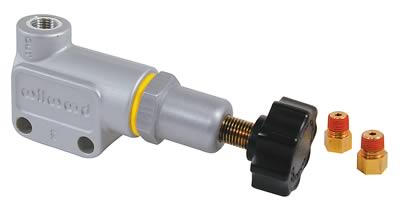

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25" side mounting holes spaced 1.00" apart. Standard in and out ports are 1/8-27 NPT.
Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations.
Application Summary
Part Type
description
| market_ |
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25" side mounting holes spaced 1.00" apart. Standard in and out ports are 1/8-27 NPT. |
|---|---|
| product_ |
VALVE,PROPORTIONING,COMPACT-ASSEMBLY |
| product_ |
VALVE,PROPORTIONING,COMPACT-ASSEMBLY KNOB TYPE,WILWOOD |
| product_ |
VALVE,PROPORTIONING |
s_item
| department | Brake Systems |
|---|---|
| section | Proportion Valves |
| name | Wilwood Brake Proportioning Valves 260-8419 |
| brand | Wilwood Disc Brakes |
| price | 48.44 |
| blurb | Brake Proportioning Valve, Knob Adjustment, 1/8 in. NPT, Single Inlet/Outlet, Aluminum, Natural, Each |
| title | Wilwood Brake Proportioning Valves |
| description | Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations. |
item_row
| handle | WIL-260-8419 |
|---|---|
| item_ |
136530 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/45ca03f28fc7228e148c59d358cf0626.JPG |
| item_ |
260-8419 |
| item_ |
Wilwood Proportioning Valve - Knob Adjust |
| item_ |
Brake (Other) |
| item_ |
Brake Hardware |
| item_ |
889545067934 |
| item_ |
48.44 |
| item_ |
52.32 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
0.46 |
| dim_ |
8.00 |
| dim_ |
5.00 |
| dim_ |
0.10 |
| shipping_ |
14.52 |
| item_ |
wil260-8419 |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Includes two 1/8 in. NPT male to 3/8 in. -24 female inverted flare adapter fittings. |
| Quantity | Sold individually. |
| Part Type | Brake Proportioning Valves and Distribution Blocks |
| Product Line | Wilwood Brake Proportioning Valves |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Adjustment Style | Knob |
| Inlet Attachment | Female threads |
| Outlet Attachment | Female threads |
| Brake Line Inlet Size | 1/8 in. NPT |
| Brake Line Outlet Size | 1/8 in. NPT |
| Maximum Pressure (psi) | 3,000 psi |
| Minimum Pressure (psi) | 100 psi |
| Pressure Reduction (%) | 57 percent |
| Manufacturer's Part Number | 260-8419 |
| Proportioning Valve Finish | Natural |
| Connector For Warning Light | No |
| Proportioning Valve Material | Aluminum |
