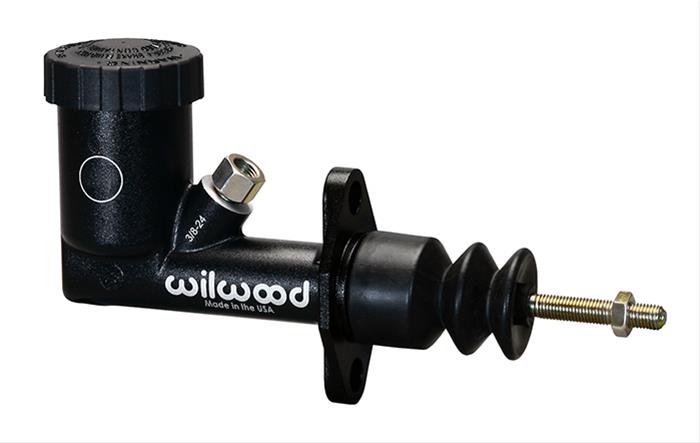

Wilwood GS Compact Master Cylinders 260-15098
Wilwood GS Compact Master Cylinders 260-15098
119 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-260-15096_xl_3070f7f7-4486-4a94-ae9c-8551cb7e5fc0.jpg){kind=link}
Product Description
Wilwood's new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
The Wilwood 260-15098 master cylinder features a lightweight aluminum construction and offers consistent, reliable stopping power for a variety of applications from drag racing to off-roading. Utilizing standard OEM internal components for dependability, this Wilwood brake master cylinder features a high-pressure, e-coated aluminum body and integral cylinders with a positive-seal internal bellows cap. The included return spring and piston assembly have been refined to ensure positive pressure control and complete release. Other features of the Wilwood GS compact master cylinder include a ¾-inch bore size, a 1.5-ounce reservoir, and a single outlet.
Application Summary
Part Type
description
| market_ |
Wilwood''s new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellows cap. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release. |
|---|---|
| product_ |
M/C,GS,WILWOOD,.75 DIA,INTEGRAL |
| product_ |
M/C,GIRLING |
s_item
| department | Brake Systems |
|---|---|
| section | Master Cylinders & Boosters |
| name | Wilwood GS Compact Master Cylinders 260-15098 |
| brand | Wilwood Disc Brakes |
| price | 77.36 |
| blurb | Master Cylinder, GS Compact Integral, Aluminum, Black, 0.750 in. Bore, Universal, Each |
| title | Wilwood GS Compact Master Cylinders |
| description | The Wilwood 260-15098 master cylinder features a lightweight aluminum construction and offers consistent, reliable stopping power for a variety of applications from drag racing to off-roading. Utilizing standard OEM internal components for dependability, this Wilwood brake master cylinder features a high-pressure, e-coated aluminum body and integral cylinders with a positive-seal internal bellows cap. The included return spring and piston assembly have been refined to ensure positive pressure control and complete release. Other features of the Wilwood GS compact master cylinder include a ¾-inch bore size, a 1.5-ounce reservoir, and a single outlet. |
item_row
| handle | WIL-260-15098 |
|---|---|
| item_ |
136482 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/728f0c84417b63ea1c9da01c74a8ea8f.JPG |
| item_ |
260-15098 |
| item_ |
Wilwood GS Integral Master Cylinder - .750in Bore |
| item_ |
Brake (Other) |
| item_ |
Brake Master Cylinder |
| item_ |
889545074390 |
| item_ |
77.36 |
| item_ |
83.55 |
| t14_ |
24 |
| mfr_ |
50 |
| dim_ |
1.10 |
| dim_ |
9.80 |
| dim_ |
5.80 |
| dim_ |
2.10 |
| shipping_ |
14.52 |
| item_ |
wil260-15098 |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Master Cylinders |
| Bowl Design | Single |
| Product Line | Wilwood GS Compact Master Cylinders |
| Outlet Size 1 | 3/8 in.-24 |
| Remanufactured | No |
| Outlet Quantity | 1 |
| Pushrod Included | Yes |
| Remote Reservoir | No |
| Reservoir Finish | Black |
| Hardware Included | No |
| Reservoir Included | Yes |
| Reservoir Material | Aluminum |
| Master Cylinder Usage | Brake/Clutch |
| Master Cylinder Finish | Black |
| Master Cylinder Stroke | 1.250 in. |
| Mounting Hole Quantity | 2 holes |
| Power Brake Compatible | No |
| Master Cylinder Material | Aluminum |
| Master Cylinder Bore Size | 0.750 in. |
| Manufacturer's Part Number | 260-15098 |
| Mounting Brackets Included | No |
| Master Cylinder Cap Included | Yes |
| Mounting Flange Center to Center Distance (in.) | 2.250 in. |
