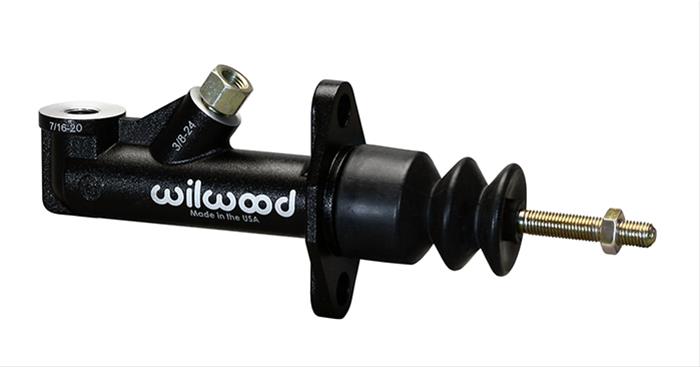

Wilwood GS Compact Master Cylinders 260-15092
Wilwood GS Compact Master Cylinders 260-15092
53 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-260-15088_xl.jpg){kind=link}
Product Description
Wilwood's new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.
Wilwood GS compact master cylinders have a re-buildable design featuring high-pressure die-cast aluminum bodies with protective E-coat finishes. These master cylinders are available with an integrated reservoir or with a 7/16 in.-20 threaded inlet for a remote reservoir. The internal components have a refined return spring and piston assemblies, assuring positive pressure control, along with a quick and complete release. Choose the bore size needed for your application.
Application Summary
Part Type
description
| market_ |
Wilwood''s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release. |
|---|---|
| product_ |
M/C,GS,WILWOOD,.81 DIA,REMOTE |
| product_ |
M/C,GIRLING |
s_item
| department | Transmission & Drivetrain |
|---|---|
| section | Transmissions |
| name | Wilwood GS Compact Master Cylinders 260-15092 |
| brand | Wilwood Disc Brakes |
| price | 75.06 |
| blurb | Clutch Master Cylinder, GS Compact Remote, Cast Aluminum, Black, 3/8-24 in. Outlet, Each |
| title | Wilwood GS Compact Master Cylinders |
| description | Wilwood GS compact master cylinders have a re-buildable design featuring high-pressure die-cast aluminum bodies with protective E-coat finishes. These master cylinders are available with an integrated reservoir or with a 7/16 in.-20 threaded inlet for a remote reservoir. The internal components have a refined return spring and piston assemblies, assuring positive pressure control, along with a quick and complete release. Choose the bore size needed for your application. |
item_row
| handle | WIL-260-15092 |
|---|---|
| item_ |
136479 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/91db2d45c1c3ad2834aada15e64f18b5.JPG |
| item_ |
260-15092 |
| item_ |
Wilwood GS Remote Master Cylinder - .810in Bore |
| item_ |
Brake (Other) |
| item_ |
Brake Master Cylinder |
| item_ |
889545074369 |
| item_ |
75.06 |
| item_ |
81.06 |
| t14_ |
1 |
| mfr_ |
50 |
| dim_ |
0.90 |
| dim_ |
9.90 |
| dim_ |
5.60 |
| dim_ |
2.20 |
| shipping_ |
14.52 |
| item_ |
wil260-15092 |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Master Cylinders |
| Bowl Design | Single |
| Product Line | Wilwood GS Compact Master Cylinders |
| Outlet Size 1 | 3/8 in.-24 |
| Remanufactured | No |
| Outlet Quantity | 1 |
| Pushrod Included | Yes |
| Remote Reservoir | Yes |
| Hardware Included | No |
| Reservoir Included | No |
| Master Cylinder Usage | Brake/Clutch |
| Master Cylinder Finish | Black |
| Master Cylinder Stroke | 1.250 in. |
| Mounting Hole Quantity | 2 holes |
| Power Brake Compatible | No |
| Master Cylinder Material | Aluminum |
| Master Cylinder Bore Size | 0.813 in. |
| Manufacturer's Part Number | 260-15092 |
| Mounting Brackets Included | No |
| Master Cylinder Cap Included | No |
| Mounting Flange Center to Center Distance (in.) | 2.250 in. |
