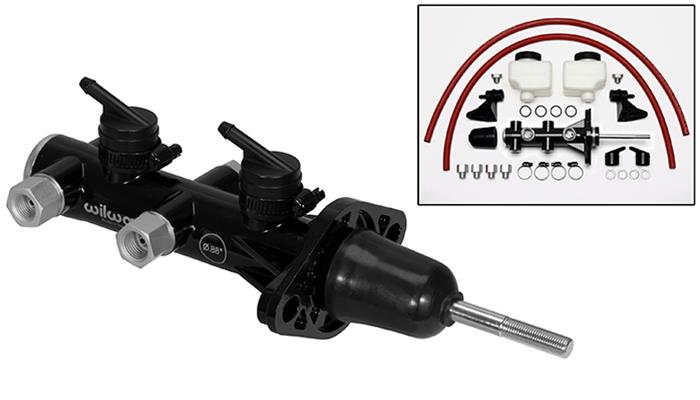

Wilwood Combination Remote Tandem Master Cylinders 260-14389-BK
Wilwood Combination Remote Tandem Master Cylinders 260-14389-BK
25 in stock
Couldn't load pickup availability
Product Description
Wilwood's new Remote Tandem Master Cylinder w/ Pushrod is available in 4 bore sizes 7/8”, 15/16”, 1.00" and 1.12" and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.
Wilwood combination remote tandem master cylinders provide one of the safest ways to actuate 4-wheel or dual-caliper axle brake systems. These versatile, lightweight, and easily adapted master cylinders provide single-pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net, should any one side of the system become inoperable. They're a great match for Wilwood's bolt-on disc brake kits, systems configured from OE components, and a variety of industrial applications.
Application Summary
Part Type
description
| market_ |
Wilwood''s new Remote Tandem Master Cylinder w/ Pushrod is available in 4 bore sizes 7/8”, 15/16”, 1.00" and 1.12" and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit. |
|---|---|
| product_ |
M/C,TANDEM,REMOTE,1.12 DIA,DIECAST,DUAL |
| product_ |
M/C,TANDEM,REMOTE,1.12 DIA,DIECAST,DUAL OUTLET,W/PUSHROD,WILWOOD,BLACK |
| product_ |
M/C,TANDEM REMOTE |
s_item
| department | Brake Systems |
|---|---|
| section | Master Cylinders & Boosters |
| name | Wilwood Combination Remote Tandem Master Cylinders 260-14389-BK |
| brand | Wilwood Disc Brakes |
| price | 299.38 |
| blurb | Brake Master Cylinder, Combination Remote Tandem, Aluminum, Black E-coat, 1.125 in. Bore, Reservoirs, Kit |
| title | Wilwood Combination Remote Tandem Master Cylinders |
| description | Wilwood combination remote tandem master cylinders provide one of the safest ways to actuate 4-wheel or dual-caliper axle brake systems. These versatile, lightweight, and easily adapted master cylinders provide single-pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net, should any one side of the system become inoperable. They're a great match for Wilwood's bolt-on disc brake kits, systems configured from OE components, and a variety of industrial applications. |
item_row
| handle | WIL-260-14389-BK |
|---|---|
| item_ |
581830 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
|
| item_ |
260-14389-BK |
| item_ |
Wilwood Remote Tandem M/C 1.12 Dia Diecast Dual |
| item_ |
Miscellaneous |
| item_ |
Uncategorized |
| item_ |
889545080650 |
| item_ |
299.38 |
| item_ |
323.33 |
| t14_ |
0 |
| mfr_ |
14 |
| dim_ |
2.90 |
| dim_ |
13.50 |
| dim_ |
5.44 |
| dim_ |
5.13 |
| shipping_ |
14.53 |
| item_ |
wil260-14389-BK |
| taxonomy_ |
|
| collection_ |
274103042090 |
| collection_ |
Miscellaneous |
| status | Active |
| item_ |
1 |
| item_ |
Uncategorized |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold as a kit. |
| Part Type | Master Cylinders |
| Bowl Design | Dual |
| Product Line | Wilwood Combination Remote Tandem Master Cylinders |
| Remanufactured | No |
| Pushrod Included | Yes |
| Remote Reservoir | Yes |
| Reservoir Finish | White |
| Hardware Included | No |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Master Cylinder Usage | Brake |
| Master Cylinder Finish | Black |
| Master Cylinder Stroke | 1.120 in. |
| Mounting Hole Quantity | 2 holes |
| Power Brake Compatible | No |
| Master Cylinder Material | Aluminum |
| Master Cylinder Bore Size | 1.125 in. |
| Manufacturer's Part Number | 260-14389-BK |
| Mounting Brackets Included | Yes |
| Master Cylinder Cap Included | Yes |
| Mounting Flange Center to Center Distance (in.) | 3.220-3.400 in. |
