Wilwood Brake Proportioning Valves 260-14248
Wilwood Brake Proportioning Valves 260-14248
54 in stock
Couldn't load pickup availability
Product Description

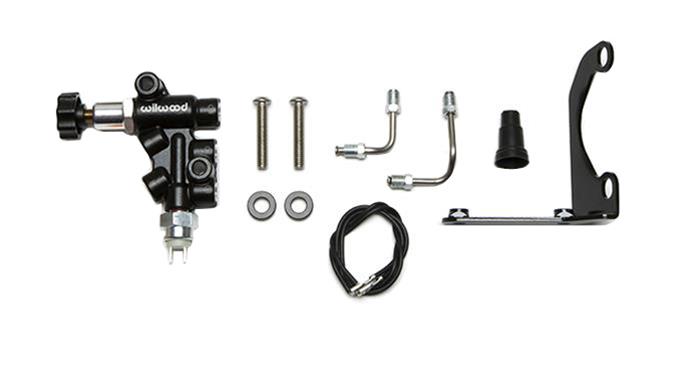

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve1/4” with their new Mounting Bracket Kit. Specifically designed to work in conjunction with Wilwood Remote Tandem Master Cylinders in manual or boosted system applications. Kit includes: Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.
Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations.
Application Summary
Part Type
description
| market_ |
Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve1/4” with their new Mounting Bracket Kit. Specifically designed to work in conjunction with Wilwood Remote Tandem Master Cylinders in manual or boosted system applications. Kit includes: Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179. |
|---|---|
| product_ |
P-VALVE,COMBO PROPORTIONING W/ MOUNTING |
| product_ |
P-VALVE,COMBO PROPORTIONING W/ MOUNTING BRACKET,REMOTE TANDEM,L/H |
| product_ |
M/C,TANDEM |
s_item
| department | Brake Systems |
|---|---|
| section | Proportion Valves |
| name | Wilwood Brake Proportioning Valves 260-14248 |
| brand | Wilwood Disc Brakes |
| price | 136.36 |
| blurb | Prop Valve Combo P-VALVE, COMBO PROPORTIONING W/ MOUNTING |
| title | Wilwood Brake Proportioning Valves |
| description | Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations. |
item_row
| handle | WIL-260-14248 |
|---|---|
| item_ |
136455 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/37071ab03a27bb28e0e6e37e334e3f98.JPG |
| item_ |
260-14248 |
| item_ |
Wilwood Tandem Remote Master Cylinder Mounting Bracket L/H Kit w/ Prop Valve |
| item_ |
Miscellaneous |
| item_ |
Uncategorized |
| item_ |
889545078190 |
| item_ |
136.36 |
| item_ |
147.27 |
| t14_ |
1 |
| mfr_ |
50 |
| dim_ |
1.70 |
| dim_ |
10.20 |
| dim_ |
9.40 |
| dim_ |
3.40 |
| shipping_ |
14.52 |
| item_ |
wil260-14248 |
| taxonomy_ |
|
| collection_ |
274103042090 |
| collection_ |
Miscellaneous |
| status | Active |
| item_ |
1 |
| item_ |
Uncategorized |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Kit includes mounting bracket for left hand side, two pre-formed brake lines from the master cylinder to the proportioning valve and mounting hardware. Designed to be used with master cylinders 260-14241, 260-14242, 260-14243 or 260-14244. |
| Quantity | Sold as a kit. |
| Part Type | Brake Proportioning Valves and Distribution Blocks |
| Product Line | Wilwood Brake Proportioning Valves |
| Inlet Quantity | 2 |
| Outlet Quantity | 3 |
| Adjustment Style | Knob |
| Inlet Attachment | Female threads |
| Outlet Attachment | Female threads |
| Brake Line Inlet Size | 3/8 in.-24 inverted flare |
| Brake Line Outlet Size | 3/8 in.-24 inverted flare |
| Maximum Pressure (psi) | 1,000 psi |
| Minimum Pressure (psi) | 100 psi |
| Pressure Reduction (%) | 57 percent |
| Manufacturer's Part Number | 260-14248 |
| Proportioning Valve Finish | Black E-coat |
| Connector For Warning Light | Yes |
| Proportioning Valve Material | Aluminum |
