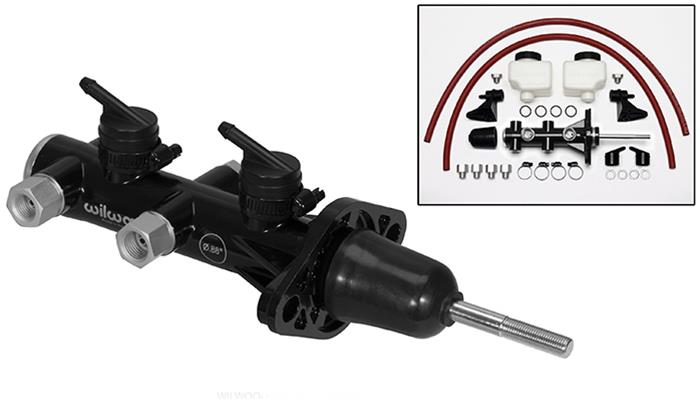

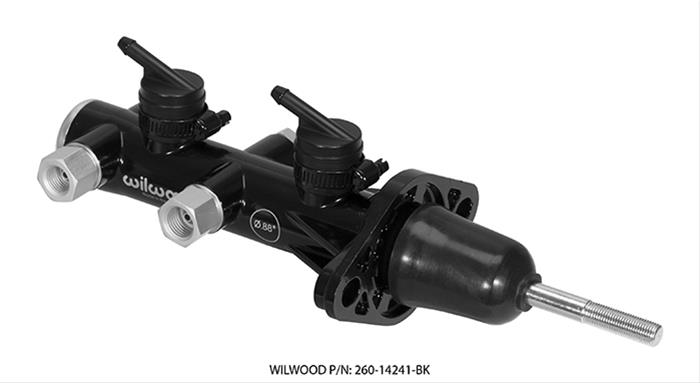

Wilwood Aluminum Tandem Master Cylinders 260-14241-BK
Wilwood Aluminum Tandem Master Cylinders 260-14241-BK
15 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-260-14241-bk_qy_xl_16f418e7-3a6e-4731-a3f3-944370160a6a.jpg){kind=link}
Product Description
Wilwood’s new Remote Tandem Master Cylinder w/ Pushrod is available in 4 bore sizes 7/8”, 15/16”, 1.00" and 1.12" and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit.
Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. They are available in plain, ball burnished, and black e-coat finishes. The features incorporated into the innovative and unique design make them the perfect choice for a wide range of custom manual or power brake applications. High-pressure diecasting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A machined billet lid captures a pressure-balanced bellows gasket with 100 percent sealing against moisture invasion or fluid leakage.
Application Summary
Part Type
description
| market_ |
Wilwood’s new Remote Tandem Master Cylinder w/ Pushrod is available in 4 bore sizes 7/8”, 15/16”, 1.00" and 1.12" and in two finishes: ball burnished and black e-coat. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid-1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.12” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer our combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see PN 260-14248 for a retrofit kit. |
|---|---|
| product_ |
M/C,TANDEM,REMOTE,7/8 DIA,DIECAST,DUAL |
| product_ |
M/C,TANDEM,REMOTE,7/8 DIA,DIECAST,DUAL OUTLET,WILWOOD,BLACK |
| product_ |
M/C,TANDEM REMOTE |
s_item
| department | Brake Systems |
|---|---|
| section | Master Cylinders & Boosters |
| name | Wilwood Aluminum Tandem Master Cylinders 260-14241-BK |
| brand | Wilwood Disc Brakes |
| price | 299.38 |
| blurb | Master Cylinder, Tandem, Aluminum, Black E-coat, 7/8 in. Bore, Reservoirs, 7 oz. Each, Kit |
| title | Wilwood Aluminum Tandem Master Cylinders |
| description | Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. They are available in plain, ball burnished, and black e-coat finishes. The features incorporated into the innovative and unique design make them the perfect choice for a wide range of custom manual or power brake applications. High-pressure diecasting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A machined billet lid captures a pressure-balanced bellows gasket with 100 percent sealing against moisture invasion or fluid leakage. |
item_row
| handle | WIL-260-14241-BK |
|---|---|
| item_ |
136508 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/e9b7bac0fa02f66081ce9066006262dd.JPG |
| item_ |
260-14241-BK |
| item_ |
Wilwood Tandem Remote Master Cylinder - 7/8in Bore Black |
| item_ |
Brake (Other) |
| item_ |
Brake Master Cylinder |
| item_ |
889545078114 |
| item_ |
299.38 |
| item_ |
323.33 |
| t14_ |
0 |
| mfr_ |
24 |
| dim_ |
2.95 |
| dim_ |
13.50 |
| dim_ |
5.44 |
| dim_ |
5.13 |
| shipping_ |
14.53 |
| item_ |
wil260-14241-BK |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold as a kit. |
| Part Type | Master Cylinders |
| Bowl Design | Dual |
| Product Line | Wilwood Aluminum Tandem Master Cylinders |
| Remanufactured | No |
| Pushrod Included | Yes |
| Remote Reservoir | Yes |
| Reservoir Finish | White |
| Hardware Included | No |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Master Cylinder Usage | Brake |
| Master Cylinder Finish | Black |
| Master Cylinder Stroke | 1.120 in. |
| Mounting Hole Quantity | 2 holes |
| Power Brake Compatible | No |
| Master Cylinder Material | Aluminum |
| Master Cylinder Bore Size | 0.875 in. |
| Manufacturer's Part Number | 260-14241-BK |
| Mounting Brackets Included | Yes |
| Master Cylinder Cap Included | Yes |
| Mounting Flange Center to Center Distance (in.) | 3.220 in. |
