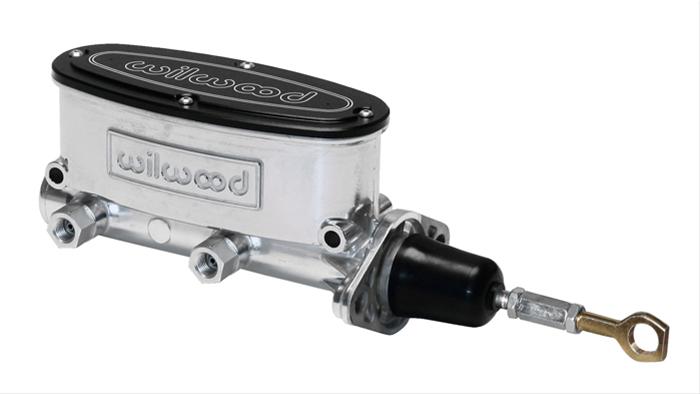

Wilwood Aluminum Tandem Master Cylinders 260-12900-P
Wilwood Aluminum Tandem Master Cylinders 260-12900-P
15 in stock
Couldn't load pickup availability
/update?link=products%2Fwil-260-12900-p_xl.jpg){kind=link}
Product Description
Wilwood's Tandem Aluminum Master Cylinder for Mustangs comes with the correct pushrod; a 7/8" or 15/16" bore, and is available in 3 finishes; plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They're designed for mount flanges from 3.22" to 3.40", which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit
Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. They are available in plain, ball burnished, and black e-coat finishes. The features incorporated into the innovative and unique design make them the perfect choice for a wide range of custom manual or power brake applications. High-pressure diecasting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A machined billet lid captures a pressure-balanced bellows gasket with 100 percent sealing against moisture invasion or fluid leakage.
Application Summary
Part Type
description
| market_ |
Wilwood''s Tandem Aluminum Master Cylinder for Mustangs comes with the correct pushrod; a 7/8" or 15/16" bore, and is available in 3 finishes; plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include the correct pushrod for the factory 64-72 brake pedal. They''re designed for mount flanges from 3.22" to 3.40", which match the 64-72 factory manual master cylinder mount, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit |
|---|---|
| product_ |
M/C,TANDEM,7/8,FORD/MUSTANG MANUAL |
| product_ |
M/C,TANDEM,7/8,FORD/MUSTANG MANUAL W/ROD ASSEMBLY,WILWOOD,BALL BURNISH |
| product_ |
M/C,TANDEM |
s_item
| department | Brake Systems |
|---|---|
| section | Master Cylinders & Boosters |
| name | Wilwood Aluminum Tandem Master Cylinders 260-12900-P |
| brand | Wilwood Disc Brakes |
| price | 298.32 |
| blurb | Brake Master Cylinder, Tandem, 0.875 in. Bore Size, Aluminum, Ball Burnished, Ford, Each |
| title | Wilwood Aluminum Tandem Master Cylinders |
| description | Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. They are available in plain, ball burnished, and black e-coat finishes. The features incorporated into the innovative and unique design make them the perfect choice for a wide range of custom manual or power brake applications. High-pressure diecasting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A machined billet lid captures a pressure-balanced bellows gasket with 100 percent sealing against moisture invasion or fluid leakage. |
item_row
| handle | WIL-260-12900-P |
|---|---|
| item_ |
136501 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/35b589dd60ee2c341dd94f868da23a82.JPG |
| item_ |
260-12900-P |
| item_ |
Wilwood High Volume Tandem M/C - 7/8in Bore Ball Burnished-W/Pushrod - Early Mustang |
| item_ |
Brake (Other) |
| item_ |
Brake Master Cylinder |
| item_ |
889545067101 |
| item_ |
298.32 |
| item_ |
322.19 |
| t14_ |
0 |
| mfr_ |
24 |
| dim_ |
3.50 |
| dim_ |
13.50 |
| dim_ |
5.44 |
| dim_ |
5.13 |
| shipping_ |
14.52 |
| item_ |
wil260-12900-P |
| taxonomy_ |
5367 |
| collection_ |
273461575722 |
| collection_ |
Brake (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Master Cylinders |
| Bowl Design | Dual |
| Product Line | Wilwood Aluminum Tandem Master Cylinders |
| Pushrod Included | Yes |
| Remote Reservoir | No |
| Reservoir Finish | Polished |
| Hardware Included | No |
| Reservoir Included | Yes |
| Reservoir Material | Aluminum |
| Master Cylinder Usage | Brake |
| Master Cylinder Finish | Polished |
| Master Cylinder Stroke | 1.100 in. |
| Mounting Hole Quantity | 2 holes |
| Power Brake Compatible | No |
| Master Cylinder Material | Aluminum |
| Master Cylinder Bore Size | 0.875 in. |
| Manufacturer's Part Number | 260-12900-P |
| Mounting Brackets Included | No |
| Master Cylinder Cap Included | Yes |
| Mounting Flange Center to Center Distance (in.) | 3.220-3.400 in. |
