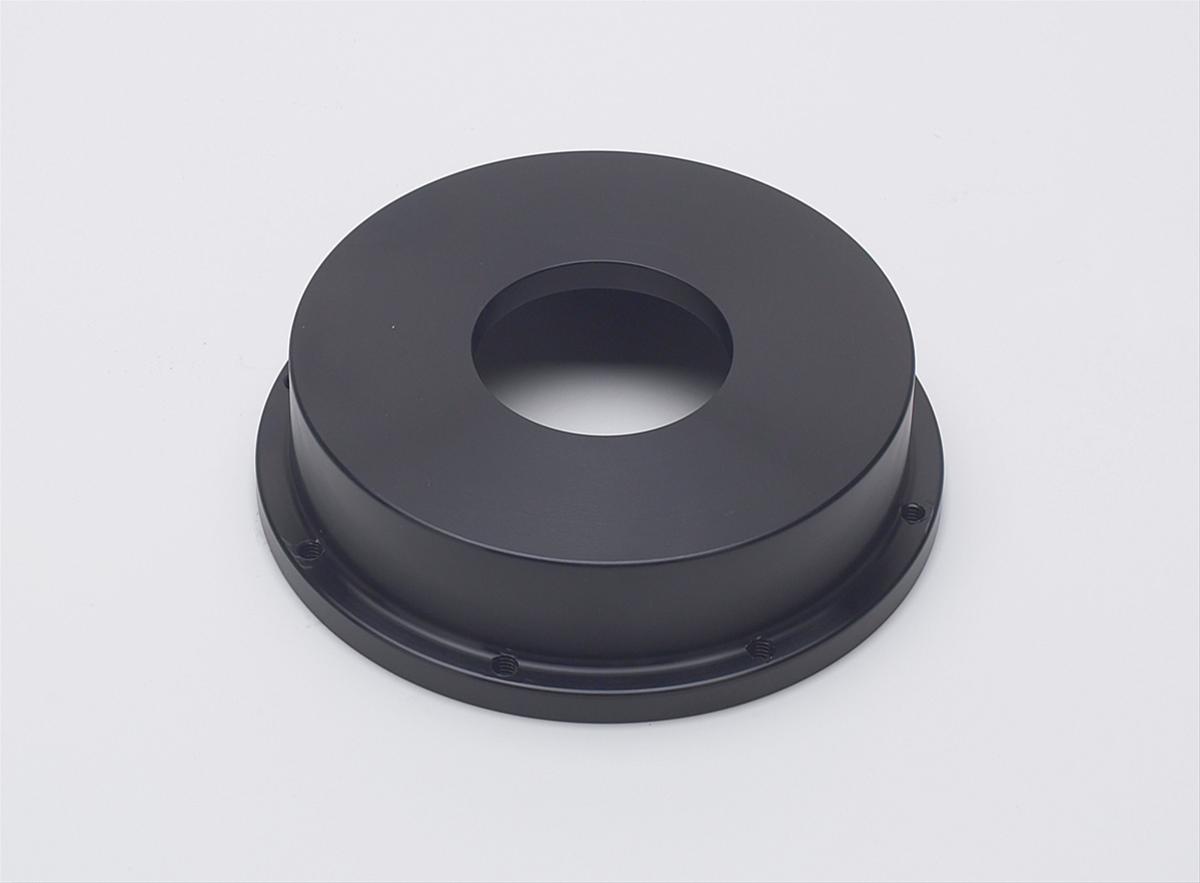

Wilwood HD Fixed Mount Brake Rotor Hats 171-2233
Wilwood HD Fixed Mount Brake Rotor Hats 171-2233
52 in stock
Couldn't load pickup availability
Product Description
Wilwood's Pro Street Series Fixed Mount Rotor Hats have a long standing reputation for fit, performance, and durability. HD Series hats are manufactured from premium grade aluminum alloys offering high strength, low weight, and show quality appeal. HD hats have not only been a mainstay in many of Wilwood's racing disc brake conversion kits, but they can cover a range of applications from an OE four lug axle shaft to a Grand-National stock car racing hub. Pro Street hats feature a straight bell construction with a flanged rotor mount ring, with through holes for use with threaded-hole, 8 x 7.62 mount rotors. These features combine to provide maximum radial clearance between the caliper body and the hat. This can be a critical factor when trying to squeeze a large caliper inside a small wheel. Many hats offer multi-lug wheel patterns for added versatility. Some hats can be ordered blank for custom axle building and other unique applications.
These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation.
Application Summary
Part Type
description
| market_ |
Wilwood''s Pro Street Series Fixed Mount Rotor Hats have a long standing reputation for fit, performance, and durability. HD Series hats are manufactured from premium grade aluminum alloys offering high strength, low weight, and show quality appeal. HD hats have not only been a mainstay in many of Wilwood''s racing disc brake conversion kits, but they can cover a range of applications from an OE four lug axle shaft to a Grand-National stock car racing hub. Pro Street hats feature a straight bell construction with a flanged rotor mount ring, with through holes for use with threaded-hole, 8 x 7.62 mount rotors. These features combine to provide maximum radial clearance between the caliper body and the hat. This can be a critical factor when trying to squeeze a large caliper inside a small wheel. Many hats offer multi-lug wheel patterns for added versatility. Some hats can be ordered blank for custom axle building and other unique applications. |
|---|---|
| product_ |
HAT,REAR,PRO-STREET,2.00,8x7.62 BC |
| product_ |
HAT,REAR,PRO-STREET,2.00,8x7.62 BC UNDRILLED |
| product_ |
BRAKE ROTOR HAT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood HD Fixed Mount Brake Rotor Hats 171-2233 |
| brand | Wilwood Disc Brakes |
| price | 115.45 |
| blurb | Brake Hat, 8 x 7.62 in. Rotor Bolt Pattern, Undrilled for Wheel Studs, Each |
| title | Wilwood HD Fixed Mount Brake Rotor Hats |
| description | These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation. |
item_row
| handle | WIL-171-2233 |
|---|---|
| item_ |
139935 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/cb72a179161721951844be96db1f0b8f.JPG |
| item_ |
171-2233 |
| item_ |
Wilwood Hat-Blank 2.00in Offset Undrilled - 8 on 7.62in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545042931 |
| item_ |
115.45 |
| item_ |
124.68 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
2.50 |
| dim_ |
9.10 |
| dim_ |
8.90 |
| dim_ |
2.70 |
| shipping_ |
14.53 |
| item_ |
wil171-2233 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Hat is undrilled, requires drilling of your stud hole size and bolt pattern. |
| Quantity | Sold individually. |
| Part Type | Brake Rotor Hats |
| Product Line | Wilwood HD Fixed Mount Brake Rotor Hats |
| Brake Rotor Hat Type | 5/16 in. through hole |
| Brake Rotor Hat Color | Black |
| Brake Rotor Hat Material | Aluminum |
| Manufacturer's Part Number | 171-2233 |
| Brake Rotor Hat Bolt Circle | 8 x 7.62 in. |
| Brake Rotor Hat Offset (in.) | 2.00 |
| Brake Rotor Hat Clearance I.D. (in.) | 6.50 |
| Brake Rotor Hat Face Thickness (in.) | 0.25 |
| Brake Rotor Hat Center Hole I.D. (in.) | 2.78 |
