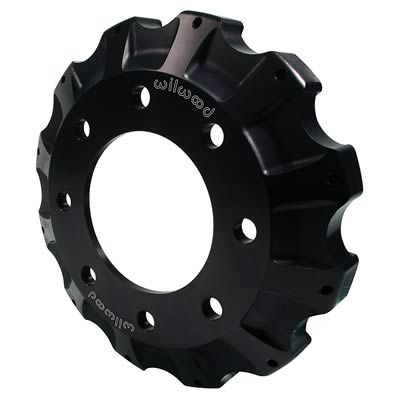

Wilwood HD Fixed Mount Brake Rotor Hats 170-8405
Wilwood HD Fixed Mount Brake Rotor Hats 170-8405
36 in stock
Couldn't load pickup availability
Product Description
GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.
These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation.
Application Summary
Part Type
description
| market_ |
GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns. |
|---|---|
| product_ |
HAT,8x7.00 BC,4x3.93 MT,1.16 OFFSET |
| product_ |
HAT,8x7.00 BC,4x3.93 MT,1.16 OFFSET 2.53 REG |
| product_ |
BRAKE ROTOR HAT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood HD Fixed Mount Brake Rotor Hats 170-8405 |
| brand | Wilwood Disc Brakes |
| price | 182.42 |
| blurb | Brake Rotor Hat, HD Fixed Mount, Aluminum, Black, 4 x 3.94 in. Bolt Pattern, Each |
| title | Wilwood HD Fixed Mount Brake Rotor Hats |
| description | These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation. |
item_row
| handle | WIL-170-8405 |
|---|---|
| item_ |
140177 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/36709b48387694ba07e4e82d63152cb4.JPG |
| item_ |
170-8405 |
| item_ |
Wilwood Hat-BB Front 1.16in Offset 4 x 3.93 - 8 on 7.00in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545042597 |
| item_ |
182.42 |
| item_ |
197.01 |
| t14_ |
0 |
| mfr_ |
18 |
| dim_ |
1.70 |
| dim_ |
8.50 |
| dim_ |
8.50 |
| dim_ |
2.00 |
| shipping_ |
14.52 |
| item_ |
wil170-8405 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Rotor Hats |
| Product Line | Wilwood HD Fixed Mount Brake Rotor Hats |
| Brake Rotor Hat Type | 5/16-18 in. threaded hole |
| Brake Rotor Hat Color | Black |
| Brake Rotor Hat Material | Aluminum |
| Manufacturer's Part Number | 170-8405 |
| Brake Rotor Hat Bolt Circle | 8 x 7.00 in. |
| Brake Rotor Hat Offset (in.) | 1.16 |
| Brake Rotor Hat Clearance I.D. (in.) | 5.90 |
| Brake Rotor Hat Face Thickness (in.) | 0.25 |
| Brake Rotor Hat Center Hole I.D. (in.) | 2.53 |
| Brake Rotor Hat Stud Hole Diameter (in.) | 0.50 |
