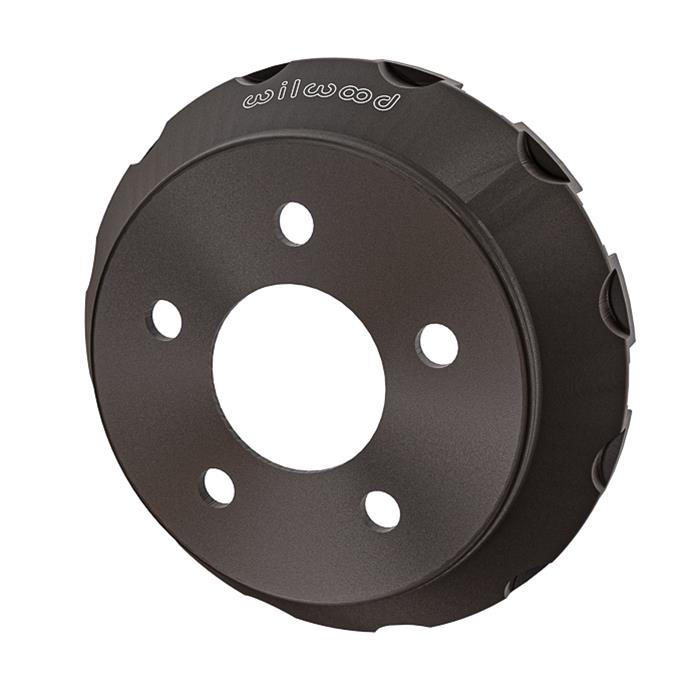

Wilwood Lug Drive Dynamic Hats 170-14910
Wilwood Lug Drive Dynamic Hats 170-14910
29 in stock
Couldn't load pickup availability
Product Description
Wilwood's new Big Brake Dynamic Lug Drive hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.
Wilwood lug drive dynamic hats have a design that allows you to incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats. They help rotors stay flat and run true, while keeping braking response and pedal feel consistent. Pad knock-back and rotor drag are both eliminated as well. These hats cause all problems associated with thermal distortion to be eliminated, including bolt hole alignment issues when trying to reinstall new rotors on previously used hats.
Application Summary
Part Type
description
| market_ |
Wilwood''s new Big Brake Dynamic Lug Drive hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated. |
|---|---|
| product_ |
HAT,LUG DRIVE,7.77 SNAP RING,1.37 OFFSET |
| product_ |
HAT,LUG DRIVE,7.77 SNAP RING,1.37 OFFSET DYNAMIC MT |
| product_ |
BRAKE ROTOR HAT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Lug Drive Dynamic Hats 170-14910 |
| brand | Wilwood Disc Brakes |
| price | 256.6 |
| blurb | Brake Rotor Hats, HAT,LUG DRIVE,7.77 SNAP RING,1.37 OFFSET |
| title | Wilwood Lug Drive Dynamic Hats |
| description | Wilwood lug drive dynamic hats have a design that allows you to incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats. They help rotors stay flat and run true, while keeping braking response and pedal feel consistent. Pad knock-back and rotor drag are both eliminated as well. These hats cause all problems associated with thermal distortion to be eliminated, including bolt hole alignment issues when trying to reinstall new rotors on previously used hats. |
item_row
| handle | WIL-170-14910 |
|---|---|
| item_ |
581921 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
|
| item_ |
170-14910 |
| item_ |
Wilwood 7.77 Snap Ring Lug Drive Hat 1.37 OffSet |
| item_ |
Miscellaneous |
| item_ |
Uncategorized |
| item_ |
889545084368 |
| item_ |
256.60 |
| item_ |
277.13 |
| t14_ |
0 |
| mfr_ |
29 |
| dim_ |
2.00 |
| dim_ |
8.50 |
| dim_ |
8.50 |
| dim_ |
2.75 |
| shipping_ |
14.52 |
| item_ |
wil170-14910 |
| taxonomy_ |
|
| collection_ |
274103042090 |
| collection_ |
Miscellaneous |
| status | Active |
| item_ |
1 |
| item_ |
Uncategorized |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Dynamic lug mount clip and snap ring required for rotor mounting. |
| Quantity | Sold individually. |
| Part Type | Brake Rotor Hats |
| Product Line | Wilwood Lug Drive Dynamic Hats |
| Brake Rotor Hat Color | Black anodized |
| Brake Rotor Hat Material | Aluminum |
| Manufacturer's Part Number | 170-14910 |
| Brake Rotor Hat Bolt Circle | 12 x 7.77 in. |
| Brake Rotor Hat Offset (in.) | 1.37 |
| Brake Rotor Hat Clearance I.D. (in.) | 6.16 |
| Brake Rotor Hat Face Thickness (in.) | 0.28 |
| Brake Rotor Hat Center Hole I.D. (in.) | 2.80 |
| Brake Rotor Hat Stud Hole Diameter (in.) | 0.63 |
