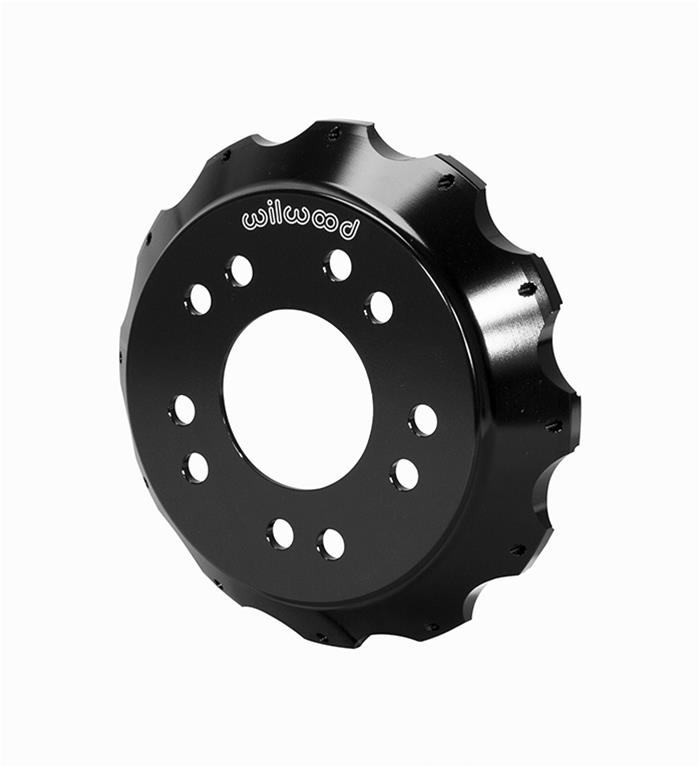

Wilwood HD Fixed Mount Brake Rotor Hats 170-14209
Wilwood HD Fixed Mount Brake Rotor Hats 170-14209
50 in stock
Couldn't load pickup availability
Product Description
GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up.
These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation.
Application Summary
Part Type
description
| market_ |
GT Series Big Brake Flared Bell hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions.Flared Bell Hats are generally used with rotor mount bolt circles of 8.38" and larger. Offsets range from 1.88" to 3.00" for rotor diameters 12.19" and up. |
|---|---|
| product_ |
HAT,12x8.75 BC,5x4.75/5.00 MT,1.38 |
| product_ |
HAT,12x8.75 BC,5x4.75/5.00 MT,1.38 OFFSET,3.06 REG |
| product_ |
BRAKE ROTOR HAT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood HD Fixed Mount Brake Rotor Hats 170-14209 |
| brand | Wilwood Disc Brakes |
| price | 182.42 |
| blurb | HAT,12x8.75 BC,5x4.75/5.00 MT,1.38 |
| title | Wilwood HD Fixed Mount Brake Rotor Hats |
| description | These Wilwood HD fixed mount brake rotor hats are manufactured from a premium-grade aluminum alloy offering high strength, low weight, and show-quality appeal. They feature straight bell construction with a flanged rotor mount ring. These rotor hats provide maximum radial clearance between the caliper body and the hats. They require the use of the correct Wilwood rotor bolt pattern for installation. |
item_row
| handle | WIL-170-14209 |
|---|---|
| item_ |
582209 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
|
| item_ |
170-14209 |
| item_ |
Wilwood 12x8.75 BC 5x4.75/5.00 MT 1.38in Offset 3.06in Center Reg. Big Brake Hat - Flared Bell |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545077346 |
| item_ |
182.42 |
| item_ |
197.01 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
2.10 |
| dim_ |
10.40 |
| dim_ |
9.50 |
| dim_ |
2.80 |
| shipping_ |
14.53 |
| item_ |
wil170-14209 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | This Big Brake, flared bell hat features a 6.58 in. clearance inside diameter, dual bolt circles (see the Applications section), and a counterbored center hole. |
| Quantity | Sold individually. |
| Part Type | Brake Rotor Hats |
| Product Line | Wilwood HD Fixed Mount Brake Rotor Hats |
| Brake Rotor Hat Type | 1/4-28 in. threaded hole |
| Brake Rotor Hat Color | Black |
| Brake Rotor Hat Material | Aluminum |
| Manufacturer's Part Number | 170-14209 |
| Brake Rotor Hat Bolt Circle | 12 x 8.75 in. |
| Brake Rotor Hat Offset (in.) | 1.38 |
| Brake Rotor Hat Face Thickness (in.) | 0.25 |
| Brake Rotor Hat Center Hole I.D. (in.) | 3.06 |
| Brake Rotor Hat Stud Hole Diameter (in.) | 0.52 |
