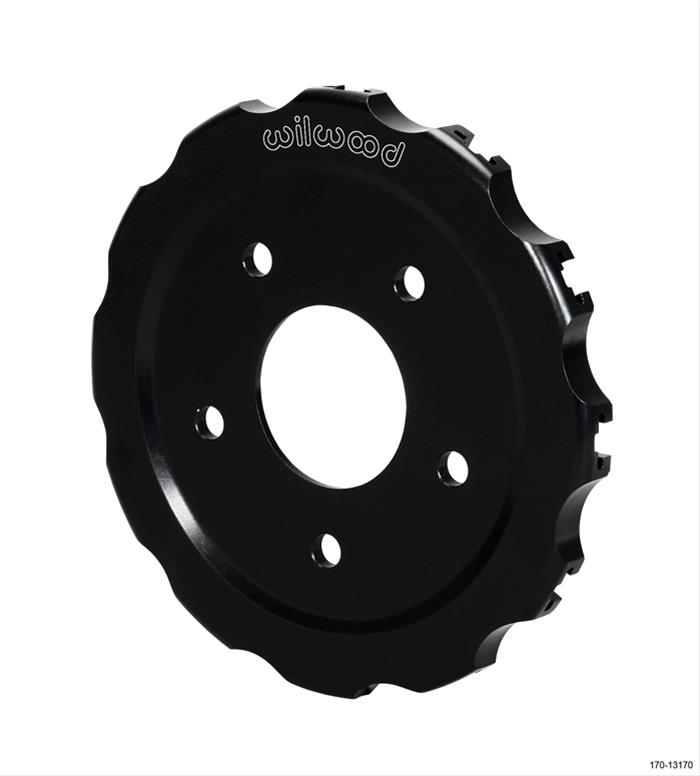

Wilwood Dynamic Bobbin Mount Hats 170-13170
Wilwood Dynamic Bobbin Mount Hats 170-13170
8 in stock
Couldn't load pickup availability
Product Description
Wilwood's new Dynamic Bobbin Mount Hats incorporate a new rotor mounting system that allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion are eliminated.
Wilwood dynamic bobbin mount hats eliminate the problems associated with thermal distortion. They incorporate a rotor mounting system that allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points so the rotors stay flatter and run truer. Also, the brake response and pedal feel remain consistent, and pad knock back, and rotor drag are eliminated. With Wilwood dynamic bobbin mounts, parking brake hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors.
Application Summary
Part Type
description
| market_ |
Wilwood''s new Dynamic Bobbin Mount Hats incorporate a new rotor mounting system that allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion are eliminated. |
|---|---|
| product_ |
HAT,12x8.75 BC,5x4.75 MT,.283 OFFSET |
| product_ |
HAT,12x8.75 BC,5x4.75 MT,.283 OFFSET 2.783 REG,DYNAMIC MT |
| product_ |
BRAKE ROTOR HAT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Dynamic Bobbin Mount Hats 170-13170 |
| brand | Wilwood Disc Brakes |
| price | 288.68 |
| blurb | HAT, ROTOR, DYNAMIC MT, 12x8.75 BC, .290 OFF |
| title | Wilwood Dynamic Bobbin Mount Hats |
| description | Wilwood dynamic bobbin mount hats eliminate the problems associated with thermal distortion. They incorporate a rotor mounting system that allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points so the rotors stay flatter and run truer. Also, the brake response and pedal feel remain consistent, and pad knock back, and rotor drag are eliminated. With Wilwood dynamic bobbin mounts, parking brake hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. |
item_row
| handle | WIL-170-13170 |
|---|---|
| item_ |
139888 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/7d697f141f6b5a9d25469aa69538c4bc.JPG |
| item_ |
170-13170 |
| item_ |
Wilwood Hat-Dynamic BB Front 0.29in Offset 5 x 4.75 - 12 on 8.75in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545042153 |
| item_ |
288.68 |
| item_ |
311.78 |
| t14_ |
0 |
| mfr_ |
22 |
| dim_ |
2.43 |
| dim_ |
9.80 |
| dim_ |
9.80 |
| dim_ |
2.90 |
| shipping_ |
14.53 |
| item_ |
wil170-13170 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Quantity | Sold individually. |
| Part Type | Brake Rotor Hats |
| Product Line | Wilwood Dynamic Bobbin Mount Hats |
| Brake Rotor Hat Type | Bobbin |
| Brake Rotor Hat Color | Black anodized |
| Brake Rotor Hat Material | Aluminum |
| Manufacturer's Part Number | 170-13170 |
| Brake Rotor Hat Bolt Circle | 12 x 8.75 in. |
| Brake Rotor Hat Offset (in.) | 0.29 |
| Brake Rotor Hat Clearance I.D. (in.) | 6.90 |
| Brake Rotor Hat Face Thickness (in.) | 0.30 |
| Brake Rotor Hat Center Hole I.D. (in.) | 2.78 |
| Brake Rotor Hat Stud Hole Diameter (in.) | 0.52 |
