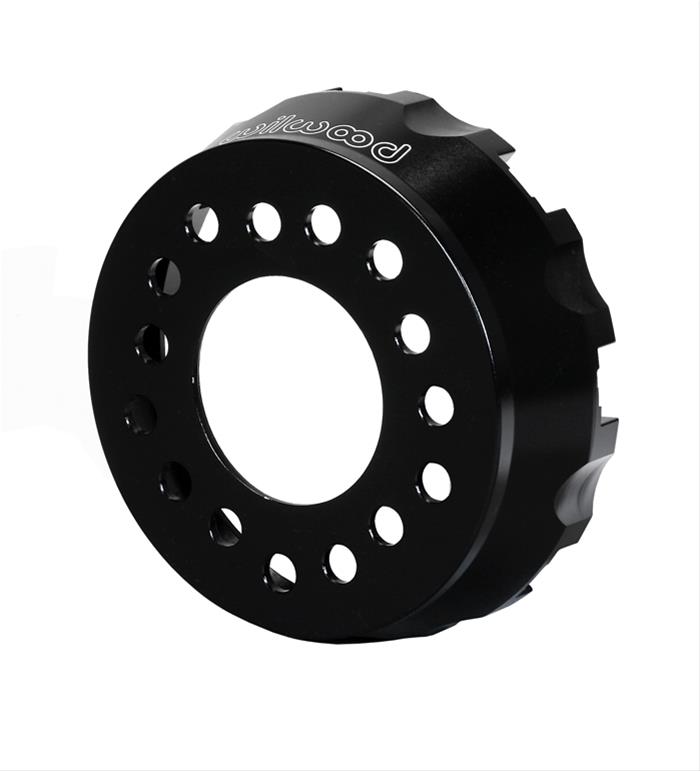

Wilwood Lug Drive Dynamic Hats 170-12431
Wilwood Lug Drive Dynamic Hats 170-12431
22 in stock
Couldn't load pickup availability
Product Description
Wilwood's new Lug Drive Dynamic hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.
Wilwood lug drive dynamic hats have a design that allows you to incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats. They help rotors stay flat and run true, while keeping braking response and pedal feel consistent. Pad knock-back and rotor drag are both eliminated as well. These hats cause all problems associated with thermal distortion to be eliminated, including bolt hole alignment issues when trying to reinstall new rotors on previously used hats.
Application Summary
Part Type
description
| market_ |
Wilwood''s new Lug Drive Dynamic hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated. |
|---|---|
| product_ |
HAT,DRAG,8x7.00 BC,5x4.75/5.00 MT,1.96 |
| product_ |
HAT,DRAG,8x7.00 BC,5x4.75/5.00 MT,1.96 OFFSET,3.064 REG,DYNAMIC MT,11/16 STUD |
| product_ |
BRAKE ROTOR HAT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Lug Drive Dynamic Hats 170-12431 |
| brand | Wilwood Disc Brakes |
| price | 175.13 |
| blurb | Brake Rotor Hat, Lug Drive, Dynamic, Aluminum, Black, 5 x 4.750/5.000 in. Bolt Pattern, Each |
| title | Wilwood Lug Drive Dynamic Hats |
| description | Wilwood lug drive dynamic hats have a design that allows you to incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats. They help rotors stay flat and run true, while keeping braking response and pedal feel consistent. Pad knock-back and rotor drag are both eliminated as well. These hats cause all problems associated with thermal distortion to be eliminated, including bolt hole alignment issues when trying to reinstall new rotors on previously used hats. |
item_row
| handle | WIL-170-12431 |
|---|---|
| item_ |
139949 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/0f7db0c79c51181af352a6a5660dea7f.JPG |
| item_ |
170-12431 |
| item_ |
Wilwood Hat-Dynamic Drag 1.96in Offset 11/16in Studs - 8 on 7.00in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545041835 |
| item_ |
175.13 |
| item_ |
189.14 |
| t14_ |
0 |
| mfr_ |
20 |
| dim_ |
1.60 |
| dim_ |
9.10 |
| dim_ |
8.80 |
| dim_ |
2.60 |
| shipping_ |
14.52 |
| item_ |
wil170-12431 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Includes the snap-ring for installation. Used for drag racing applications. |
| Quantity | Sold individually. |
| Part Type | Brake Rotor Hats |
| Product Line | Wilwood Lug Drive Dynamic Hats |
| Brake Rotor Hat Color | Black |
| Brake Rotor Hat Material | Aluminum |
| Manufacturer's Part Number | 170-12431 |
| Brake Rotor Hat Bolt Circle | 8 x 7.00 in. |
| Brake Rotor Hat Offset (in.) | 1.96 |
| Brake Rotor Hat Clearance I.D. (in.) | 6.20 |
| Brake Rotor Hat Face Thickness (in.) | 0.25 |
| Brake Rotor Hat Center Hole I.D. (in.) | 3.06 |
| Brake Rotor Hat Stud Hole Diameter (in.) | 0.70 |
