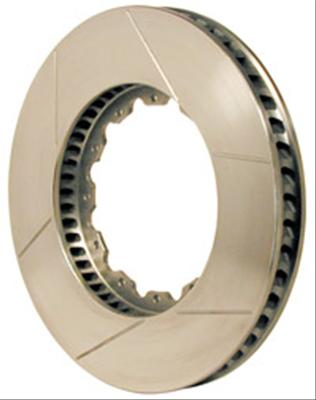

Wilwood GT Series Curved Vane Rotors 160-9959
Wilwood GT Series Curved Vane Rotors 160-9959
41 in stock
Couldn't load pickup availability
Product Description
GT-48 curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
Wilwood GT Series curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy-wall rotors are the keys to preventing heat-fade—and realizing a long service life from the rotors and pads. All rotors are cast from premium-grade, long-grain carbon iron for extended wear, thermal stability, and resistance to distortion. Wilwood GT rotors are fully detail-machined to eliminate stress points and unnecessary weight away from the pad sweep face. Each rotor faces and O.D. is precision-turned to less than .001 in. for flatness, parallelism, and runout. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics—and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic-balanced to offer vibration-free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme-braking short tracks and road course competition.
Application Summary
Part Type
description
| market_ |
GT-48 curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. |
|---|---|
| product_ |
ROTOR1288-081BK825-000CJCXXXXR |
| product_ |
ROTOR1288-081BK825-000CJCXXXXR 12x8.75,48 CVANE,GT |
| product_ |
BRAKE ROTOR |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood GT Series Curved Vane Rotors 160-9959 |
| brand | Wilwood Disc Brakes |
| price | 300.7 |
| blurb | Brake Rotor, GT Series, Carbon Iron, Natural, Drilled, Slotted, Passenger Side, Each |
| title | Wilwood GT Series Curved Vane Rotors |
| description | Wilwood GT Series curved vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy-wall rotors are the keys to preventing heat-fade—and realizing a long service life from the rotors and pads. All rotors are cast from premium-grade, long-grain carbon iron for extended wear, thermal stability, and resistance to distortion. Wilwood GT rotors are fully detail-machined to eliminate stress points and unnecessary weight away from the pad sweep face. Each rotor faces and O.D. is precision-turned to less than .001 in. for flatness, parallelism, and runout. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics—and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic-balanced to offer vibration-free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme-braking short tracks and road course competition. |
item_row
| handle | WIL-160-9959 |
|---|---|
| item_ |
140089 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/d790afae1335e06dd30dccb4251bb882.JPG |
| item_ |
160-9959 |
| item_ |
Wilwood Rotor-GT48 Vented Iron-RH 12.88 x .810 - 12 on 8.75in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545041132 |
| item_ |
300.70 |
| item_ |
324.75 |
| t14_ |
3 |
| mfr_ |
50 |
| dim_ |
10.20 |
| dim_ |
15.10 |
| dim_ |
14.40 |
| dim_ |
1.60 |
| shipping_ |
14.52 |
| item_ |
wil160-9959 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | 2.510 in. offset. Features 12 x 8.75 in. rotor bolt circle. |
| Quantity | Sold individually. |
| Part Type | Brake Rotors |
| Rotor Style | Cross-drilled and slotted surface |
| Product Line | Wilwood GT Series Curved Vane Rotors |
| Rotor Finish | Natural |
| Rotor Material | Iron |
| Rotor Construction | Solid |
| Intended for Street Use | No |
| Nominal Thickness (in.) | 0.810 in. |
| Manufacturer's Part Number | 160-9959 |
| For Use with Stock Calipers | No |
| Rotor Outside Diameter (in.) | 12.88 in. |
| Brake Rotor Bolt Pattern (mm) | 12 x 222.25mm |
| Brake Rotor Bolt Pattern (in.) | 12 x 8.75 in. |
