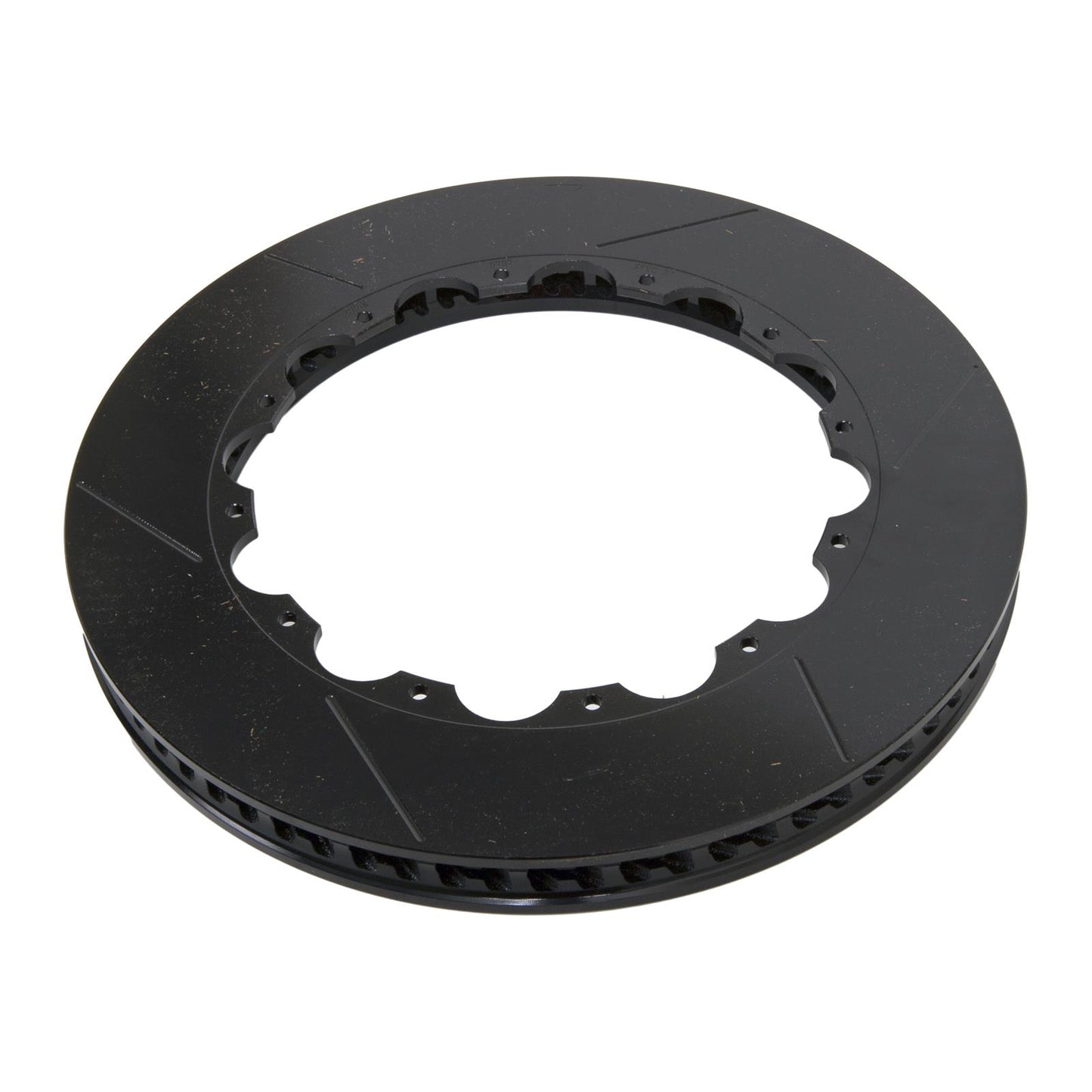

Wilwood GT 72 Series Curved Vane Rotors 160-9787-GTB
Wilwood GT 72 Series Curved Vane Rotors 160-9787-GTB
50 in stock
Couldn't load pickup availability
Product Description
Wilwood's GT & GTB 72 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern.
Wilwood GT 72 Series curved vane Spec-37 Dynamic lug mount rotors are machined from a proprietary iron alloy developed to withstand extreme temperatures—with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme-duty military-spec rotors that are manufactured by Wilwood. Combined with the proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you're assured the smoothest braking available. GTB rotors also feature a black e-coat finish for applications where corrosion resistance is a concern. Wilwood offers the driver and passenger side GT 72 Series curved vane rotors separately.
Application Summary
Part Type
description
| market_ |
Wilwood''s GT & GTB 72 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. |
|---|---|
| product_ |
ROTOR1425-125BM863-000EJCXXXXR |
| product_ |
ROTOR1425-125BM863-000EJCXXXXR 12x9.19,72 CVANE,GT,BLACK,SPEC-37 |
| product_ |
BRAKE ROTOR |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood GT 72 Series Curved Vane Rotors 160-9787-GTB |
| brand | Wilwood Disc Brakes |
| price | 479.99 |
| blurb | ROTOR1425-125BM863-000EJCXXXXR |
| title | Wilwood GT 72 Series Curved Vane Rotors |
| description | Wilwood GT 72 Series curved vane Spec-37 Dynamic lug mount rotors are machined from a proprietary iron alloy developed to withstand extreme temperatures—with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme-duty military-spec rotors that are manufactured by Wilwood. Combined with the proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you're assured the smoothest braking available. GTB rotors also feature a black e-coat finish for applications where corrosion resistance is a concern. Wilwood offers the driver and passenger side GT 72 Series curved vane rotors separately. |
item_row
| handle | WIL-160-9787-GTB |
|---|---|
| item_ |
140088 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/bae2b6f1d44f35d92089c548da4574d8.JPG |
| item_ |
160-9787-GTB |
| item_ |
Wilwood Rotor-SV-GT 72 SPC-37 -RH-BLK 14.25 x 1.25 - 12 on 9.19in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545076523 |
| item_ |
479.99 |
| item_ |
518.39 |
| t14_ |
2 |
| mfr_ |
26 |
| dim_ |
19.70 |
| dim_ |
15.30 |
| dim_ |
14.40 |
| dim_ |
1.40 |
| shipping_ |
14.52 |
| item_ |
wil160-9787-GTB |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Features include a 72-vane design, no offset, 10.00 in. far side inside diameter, 0.251 in. rotor mount hole size, 1.25 in. width, and Spec-37 heavy wall castings. |
| Quantity | Sold individually. |
| Part Type | Brake Rotors |
| Rotor Style | Slotted surface |
| Product Line | Wilwood GT 72 Series Curved Vane Rotors |
| Rotor Finish | Black E-Coat |
| Rotor Material | Iron |
| Rotor Construction | Vented |
| Nominal Thickness (mm) | 31.75mm |
| Intended for Street Use | Yes |
| Nominal Thickness (in.) | 1.250 in. |
| Manufacturer's Part Number | 160-9787-GTB |
| For Use with Stock Calipers | No |
| Rotor Outside Diameter (in.) | 14.25 in. |
| Brake Rotor Bolt Pattern (mm) | 12 x 233.43mm |
| Brake Rotor Bolt Pattern (in.) | 12 x 9.19 in. |
