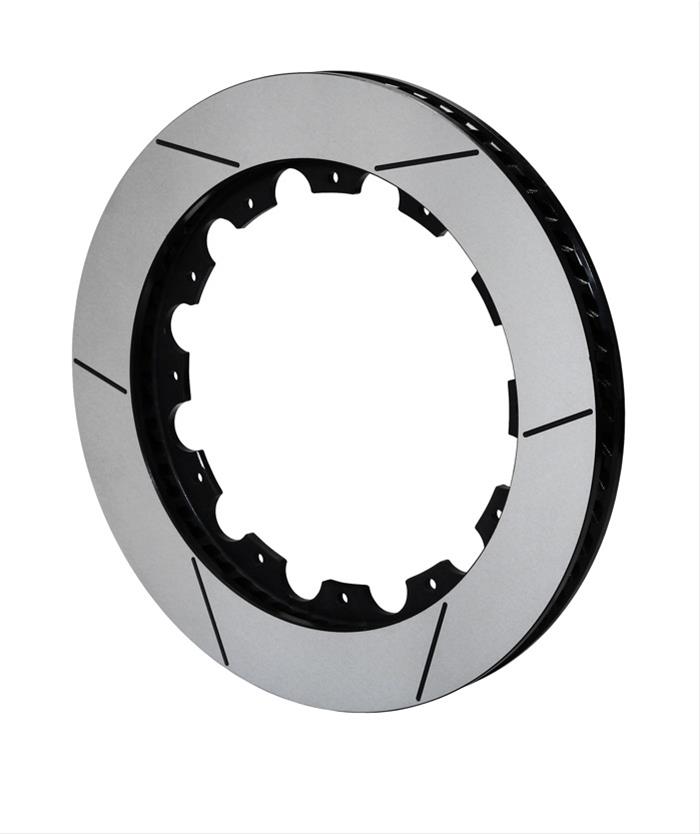

Wilwood SV-GT Series Directional Vane Brake Rotors 160-8954-GTB
Wilwood SV-GT Series Directional Vane Brake Rotors 160-8954-GTB
36 in stock
Couldn't load pickup availability
Product Description
Wilwood's GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
Wilwood SV-GT Series directional vane brake rotors use the increased cooling capacity and improved structural stability of the staggered vane design. They are manufactured from premium-grade, long-grain carbon iron for long wear, high-thermal conductivity, and extreme resistance to distortion. Wilwood SV-GT Series directional vane brake rotors are fully machined to eliminate stress points and maintain less than .001 in. flatness, parallelism, and runout over the entire rotor. Their unique, asymmetrical face groove pattern provides smoother engagement through reduced harmonics and even pad wear from improved thermal balanced rotor faces. The Wilwood SV-GT Series directional vane brake rotors are individually spin-balanced to ensure vibration-free performance at all speeds.
Application Summary
Part Type
description
| market_ |
Wilwood''s GT & GTB 60 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest, vibration free performance at any speed. GTB rotor have additional black e-coat finish applied for applications where corrosion resistance is concern. GT 60 Curved Vane rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. |
|---|---|
| product_ |
ROTOR1600-138BE100-000DJCXXXXL |
| product_ |
ROTOR1600-138BE100-000DJCXXXXL 12x10.75,60 CVANE,GT,BLACK,SPEC-37 |
| product_ |
BRAKE ROTOR |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood SV-GT Series Directional Vane Brake Rotors 160-8954-GTB |
| brand | Wilwood Disc Brakes |
| price | 591.46 |
| blurb | Brake Rotor, SV-GT Series Directional Vane, Driver Side, Slotted Surface, Carbon Iron, Black E-coat, Each |
| title | Wilwood SV-GT Series Directional Vane Brake Rotors |
| description | Wilwood SV-GT Series directional vane brake rotors use the increased cooling capacity and improved structural stability of the staggered vane design. They are manufactured from premium-grade, long-grain carbon iron for long wear, high-thermal conductivity, and extreme resistance to distortion. Wilwood SV-GT Series directional vane brake rotors are fully machined to eliminate stress points and maintain less than .001 in. flatness, parallelism, and runout over the entire rotor. Their unique, asymmetrical face groove pattern provides smoother engagement through reduced harmonics and even pad wear from improved thermal balanced rotor faces. The Wilwood SV-GT Series directional vane brake rotors are individually spin-balanced to ensure vibration-free performance at all speeds. |
item_row
| handle | WIL-160-8954-GTB |
|---|---|
| item_ |
139965 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/396460883b9d44f2f5ac7ec1bca0d05b.JPG |
| item_ |
160-8954-GTB |
| item_ |
Wilwood Rotor-GT60 SPC-37-LH-BLK 16.00 x 1.38 - 12 on 10.75in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545076516 |
| item_ |
591.46 |
| item_ |
638.78 |
| t14_ |
2 |
| mfr_ |
0 |
| dim_ |
24.50 |
| dim_ |
19.00 |
| dim_ |
18.50 |
| dim_ |
2.30 |
| shipping_ |
14.83 |
| item_ |
wil160-8954-GTB |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Features 12 x 10.75 in. rotor bolt circle. |
| Quantity | Sold individually. |
| Part Type | Brake Rotors |
| Rotor Style | Slotted surface |
| Product Line | Wilwood SV-GT Series Directional Vane Brake Rotors |
| Rotor Finish | Black E-Coat |
| Rotor Material | Iron |
| Rotor Construction | Vented |
| Intended for Street Use | Yes |
| Nominal Thickness (in.) | 1.380 in. |
| Manufacturer's Part Number | 160-8954-GTB |
| For Use with Stock Calipers | No |
| Rotor Outside Diameter (in.) | 16.00 in. |
| Brake Rotor Bolt Pattern (mm) | 12 x 273.05mm |
| Brake Rotor Bolt Pattern (in.) | 12 x 10.75 in. |
