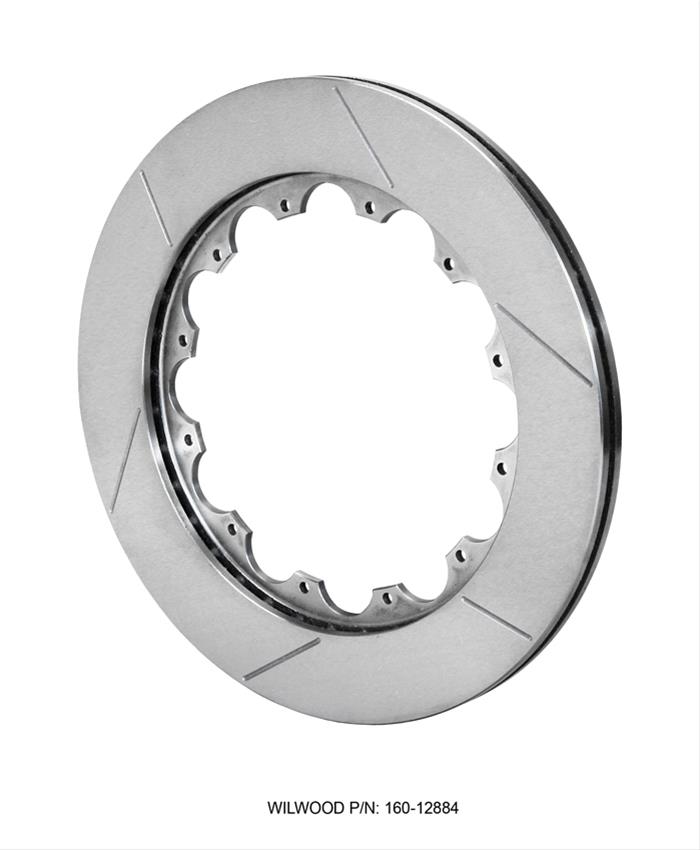

Wilwood GT Series Straight Vane Rotors 160-12884
Wilwood GT Series Straight Vane Rotors 160-12884
50 in stock
Couldn't load pickup availability
Product Description
GT-36 straight vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT-36 rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition.
Wilwood GT Series straight vane rotors provide high-value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand parts. Wilwood's modern manufacturing capability, combined with large-scale economies, makes it possible to offer this level of quality and performance at such an affordable price. They're cast from premium-grade, long-grain carbon iron. This material exhibits long wear, high thermal stability, and excellent resistance to distortion in extreme heat. Modern foundry and machining techniques hold close tolerances on face and vane thickness. Combining the correct face thickness with a vane casting provides superior heat management and long service life, with low rotating and unsprung weight. An asymmetrical GT groove pattern and the straight vane design also make it possible to use the same rotor on left or right hand mounting locations.
Application Summary
Part Type
description
| market_ |
GT-36 straight vane rotors are built for the extreme conditions of professional motorsports. The superior heat absorption and dissipation characteristics of these heavy wall directional vane rotors are the keys to preventing heat fade and realizing long service life from the rotors and pads. All rotors are cast from premium grade, long grain carbon iron for long wear, thermal stability, and resistance to distortion. Every GT-36 rotor is fully detail machined to eliminate stress points and unnecessary weight away from the pad sweep face. The faces and O.D. are precision turned to less than .001" for flatness, parallelism, and run-out. An asymmetrical face slot pattern provides smoother engagement through reduced harmonics and improved thermal balance between the I.D. and O.D. of the rotor. Every rotor is then individually dynamic balanced to provide vibration free performance at any speed. These rotors provide the highest cooling capacity and longest service life for extreme braking short tracks and road course competition. |
|---|---|
| product_ |
ROTOR1400-081BK825-000BJGXXXXN |
| product_ |
ROTOR1400-081BK825-000BJGXXXXN 14.00x.81,12x8.75 BC,GT,36 VANE |
| product_ |
BRAKE ROTOR |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood GT Series Straight Vane Rotors 160-12884 |
| brand | Wilwood Disc Brakes |
| price | 300.7 |
| blurb | Brake Rotor, GT Series, Iron, Natural, Slotted, 36-Vane, Each |
| title | Wilwood GT Series Straight Vane Rotors |
| description | Wilwood GT Series straight vane rotors provide high-value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand parts. Wilwood's modern manufacturing capability, combined with large-scale economies, makes it possible to offer this level of quality and performance at such an affordable price. They're cast from premium-grade, long-grain carbon iron. This material exhibits long wear, high thermal stability, and excellent resistance to distortion in extreme heat. Modern foundry and machining techniques hold close tolerances on face and vane thickness. Combining the correct face thickness with a vane casting provides superior heat management and long service life, with low rotating and unsprung weight. An asymmetrical GT groove pattern and the straight vane design also make it possible to use the same rotor on left or right hand mounting locations. |
item_row
| handle | WIL-160-12884 |
|---|---|
| item_ |
140298 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/0941ebcc953be6f66bf39c730e1a35c3.JPG |
| item_ |
160-12884 |
| item_ |
Wilwood Rotor-GTS36 Vented Iron-LH 14.00 x .810 - 12 on 8.75in |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545038705 |
| item_ |
300.70 |
| item_ |
324.75 |
| t14_ |
6 |
| mfr_ |
50 |
| dim_ |
13.40 |
| dim_ |
15.00 |
| dim_ |
14.20 |
| dim_ |
1.40 |
| shipping_ |
14.83 |
| item_ |
wil160-12884 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Replacement 36 vane rotor for use with 12 bolt 8.750 in. bolt pattern hat. |
| Quantity | Sold individually. |
| Part Type | Brake Rotors |
| Rotor Style | Slotted surface |
| Product Line | Wilwood GT Series Straight Vane Rotors |
| Rotor Finish | Natural |
| Rotor Material | Iron |
| Rotor Construction | Vented |
| Intended for Street Use | No |
| Nominal Thickness (in.) | 0.810 in. |
| Manufacturer's Part Number | 160-12884 |
| For Use with Stock Calipers | No |
| Rotor Outside Diameter (in.) | 14.00 in. |
| Brake Rotor Bolt Pattern (mm) | 12 x 222.25mm |
| Brake Rotor Bolt Pattern (in.) | 12 x 8.75 in. |
