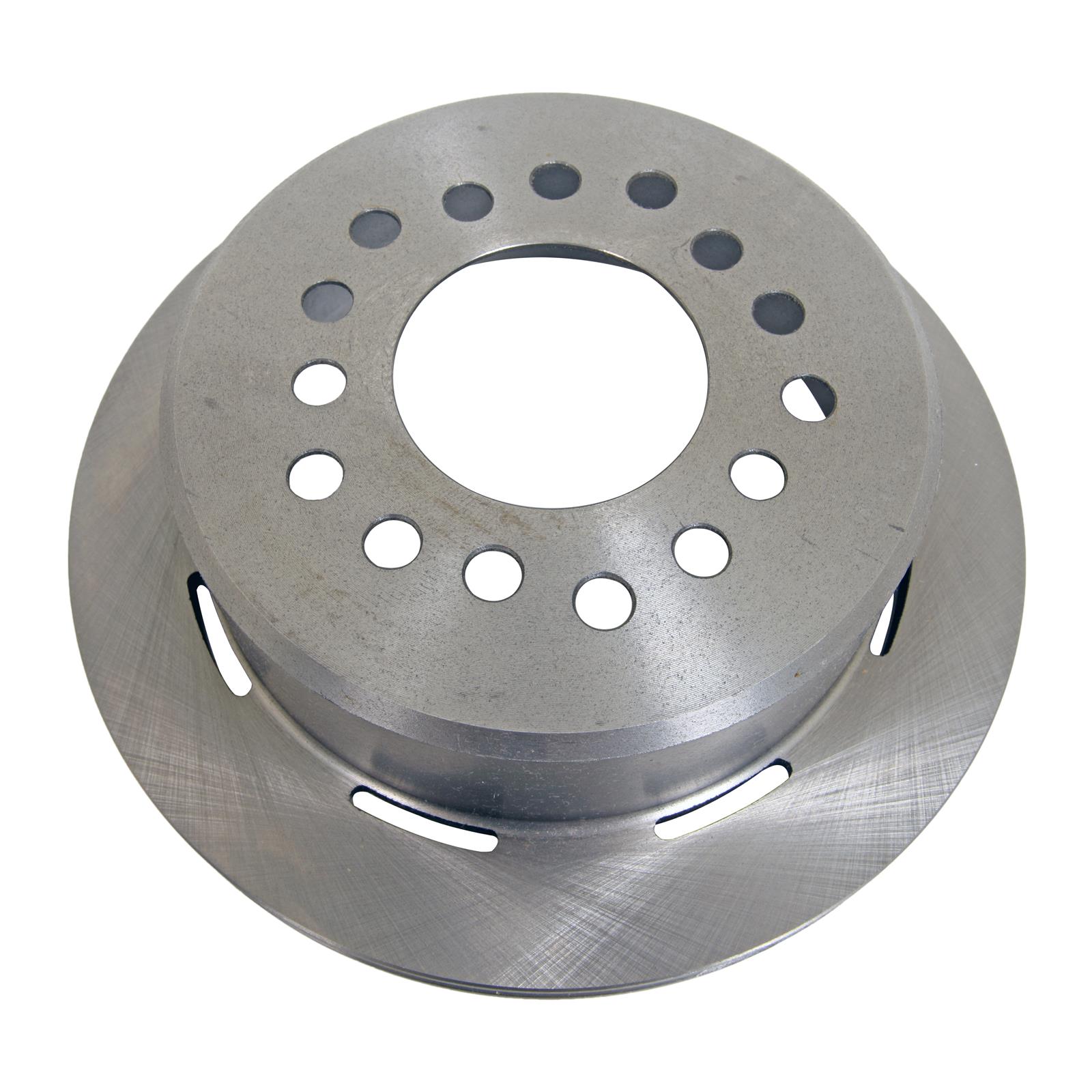

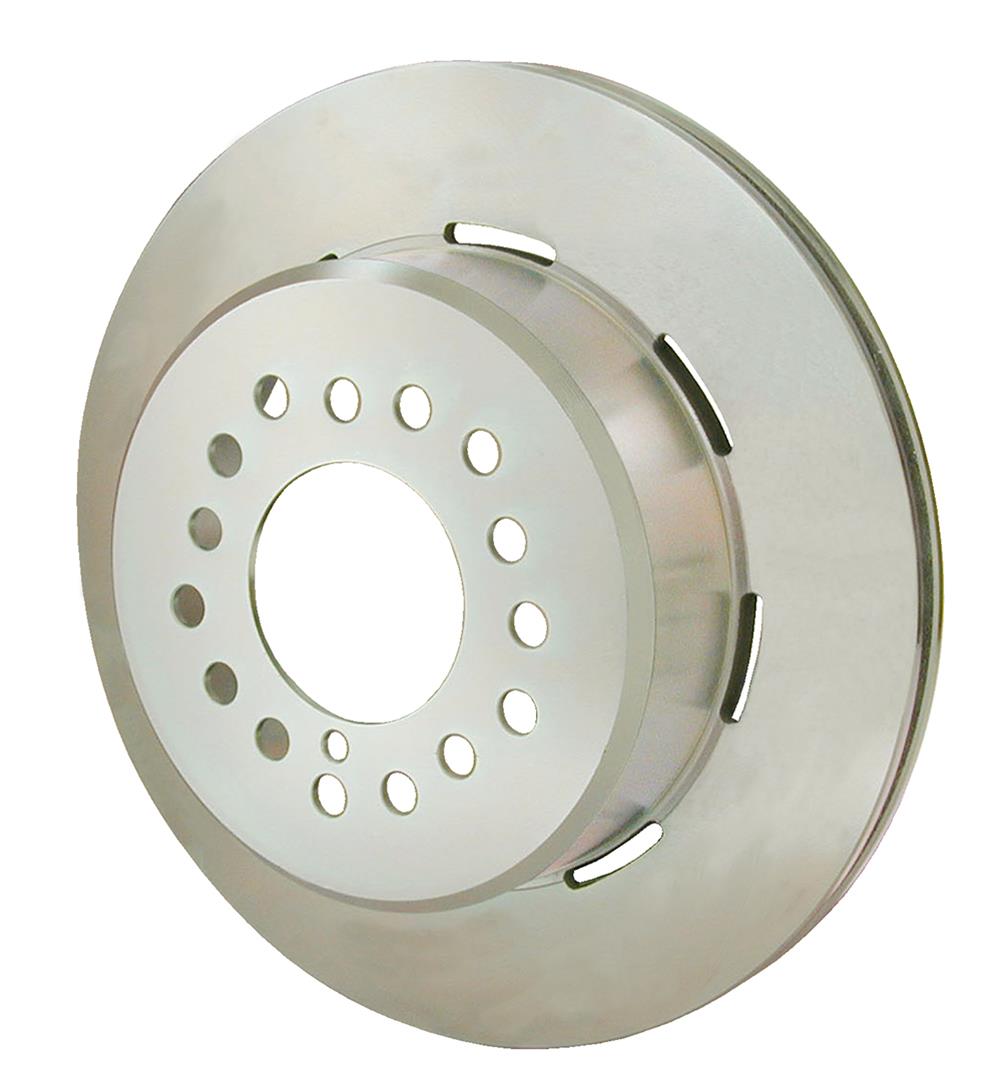

Wilwood Ultralite HP 32 Vane Rotors 160-11365
Wilwood Ultralite HP 32 Vane Rotors 160-11365
50 in stock
Couldn't load pickup availability
Product Description
HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.
Bolt on the ultra-light high performance of Wilwood HP 32 vane rotors. These straight vane rotors offer an excellent balance of efficient cooling and long service life with low rotating and unsprung weight for hard-braking dirt tracks or rear-axle service on pavement cars. Wilwood HP 32 vane rotors are cast from premium-grade, long-grain carbon iron--a material that exhibits long wear, high thermal stability, and resistance to distortion in high heat. And the straight vanes make it possible to use the same rotor on the left or right hand mounting brackets. Experience added performance and smoother operation with precision Wilwood Ultralite HP 32 vane rotors.
Application Summary
Part Type
description
| market_ |
HP rotors are close tolerance machined with smooth turned pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use. |
|---|---|
| product_ |
ROTOR1100-081AB306-232MBEXXXXN |
| product_ |
ROTOR1100-081AB306-232MBEXXXXN MULTI,D/D,ULHP |
| product_ |
BRAKE ROTOR |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Ultralite HP 32 Vane Rotors 160-11365 |
| brand | Wilwood Disc Brakes |
| price | 222.9 |
| blurb | Brake Rotor, Ultralite HP, 32 Vane, 2.32 in. Offset, Solid Surface, Carbon Iron, Natural, 0.810 in. Thick, 11 in. O.D., Each |
| title | Wilwood Ultralite HP 32 Vane Rotors |
| description | Bolt on the ultra-light high performance of Wilwood HP 32 vane rotors. These straight vane rotors offer an excellent balance of efficient cooling and long service life with low rotating and unsprung weight for hard-braking dirt tracks or rear-axle service on pavement cars. Wilwood HP 32 vane rotors are cast from premium-grade, long-grain carbon iron--a material that exhibits long wear, high thermal stability, and resistance to distortion in high heat. And the straight vanes make it possible to use the same rotor on the left or right hand mounting brackets. Experience added performance and smoother operation with precision Wilwood Ultralite HP 32 vane rotors. |
item_row
| handle | WIL-160-11365 |
|---|---|
| item_ |
139086 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/76b9ca5ec94e7f977589c0f87fb3fa9a.JPG |
| item_ |
160-11365 |
| item_ |
Wilwood Rotor-2.32in Offset 11.00 x .810 - 5 Lug |
| item_ |
Brake Rotors |
| item_ |
Brake Rotors - 2 Piece |
| item_ |
889545037913 |
| item_ |
222.90 |
| item_ |
240.74 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
12.30 |
| dim_ |
13.00 |
| dim_ |
13.00 |
| dim_ |
4.20 |
| shipping_ |
14.83 |
| item_ |
wil160-11365 |
| taxonomy_ |
5367 |
| collection_ |
273461477418 |
| collection_ |
Brake Rotors |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Disc brake with drum internal parking brake kits with 2.32 in. offset. |
| Quantity | Sold individually. |
| Part Type | Brake Rotors |
| Rotor Style | Solid surface |
| Product Line | Wilwood Ultralite HP 32 Vane Rotors |
| Rotor Finish | Natural |
| Rotor Material | Iron |
| Rotor Construction | Vented |
| Intended for Street Use | Yes |
| Nominal Thickness (in.) | 0.810 in. |
| Manufacturer's Part Number | 160-11365 |
| For Use with Stock Calipers | Yes |
| Rotor Outside Diameter (in.) | 11.00 in. |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
