Wilwood TC6R Big Brake Truck Rear Brake Kits 140-9405-DR
Wilwood TC6R Big Brake Truck Rear Brake Kits 140-9405-DR
6 in stock
Couldn't load pickup availability
Tags
Product Description

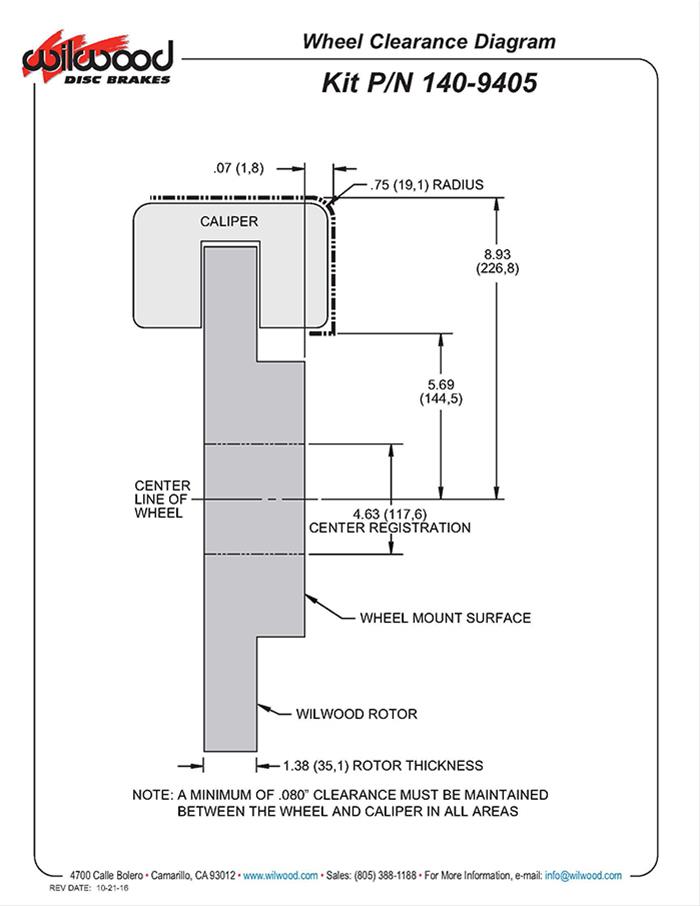

TC6R rear axle disc brake kits with 16" rotors are the ultimate big brake solution for highly customized and modified trucks or SUV's upgraded to larger than stock wheels. TC6R kits can fit many 20"and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.
Wilwood TC6R Big Brake truck rear brake kits offer your rig safe stopping. When you're pulling a lot of weight, you need brakes that you can count on to do the job. TC6R truck kits are Wilwood's big brake solution for highly customized and/or modified trucks and SUVs with big wheels. These rear brake kits come with TC6R forged aluminum radial mount calipers with six stainless steel pistons, SmartPads BP-10 compound pads, and oversized SRP or GT rotors matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. Take control of your big wheels--replace your factory brakes with the safe and sure stopping power of Wilwood TC6R Big Brake truck rear brake kits.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
TC6R rear axle disc brake kits with 16" rotors are the ultimate big brake solution for highly customized and modified trucks or SUV''s upgraded to larger than stock wheels. TC6R kits can fit many 20"and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles. |
|---|---|
| product_ |
KIT,REAR,H2/2500,99-UP,4.63 |
| product_ |
KIT,REAR,H2/2500,99-UP,4.63 CTR REG,16.00,PERF DRILLED,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood TC6R Big Brake Truck Rear Brake Kits 140-9405-DR |
| brand | Wilwood Disc Brakes |
| price | 2811.2 |
| blurb | Disc Brake Kit, TC6R Big Brakes, Rear, Slotted/Drilled Rotor, 6-Piston Caliper, Red, GM, Kit |
| title | Wilwood TC6R Big Brake Truck Rear Brake Kits |
| description | Wilwood TC6R Big Brake truck rear brake kits offer your rig safe stopping. When you're pulling a lot of weight, you need brakes that you can count on to do the job. TC6R truck kits are Wilwood's big brake solution for highly customized and/or modified trucks and SUVs with big wheels. These rear brake kits come with TC6R forged aluminum radial mount calipers with six stainless steel pistons, SmartPads BP-10 compound pads, and oversized SRP or GT rotors matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. Take control of your big wheels--replace your factory brakes with the safe and sure stopping power of Wilwood TC6R Big Brake truck rear brake kits. |
item_row
| handle | WIL-140-9405-DR |
|---|---|
| item_ |
137293 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/7768189c02d5cf2bb7c472a2e4e27875.JPG |
| item_ |
140-9405-DR |
| item_ |
Wilwood TC6R Rear Kit 16.00in Drilled Red 1999-2010 GM H2 / 2500 4.63 Cntr |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545031782 |
| item_ |
2811.20 |
| item_ |
3148.54 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
44.60 |
| dim_ |
16.40 |
| dim_ |
14.00 |
| dim_ |
13.70 |
| shipping_ |
16.82 |
| item_ |
wil140-9405-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Retains full function of factory parking brake. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood TC6R Big Brake Truck Rear Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 16.00 in./406.40mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-9405-DR |
| Rear Rotor Thickness (in.) | 1.38 |
| Rear Caliper Piston Quantity | Six |
| Brake Rotor Bolt Pattern (mm) | 8 x 165.10mm |
| Brake Rotor Bolt Pattern (in.) | 8 x 6.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 20 in. |
