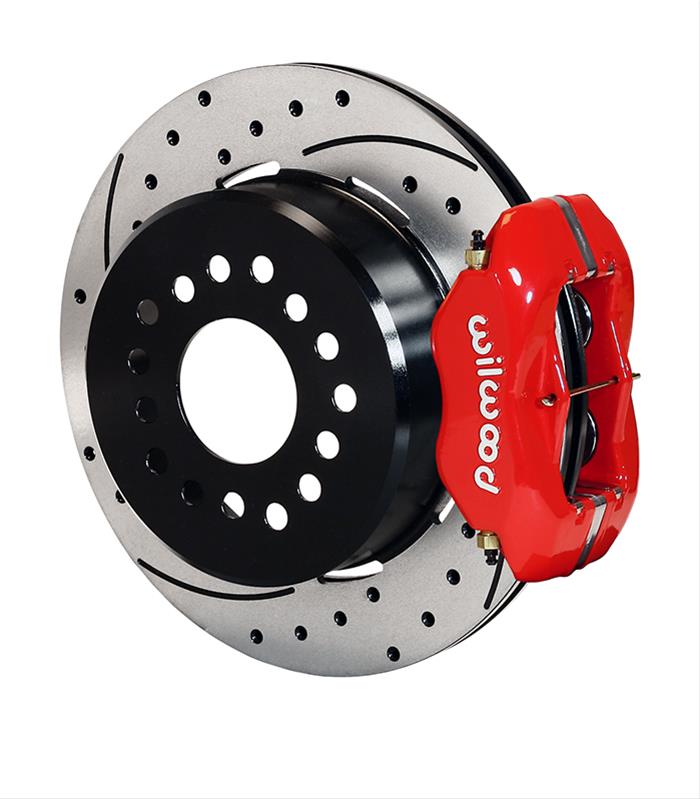

Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-9315-DR
Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-9315-DR
33 in stock
Couldn't load pickup availability
Product Description
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

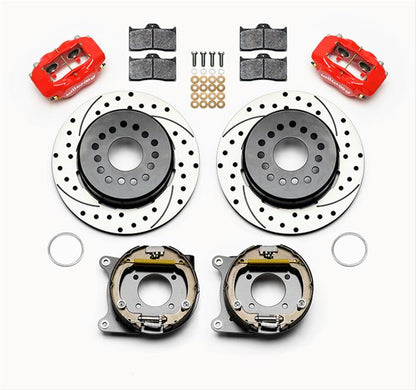

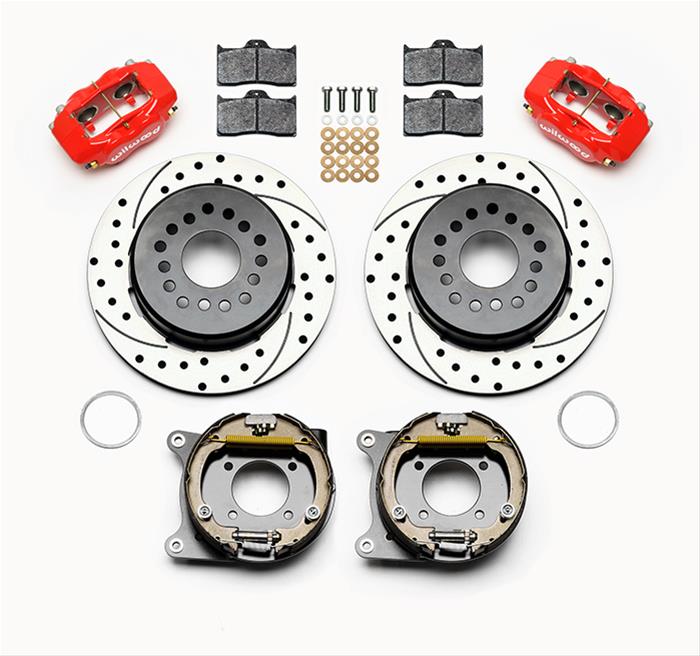

Do you want to get rid of your old-fashioned rear drums and upgrade to modern disc brakes without giving up the parking brake? Wilwood has the answer with their high performance Forged Dynalite Pro series disc rear parking brake kits. They combine forged, 4-piston, forged billet Dynalite calipers and big solid or vented iron rotors with integral parking brake "hats." This gives you big-time stopping power and still maintains the parking function. These kits also include preassembled parking brake mechanisms, PolyMatrix brake pads, mounting brackets, and all necessary installation hardware.
Application Summary
Part Type
description
| market_ |
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,12 BOLT CHEVY,2.75 |
| product_ |
KIT,REAR,DISC/DRUM,12 BOLT CHEVY,2.75 OFFSET,.81 ROTOR,STAGGERED MT,DRILL,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits 140-9315-DR |
| brand | Wilwood Disc Brakes |
| price | 1119.61 |
| blurb | Disc Brakes, Rear, Pro Series, Drilled Rotors, 4-Piston Calipers, 12-Bolt Chevy Passenger, Kit |
| title | Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits |
| description | Do you want to get rid of your old-fashioned rear drums and upgrade to modern disc brakes without giving up the parking brake? Wilwood has the answer with their high performance Forged Dynalite Pro series disc rear parking brake kits. They combine forged, 4-piston, forged billet Dynalite calipers and big solid or vented iron rotors with integral parking brake "hats." This gives you big-time stopping power and still maintains the parking function. These kits also include preassembled parking brake mechanisms, PolyMatrix brake pads, mounting brackets, and all necessary installation hardware. |
item_row
| handle | WIL-140-9315-DR |
|---|---|
| item_ |
136607 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/ccf2c989e84d2b2a671894395761306e.JPG |
| item_ |
140-9315-DR |
| item_ |
Wilwood Forged Dynalite P/S Park Brake Kit Drilled Red 12 Bolt 2.75in offset Staggered Shock |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545031737 |
| item_ |
1119.61 |
| item_ |
1253.97 |
| t14_ |
3 |
| mfr_ |
0 |
| dim_ |
50.10 |
| dim_ |
16.80 |
| dim_ |
13.80 |
| dim_ |
13.70 |
| shipping_ |
29.81 |
| item_ |
wil140-9315-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.750 in. |
| Product Line | Wilwood Forged Dynalite Pro Series Rear Disc Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Special Attention | For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications. Hats drilled for 7/16 in., 1/2 in. and 12mm studs. Kit designed for staggered shock mount rear ends: R/H caliper is rear mount, L/H caliper is front mount. |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Solid |
| Master Cylinder Included | No |

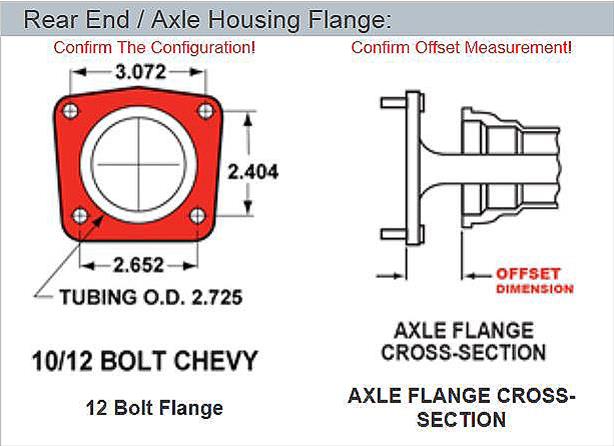

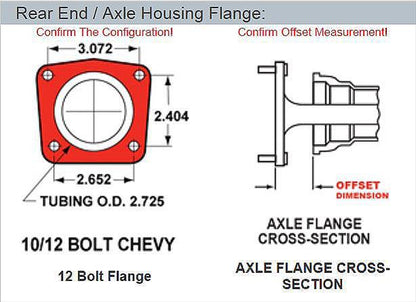

| Axle Housing Flange Style | 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.) |
| Manufacturer's Part Number | 140-9315-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | 5 x 120.65mm |
| Differential Case Design Type | GM 8.875 in. (12-bolt), passenger car |
| Brake Rotor Bolt Pattern (in.) | 5 x 4.75 in. |
