Wilwood Superlite 4R Rear Big Brake Kits 140-9216-DR
Wilwood Superlite 4R Rear Big Brake Kits 140-9216-DR
20 in stock
Couldn't load pickup availability
Product Description

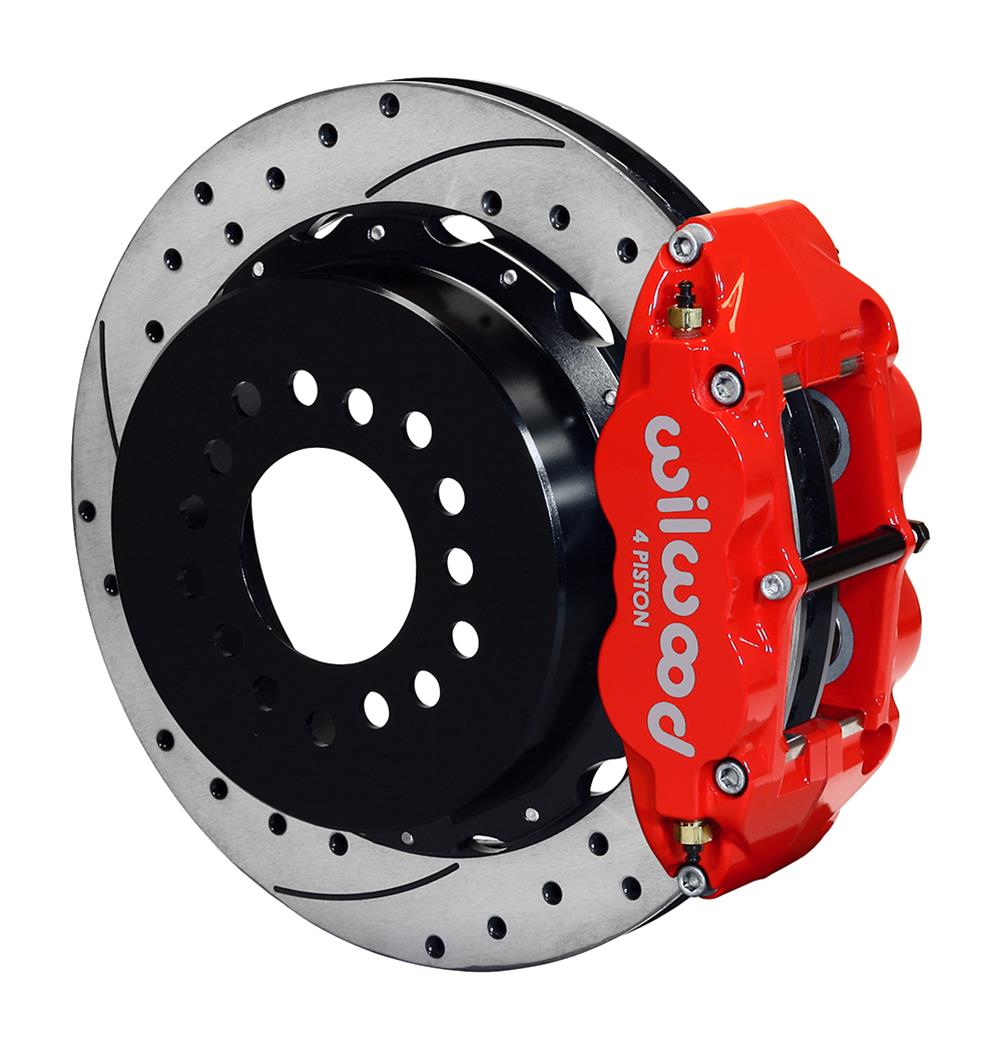

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

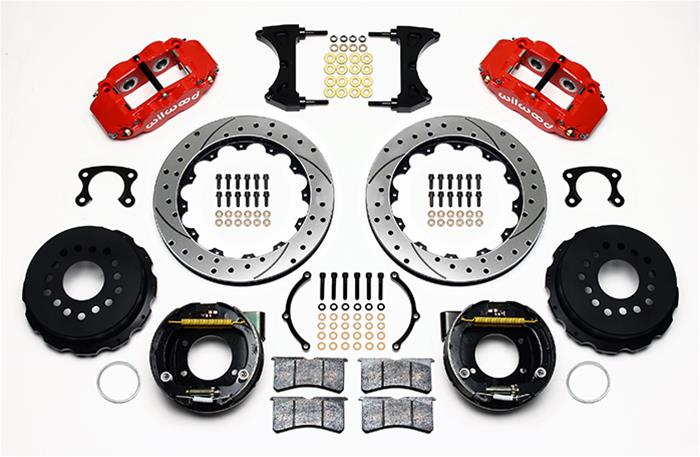

Having a big engine and a trick suspension is really nice, but being able to stop it all quickly is much more important. Wilwood's Superlite 4R Rear Big Brake disc brake kits are engineered to get that job done on race cars, customs, show cars, and lots of other vehicles. For maximum stopping power, they feature Wilwood's billet Superlite 4-piston calipers, teamed up with PolyMatrix pads and zinc plated 13 in. directional, slotted, internally vaned hat-style rotors that are compatible with existing ABS components. In addition, the parking brake is done via an "internal shoe" setup inside of the rotor hat. The kits include all brackets, seals, bearings, and mounting hardware needed to make each application a bolt-on proposition.
Application Summary
Part Type
description
| market_ |
Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application. |
|---|---|
| product_ |
KIT,REAR,SMALL FORD,2.66 OFFSET,FNSL4R |
| product_ |
KIT,REAR,SMALL FORD,2.66 OFFSET,FNSL4R 13.00 ROTOR,DRILLED,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Superlite 4R Rear Big Brake Kits 140-9216-DR |
| brand | Wilwood Disc Brakes |
| price | 1947.24 |
| blurb | Disc Brakes, Forged Narrow Superlite 4R Big Brake, Rear, Rotors, 4-piston Calipers, Red, Ford, Kit |
| title | Wilwood Superlite 4R Rear Big Brake Kits |
| description | Having a big engine and a trick suspension is really nice, but being able to stop it all quickly is much more important. Wilwood's Superlite 4R Rear Big Brake disc brake kits are engineered to get that job done on race cars, customs, show cars, and lots of other vehicles. For maximum stopping power, they feature Wilwood's billet Superlite 4-piston calipers, teamed up with PolyMatrix pads and zinc plated 13 in. directional, slotted, internally vaned hat-style rotors that are compatible with existing ABS components. In addition, the parking brake is done via an "internal shoe" setup inside of the rotor hat. The kits include all brackets, seals, bearings, and mounting hardware needed to make each application a bolt-on proposition. |
item_row
| handle | WIL-140-9216-DR |
|---|---|
| item_ |
137359 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/77896e00add458afbab3a26cc2e1503a.JPG |
| item_ |
140-9216-DR |
| item_ |
Wilwood Narrow Superlite 4R Rear P-Brk Kit 12.88in Drilled Red Small Ford 2.66in Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545030945 |
| item_ |
1947.24 |
| item_ |
2180.91 |
| t14_ |
0 |
| mfr_ |
9 |
| dim_ |
62.50 |
| dim_ |
15.90 |
| dim_ |
15.90 |
| dim_ |
15.20 |
| shipping_ |
30.79 |
| item_ |
wil140-9216-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Fits small Ford rear ends with an 2.66 in. axle offset. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Superlite 4R Rear Big Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Rear Rotor Diameter | 12.88 in./327.15mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Small Ford (3.336 in. x 2.00 in.) |
| Manufacturer's Part Number | 140-9216-DR |
| Rear Rotor Thickness (in.) | 1.10 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 17 in. |
