Wilwood Forged Superlite 4 Big Brake Front Disc Brake Kits 140-9194
Wilwood Forged Superlite 4 Big Brake Front Disc Brake Kits 140-9194
18 in stock
Couldn't load pickup availability
Tags
Product Description

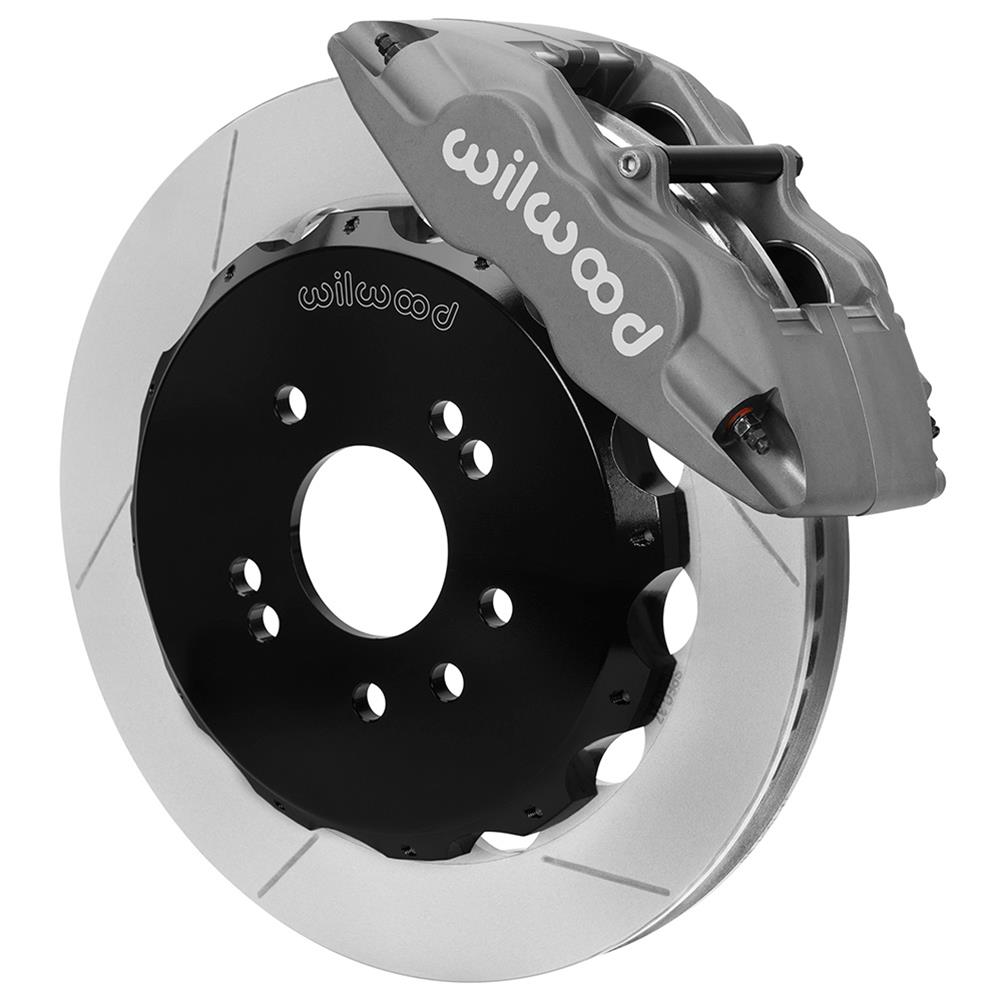

The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track.

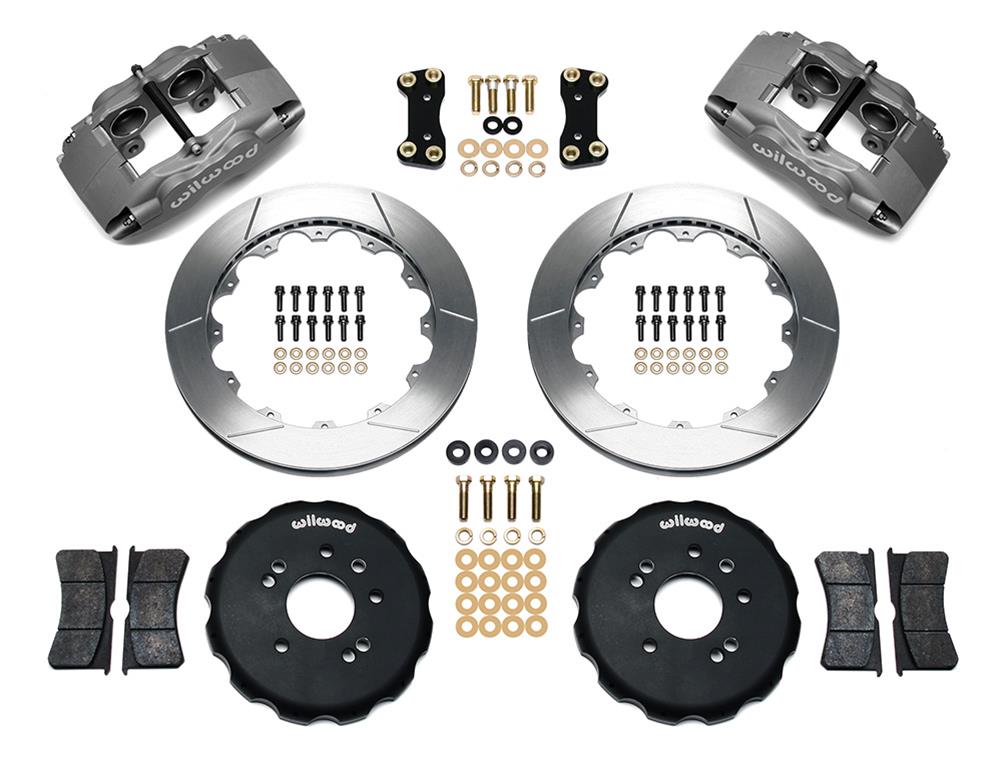

Having a big engine and trick suspension is really nice, but being able to stop it all quickly is much more important. Wilwood's Forged Superlite 4 Big Brake front disc brake kits are engineered to get that job done on race cars, customs, show cars, and lots of other vehicles. For maximum stopping power, they feature Wilwood's forged billet Superlite 4-piston calipers teamed up with PolyMatrix pads and zinc plated 13 in. directional, slotted, and internally vaned hat-style or hub-type rotors. The hat-type rotors are compatible with existing ABS components. The kits include all brackets, seals, bearings, and mounting hardware needed to make each application a bolt-on proposition.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
The big pad capacity of the forged Superlite four piston caliper is combined with oversized rotors for this unique group of specialized application kits. The roots of the forged Superlite are deep in competition. It is a track proven performer. But the FSL is far from one dimensional. Lug mounting and a full range of piston sizes give the FSL widespread adaptability for applications with unique mounting and piston volume requirements. Options for caliper finish and rotor design provide the opportunity to configure these kits for high-tech style with full capability for extreme duty use on the street or at the track. |
|---|---|
| product_ |
KIT,FRONT,NISSAN 240SX,13.00 ROTOR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Superlite 4 Big Brake Front Disc Brake Kits 140-9194 |
| brand | Wilwood Disc Brakes |
| price | 1218.49 |
| blurb | Disc Brake Kit, Superlite 4 Big Brakes, Front, Slotted Rotor, 4-Piston Caliper, Gray, for Nissan, Kit |
| title | Wilwood Forged Superlite 4 Big Brake Front Disc Brake Kits |
| description | Having a big engine and trick suspension is really nice, but being able to stop it all quickly is much more important. Wilwood's Forged Superlite 4 Big Brake front disc brake kits are engineered to get that job done on race cars, customs, show cars, and lots of other vehicles. For maximum stopping power, they feature Wilwood's forged billet Superlite 4-piston calipers teamed up with PolyMatrix pads and zinc plated 13 in. directional, slotted, and internally vaned hat-style or hub-type rotors. The hat-type rotors are compatible with existing ABS components. The kits include all brackets, seals, bearings, and mounting hardware needed to make each application a bolt-on proposition. |
item_row
| handle | WIL-140-9194 |
|---|---|
| item_ |
137376 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/abdaf0e94c1d5940172de9a885086a4b.JPG |
| item_ |
140-9194 |
| item_ |
Wilwood FSLI4 Front Hat Kit 13.00in Nissan 240SX |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545030778 |
| item_ |
1343.49 |
| item_ |
1504.71 |
| t14_ |
8 |
| mfr_ |
10 |
| dim_ |
52.00 |
| dim_ |
16.10 |
| dim_ |
15.90 |
| dim_ |
15.20 |
| shipping_ |
29.81 |
| item_ |
wil140-9194 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Fits 4 and 5 lug vehicles. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Forged Superlite 4 Big Brake Front Disc Brake Kits |
| Front Rotor Style | Slotted surface |
| Front Caliper Color | Gray/Silver |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 12.88 in./327.20mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-9194 |
| Front Rotor Thickness (in.) | 1.10 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 4 x 114.30mm/5 x 114.30mm |
| Front Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (in.) | Dual 4 x 4.50 in./5 x 4.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 17 in. |
