Wilwood Forged Dynalite Rear Drag Brake Kits 140-7146-DR
Wilwood Forged Dynalite Rear Drag Brake Kits 140-7146-DR
15 in stock
Couldn't load pickup availability
Product Description

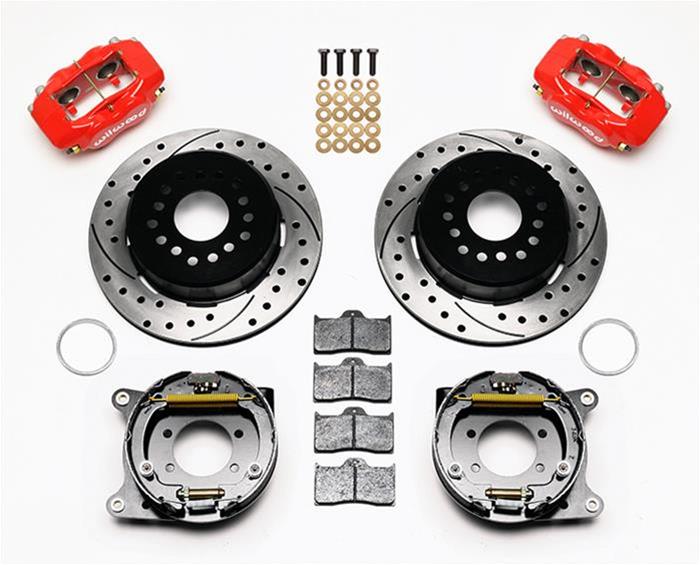

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Having disc brakes up front is a great idea and Wilwood Dynalite rear drag kits make it possible to have them in the rear, too. They're built around Wilwood's forged billet 4-piston calipers, lightweight alloy-steel rotors with machined aluminum mounting hats, and Smart Pad brake pads. This combination produces great stopping power and simultaneously reduces both rotating mass and overall vehicle weight. That lighter overall weight, in turn, can translate into lower ETs. The kits come complete with Grade 8 and aircraft-quality mounting hardware.
Application Summary
Part Type
description
| market_ |
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,MUSTANG,8.8,5 LUG,2.5 |
| product_ |
KIT,REAR,DISC/DRUM,MUSTANG,8.8,5 LUG,2.5 OFFSET,RED,1PC.81 ROTOR,DRILLED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Rear Drag Brake Kits 140-7146-DR |
| brand | Wilwood Disc Brakes |
| price | 1088.11 |
| blurb | Disc Brakes, Rear, Dynalite, Park Brake, Drilled/Slotted Rotors, 4-Pist. Red Cal., Ford 8.8 in., 5 Lug, Kit |
| title | Wilwood Forged Dynalite Rear Drag Brake Kits |
| description | Having disc brakes up front is a great idea and Wilwood Dynalite rear drag kits make it possible to have them in the rear, too. They're built around Wilwood's forged billet 4-piston calipers, lightweight alloy-steel rotors with machined aluminum mounting hats, and Smart Pad brake pads. This combination produces great stopping power and simultaneously reduces both rotating mass and overall vehicle weight. That lighter overall weight, in turn, can translate into lower ETs. The kits come complete with Grade 8 and aircraft-quality mounting hardware. |
item_row
| handle | WIL-140-7146-DR |
|---|---|
| item_ |
136666 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/df3dbdac249cbbdd543c86f0d70cdcf7.JPG |
| item_ |
140-7146-DR |
| item_ |
Wilwood Forged Dynalite P/S Park Brake Kit Drilled Red Ford 8.8 w/2.5in Offset-5 Lug |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545023701 |
| item_ |
1088.11 |
| item_ |
1218.69 |
| t14_ |
1 |
| mfr_ |
0 |
| dim_ |
49.30 |
| dim_ |
16.70 |
| dim_ |
13.90 |
| dim_ |
13.50 |
| shipping_ |
17.34 |
| item_ |
wil140-7146-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.500 in. |
| Product Line | Wilwood Forged Dynalite Rear Drag Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Integral caliper |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Ford 8.8 (3.410 in. x 1.68 in.) |
| Manufacturer's Part Number | 140-7146-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | Ford 8.8 in. |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
