Wilwood Forged Dynalite Rear Parking Brake Kits 140-7144-R
Wilwood Forged Dynalite Rear Parking Brake Kits 140-7144-R
29 in stock
Couldn't load pickup availability
Product Description

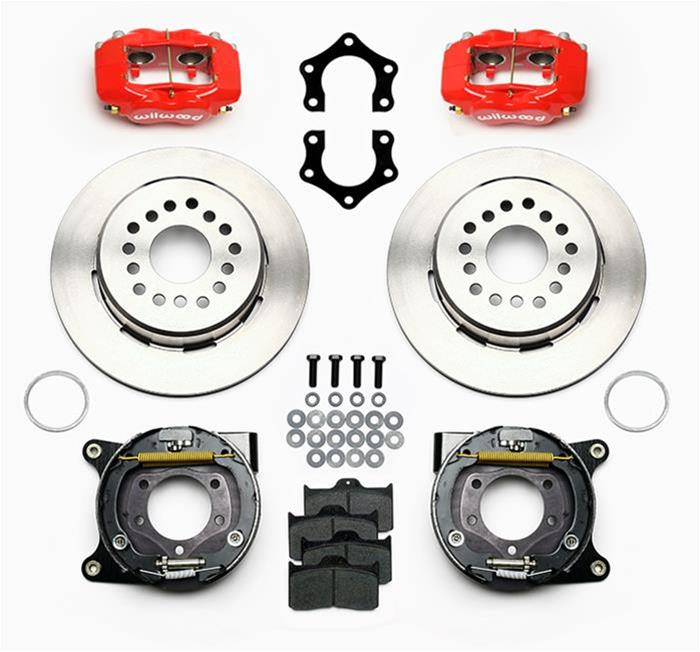

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.
Application Summary
Part Type
description
| market_ |
This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,MOPAR/DANA,2.36 |
| product_ |
KIT,REAR,DISC/DRUM,MOPAR/DANA,2.36 GREEN/SNAP RING,1PC .81 ROTOR,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Rear Parking Brake Kits 140-7144-R |
| brand | Wilwood Disc Brakes |
| price | 963.11 |
| blurb | Disc Brakes, Rear, Dynalite Series, Solid Rotors, 4-Piston Calipers, Dana 60/Chrysler 8.75 in. Housing End |
| title | Wilwood Forged Dynalite Rear Parking Brake Kits |
| description | Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application. |
item_row
| handle | WIL-140-7144-R |
|---|---|
| item_ |
136670 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/6ed3ed6726464348e2f43b666227d583.JPG |
| item_ |
140-7144-R |
| item_ |
Wilwood Forged Dynalite P/S Park Brake Kit Red Mopar/Dana 2.36in Off w/Snap Ring Brng |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545023664 |
| item_ |
963.11 |
| item_ |
1078.69 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
50.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
17.34 |
| item_ |
wil140-7144-R |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Requires the use of non-adjustable "green" axle bearings with snap rings. Drum parking brake included in kit. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.360 in. |
| Product Line | Wilwood Forged Dynalite Rear Parking Brake Kits |
| Rear Rotor Style | Solid surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Mechanical caliper |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Mopar/Dana 60 5-Bolt (2.875 in. Bearing) |
| Manufacturer's Part Number | 140-7144-R |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | Chrysler 8.75/9.75 in./Dana 60 |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
