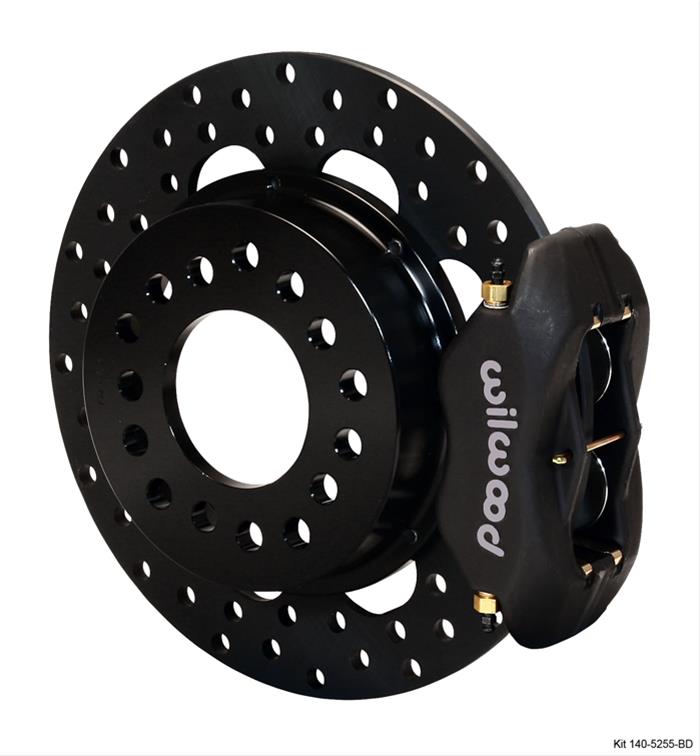

Wilwood Forged Dynalite Rear Drag Brake Kits 140-5255-BD
Wilwood Forged Dynalite Rear Drag Brake Kits 140-5255-BD
Out of stock
Couldn't load pickup availability
Product Description
FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8" plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.

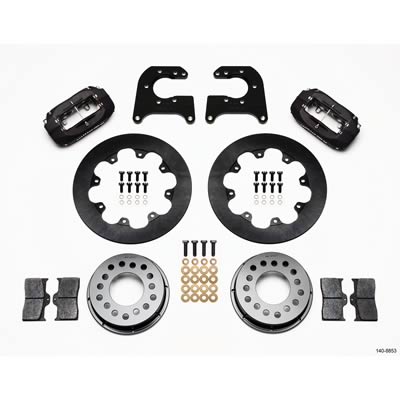

Having disc brakes up front is a great idea and Wilwood Dynalite rear drag kits make it possible to have them in the rear, too. They're built around Wilwood's forged billet 4-piston calipers, lightweight alloy-steel rotors with machined aluminum mounting hats, and Smart Pad brake pads. This combination produces great stopping power and simultaneously reduces both rotating mass and overall vehicle weight. That lighter overall weight, in turn, can translate into lower ETs. The kits come complete with Grade 8 and aircraft-quality mounting hardware.
Application Summary
Part Type
description
| market_ |
FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8" plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary. |
|---|---|
| product_ |
KIT,DRAG,REAR,MOPAR/DANA,2.36 OFFSET |
| product_ |
KIT,DRAG,REAR,MOPAR/DANA,2.36 OFFSET GREEN/SNAP RING,BILLET,DRILLED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Dynalite Rear Drag Brake Kits 140-5255-BD |
| brand | Wilwood Disc Brakes |
| price | 677.41 |
| blurb | Disc Brakes, Rear, Drag Race, Cross-Drilled Rotors, 4-Piston Calipers, Chrysler, 8.75 in./Dana 60, Kit |
| title | Wilwood Forged Dynalite Rear Drag Brake Kits |
| description | Having disc brakes up front is a great idea and Wilwood Dynalite rear drag kits make it possible to have them in the rear, too. They're built around Wilwood's forged billet 4-piston calipers, lightweight alloy-steel rotors with machined aluminum mounting hats, and Smart Pad brake pads. This combination produces great stopping power and simultaneously reduces both rotating mass and overall vehicle weight. That lighter overall weight, in turn, can translate into lower ETs. The kits come complete with Grade 8 and aircraft-quality mounting hardware. |
item_row
| handle | WIL-140-5255-BD |
|---|---|
| item_ |
138638 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/32b99976983b90cd4f3643d565684441.JPG |
| item_ |
140-5255-BD |
| item_ |
Wilwood Forged Dynalite Rear Drag Kit Drilled Rotor Mopar/Dana 2.36in Off w/Snap Ring Brng |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545022704 |
| item_ |
677.41 |
| item_ |
758.70 |
| t14_ |
0 |
| mfr_ |
50 |
| dim_ |
28.00 |
| dim_ |
13.00 |
| dim_ |
13.00 |
| dim_ |
7.10 |
| shipping_ |
14.95 |
| item_ |
wil140-5255-BD |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.360 in. |
| Product Line | Wilwood Forged Dynalite Rear Drag Brake Kits |
| Rear Rotor Style | Cross-drilled surface |
| Special Attention | Requires the use of non-adjustable "green" axle bearings with snap rings. |
| Rear Caliper Color | Gray/Silver |
| Rear Rotor Diameter | 11.44 in./290.60mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Rear Rotor Construction | Solid |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Mopar/Dana 60 5-Bolt (2.875 in. Bearing) |
| Manufacturer's Part Number | 140-5255-BD |
| Rear Rotor Thickness (in.) | 0.35 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | Chrysler 8.75/9.75 in./Dana 60 |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
