Wilwood Forged Dynalite Rear Parking Brake Kits 140-16407-R

Name: Wilwood Forged Dynalite Rear Parking Brake Kits 140-16407-R
Brand: Wilwood
SKU: wil140-16407-R
Price: 1174.63 AUD
Availability: InStock

$1,174.63 AUD

~~$1,096.33 AUD~~ $1,174.63 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

32 in stock

Product variants

Quantity

Product Description

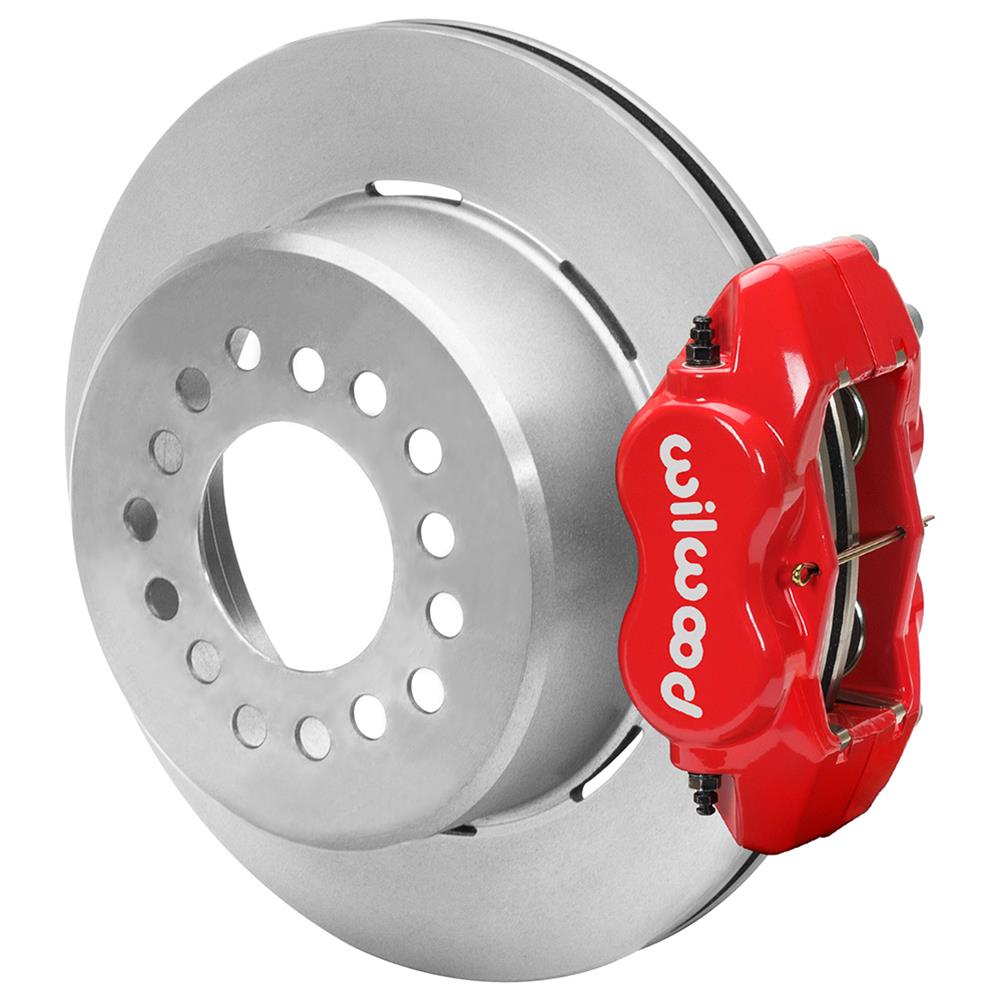

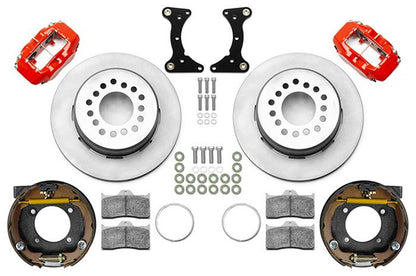

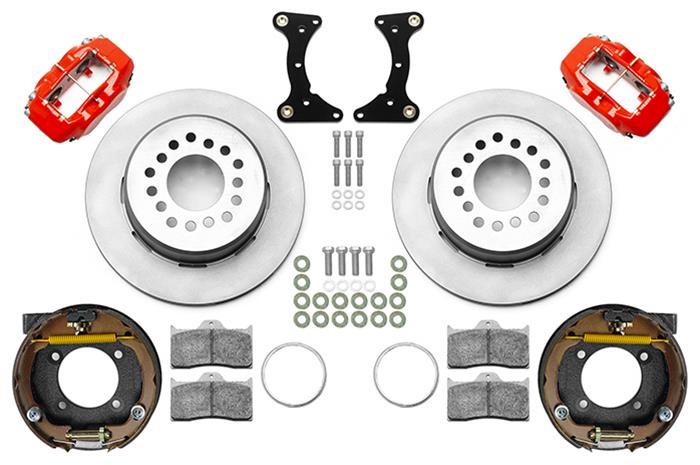

Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.

Application Summary

Part Type

description

product_description_short	Wilwood Ford Explorer 8.8in Rear Axle Dynalite Disc Brake Kit 12.19in Rotor -Red Caliper

s_item

department	Brake Systems
section	Disc Brakes
name	Wilwood Forged Dynalite Rear Parking Brake Kits 140-16407-R
brand	Wilwood Disc Brakes
price	978.86
blurb	Brake Kit, ,REAR,DISC/DRUM,INTEGRAL,FDLI EXPLORER 8.8,2.54 OFFSET,1PC 12.19,RED
title	Wilwood Forged Dynalite Rear Parking Brake Kits
description	Wilwood forged Dynalite rear parking brake kits provide the best solution for many rear axles requiring a parking brake. The forged billet Dynalite 4-piston calipers, one-piece drum/rotors, and high-friction pads provide balanced braking for all types of performance street, strip, and show machines. Their internal shoe parking brake design stays hidden, but has excellent static holding power for parking. Wilwood offers optional caliper finishes and rotor designs to enable the builder to personalize the style and optimize brake performance for every individual application.

item_row

handle	WIL-140-16407-R
item_id	461386
brand_id	232
brand_name	Wilwood
item_thumbnail	https://d32vzsop7y1h3k.cloudfront.net/2525ffb735874aff3732dd88b424a6de.JPG
item_mfr_part_number	140-16407-R
item_title	Wilwood Ford Explorer 8.8in Rear Axle Dynalite Disc Brake Kit 12.19in Rotor -Red Caliper
item_category	Big Brake Kits
item_subcategory	Big Brake Kits
item_barcode	889545100716
item_map	978.86
item_rrp	1096.33
t14_qty	0
mfr_qty	0
dim_weight	50.00
dim_length	16.60
dim_width	13.90
dim_height	13.90
shipping_avg	17.34
item_part_number	wil140-16407-R
taxonomy_id	5367
collection_id	273461379114
collection_title	Big Brake Kits
status	Active
item_can_purchase	1
item_old_category	Brakes, Rotors & Pads
productTaxonomy	5367

Overview

Brand	Wilwood Disc Brakes

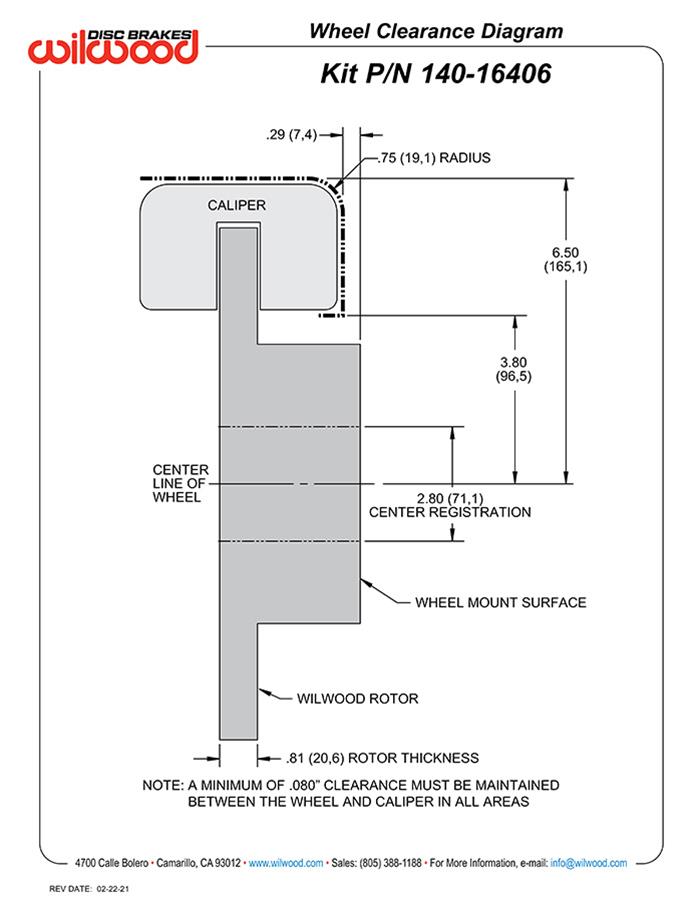

Notes	The hat in this kit is drilled for 1/2 in. diameter wheel studs. Some axles have 7/16 in. studs. It is recommended that you upgrade to 1/2 in. studs. Maximum axle flange diameter must be no larger than 6.610 in. with 0.050 in. x 45 degree chamfer.
Position	Rear
Quantity	Sold as a kit.
Part Type	Disc Brake Kits
Offset (in.)	2.540 in.
Product Line	Wilwood Forged Dynalite Rear Parking Brake Kits
Rear Rotor Style	Solid surface
Rear Caliper Color	Red
Parking Brake Style	Internal drum
Rear Rotor Diameter	12.19 in./309.63mm
Rear Rotor Included	Yes
Brake Hoses Included	No
Front Rotor Included	No
Rear Caliper Included	Yes
Rear Caliper Material	Forged billet aluminum
Brake Booster Included	No
Front Caliper Included	No
Front Spindles Included	No
Parking Brake Provision	Yes
Rear Rotor Construction	Vented
Master Cylinder Included	No
Axle Housing Flange Style	Ford Explorer 8.8 in. (3.562 in. x 2.00 in.)
Manufacturer's Part Number	140-16407-R
Rear Rotor Thickness (in.)	0.81
Rear Caliper Piston Quantity	Four
Brake Rotor Bolt Pattern (mm)	Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type	Ford 8.8 in.
Brake Rotor Bolt Pattern (in.)	Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
