WILWOOD 140-15272-R
889545076264

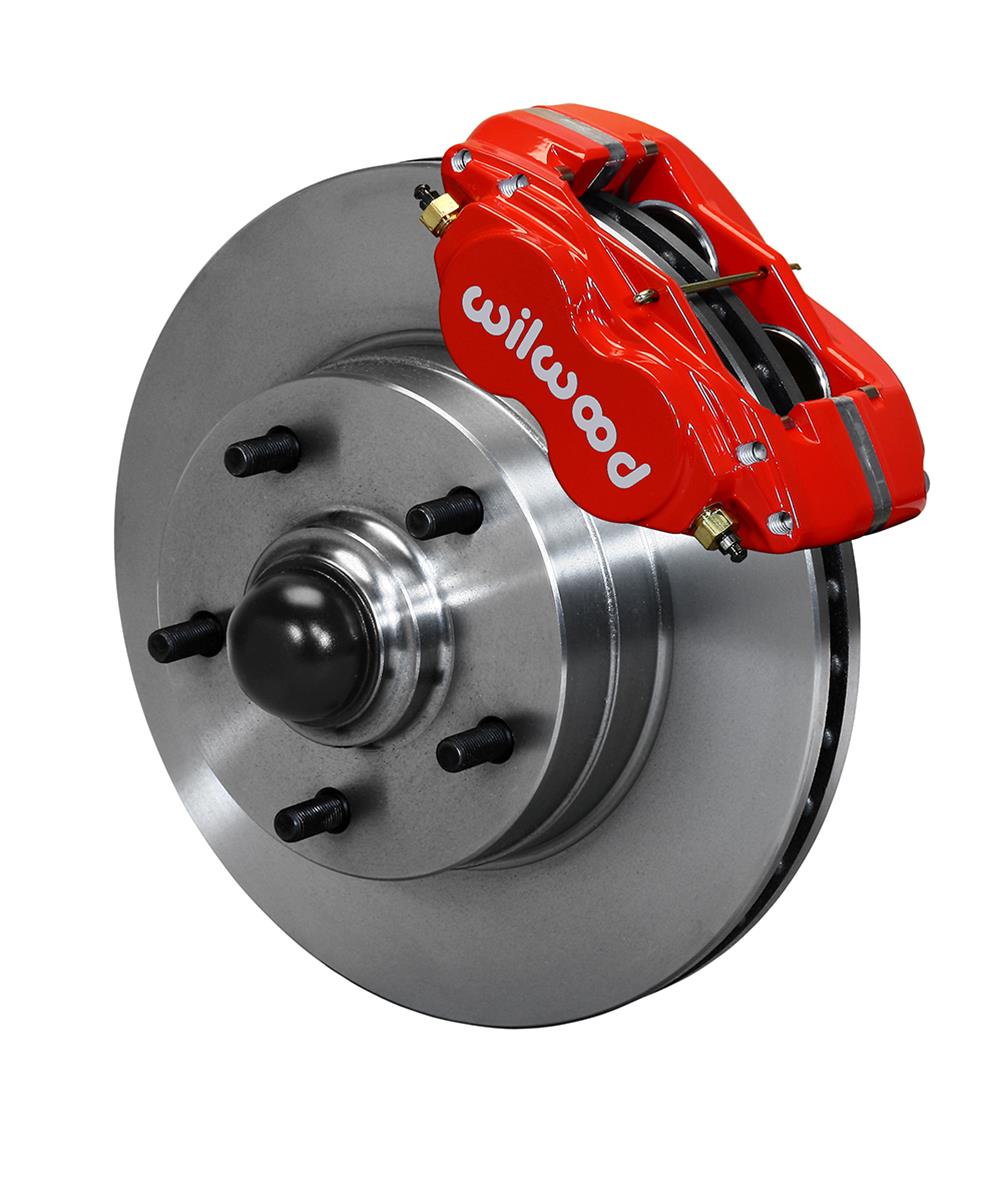

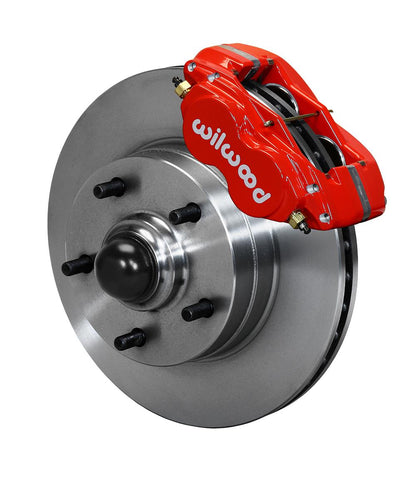

Wilwood Classic Series Dynalite Front Brake Kits 140-15272-R

Wilwood Classic Series Dynalite Front Brake Kits 140-15272-R

$1,001.62 AUD
$934.84 AUD $1,001.62 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

42 in stock

Product Description

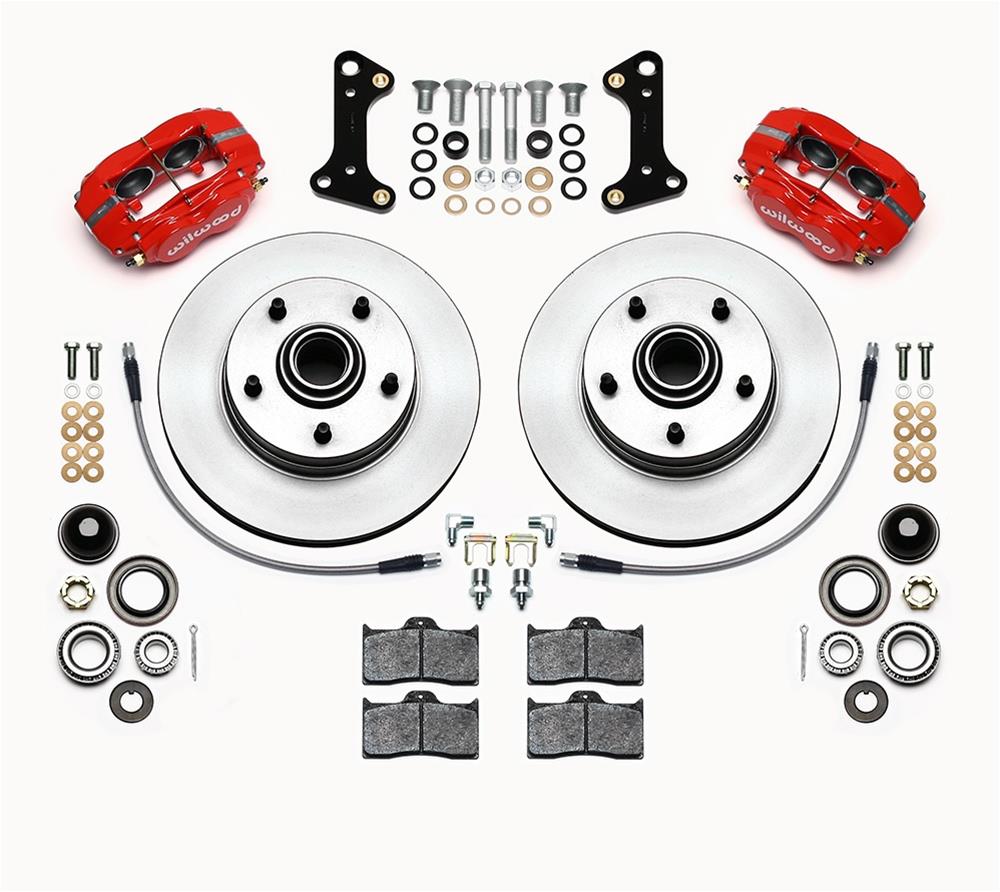

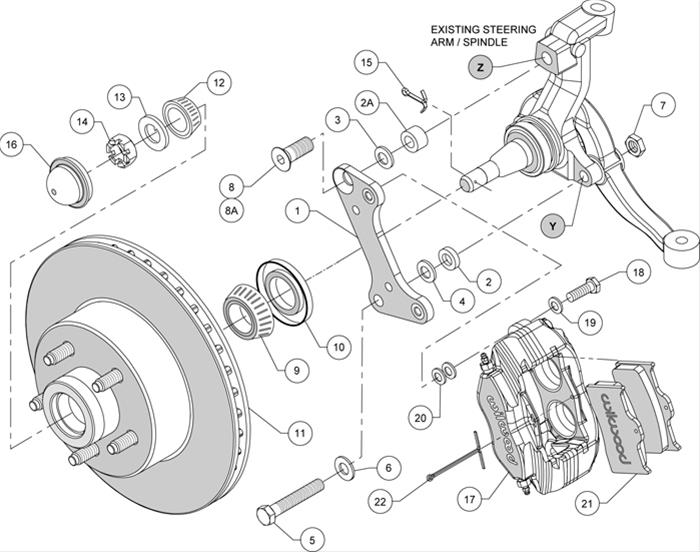

Wilwood's Classic Series front disc brake kits for 1964 to 1974 GM A-body, X-body and 1967-69 F-body offer disc brake upgrade solutions for OEM Drum & Disc brake spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.00" diameter x 1.00" thick one-piece rotors. This new kit widens the track by only +.47" from original drum brake position or narrows by -.03" from the original disc brake rotor assembly. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions. Kit requires purchase of additional brake line kit shown below.

Wilwood Classic Series Dynalite front brake kits deliver consistent stopping power for your classic cars. The forged Dynalite calipers combine technology and style to create stronger, more reliable clamping power that's proven to outperform existing styles of this popular caliper size. The complete packages also include solid surface or drilled and slotted rotors, premium brake pads, brackets, and all required hardware. Kits are available to accommodate the needs of daily driving and show cars. Order the model designed for your vehicle application.

Application Summary

Fitment

Buick Apollo 1973–1974 Buick Gran Sport 1965–1967 Buick Skylark 1964–1972 Buick Riviera 1971
Chevrolet Camaro 1967–1969 Chevrolet Chevelle 1967–1972 Chevrolet Chevy II 1964, 1967–1968 Chevrolet El Camino 1967–1972 Chevrolet Monte Carlo 1970–1972 Chevrolet Nova 1969–1974
GMC Sprint 1971–1972
Oldsmobile 442 1967–1971 Oldsmobile Cutlass 1967–1972 Oldsmobile Cutlass Supreme 1971–1972 Oldsmobile Omega 1973–1974 Oldsmobile Vista Cruiser 1967–1972
Pontiac Firebird 1967–1969 Pontiac Grand Prix 1969 Pontiac GTO 1967–1971 Pontiac LeMans 1964–1972 Pontiac Ventura 1971–1974 Pontiac Tempest 1967

Part Type

Overview

Brand Wilwood Disc Brakes
Notes Works with factory drum or disc spindle.
Position Front
Quantity Sold as a kit.
Part Type Disc Brake Kits
Offset (in.) 0.470 in.
Product Line Wilwood Classic Series Dynalite Front Brake Kits
Front Rotor Style Solid surface
Front Caliper Color Red
Rear Rotor Included No
Brake Hoses Included Yes
Front Rotor Diameter 11.00 in./279.40mm
Front Rotor Included Yes
Rear Caliper Included No
Brake Booster Included No
Front Caliper Included Yes
Front Caliper Material Forged billet aluminum
Front Spindles Included No
Parking Brake Provision No
Front Rotor Construction Vented
Master Cylinder Included No
Manufacturer's Part Number 140-15272-R
Front Rotor Thickness (in.) 1.00 in.
Brake Rotor Bolt Pattern (mm) 5 x 120.65mm
Front Caliper Piston Quantity Four
Brake Rotor Bolt Pattern (in.) 5 x 4.75 in.

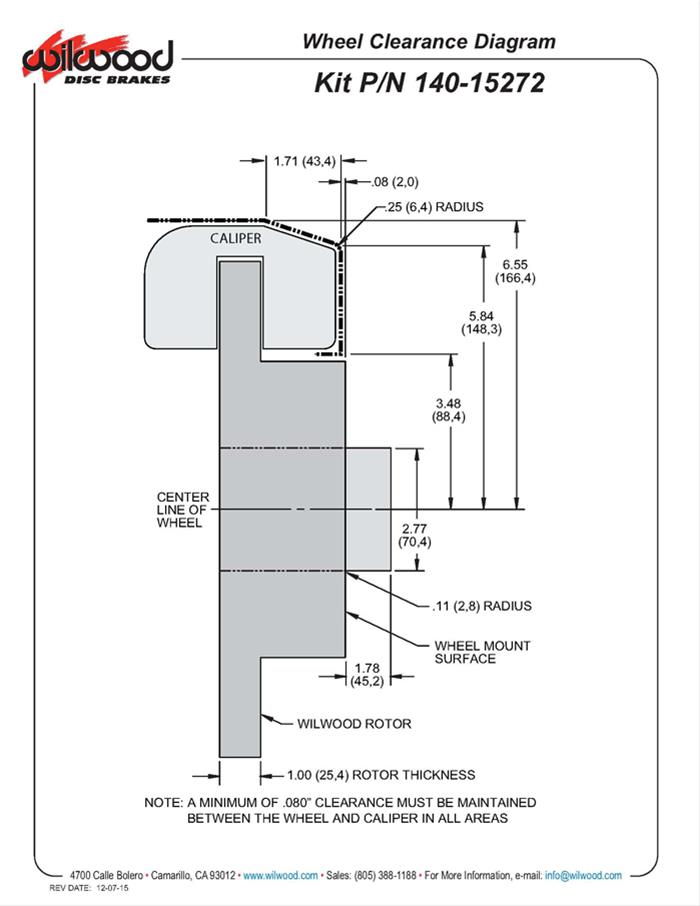

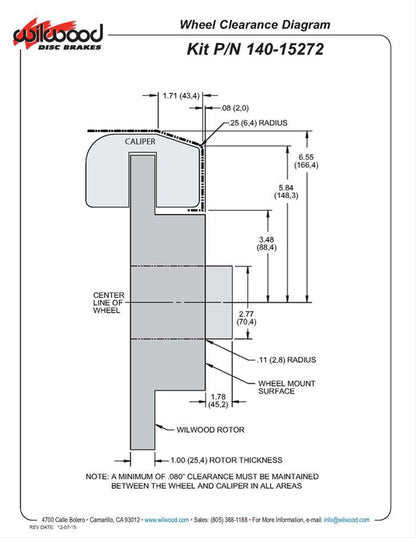

Minimum Recommended Wheel Diameter (in.) 14 in.
