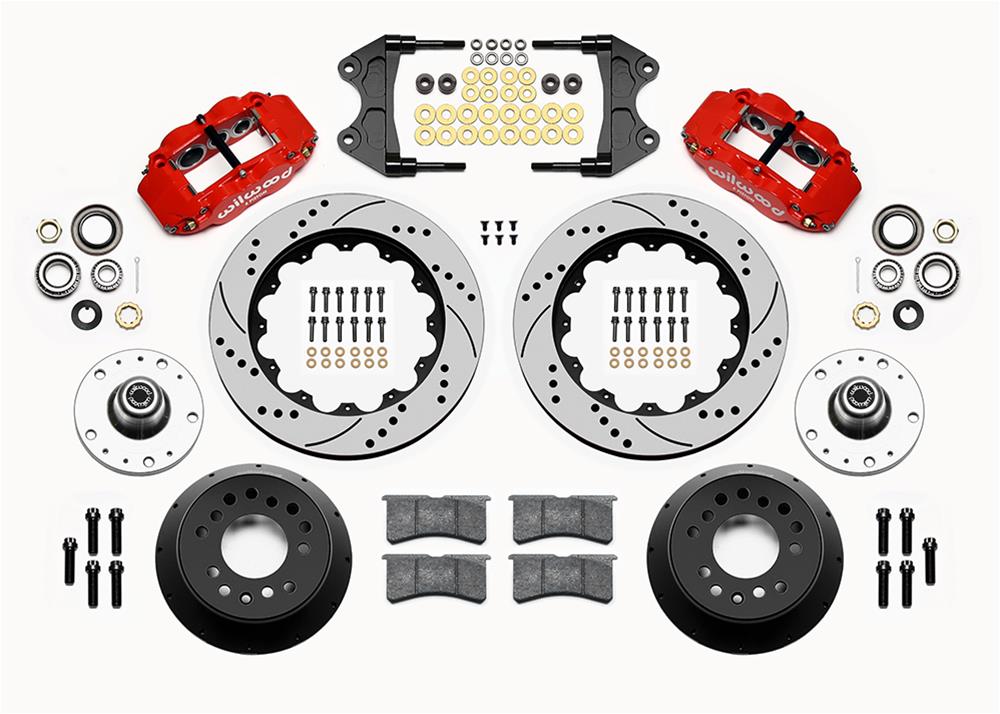

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-15156-DR
Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-15156-DR
18 in stock
Couldn't load pickup availability
Product Description
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in kits engineered for Wilwood's Pro Spindles and offer complete disc brake upgrade solutions for drop spindle applications on American muscle cars and vintage rods. Now with modified hubs for 5 x 4.50" and 5 x 5.00" bolt circle Wheels. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.
Application Summary
Part Type
description
| market_ |
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in kits engineered for Wilwood''s Pro Spindles and offer complete disc brake upgrade solutions for drop spindle applications on American muscle cars and vintage rods. Now with modified hubs for 5 x 4.50" and 5 x 5.00" bolt circle Wheels. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. |
|---|---|
| product_ |
KIT,FRONT,WWE PRO SPINDLE,BIG BRAKE |
| product_ |
KIT,FRONT,WWE PRO SPINDLE,BIG BRAKE 5x5.00 HUB,14.00 ROTOR,SRP,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-15156-DR |
| brand | Wilwood Disc Brakes |
| price | 2281.24 |
| blurb | Disc Brakes, Forged Narrow Superlite 6R Big Brake, Front, Cross-drilled/Slotted Rotors, Red Calipers, Ford, Kit |
| title | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits |
| description | Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits. |
item_row
| handle | WIL-140-15156-DR |
|---|---|
| item_ |
137106 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a31f3a87919623e7e750d20843e66a15.JPG |
| item_ |
140-15156-DR |
| item_ |
Wilwood Narrow Superlite 6R Front Hub Kit 14.00in Drill Red WWE ProSpindle (5x4.75in 5x5.00in Hub) |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545074949 |
| item_ |
2281.24 |
| item_ |
2554.99 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
67.00 |
| dim_ |
16.00 |
| dim_ |
15.80 |
| dim_ |
15.50 |
| shipping_ |
30.70 |
| item_ |
wil140-15156-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Includes 1/2 in.-20 wheel studs. For use with Wilwood ProSpindle brake spindles. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 0.680 in. |
| Product Line | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits |
| Front Rotor Style | Cross-drilled/Slotted surface |
| Front Caliper Color | Red |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 14.00 in./355.60mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-15156-DR |
| Front Rotor Thickness (in.) | 1.10 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 114.30mm/5 x 127.00mm |
| Front Caliper Piston Quantity | Six |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.50 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 18 in. |
