Wilwood Classic Series Dynalite Front Brake Kits 140-14808
Wilwood Classic Series Dynalite Front Brake Kits 140-14808
Low stock: 3 left
Couldn't load pickup availability
Product Description

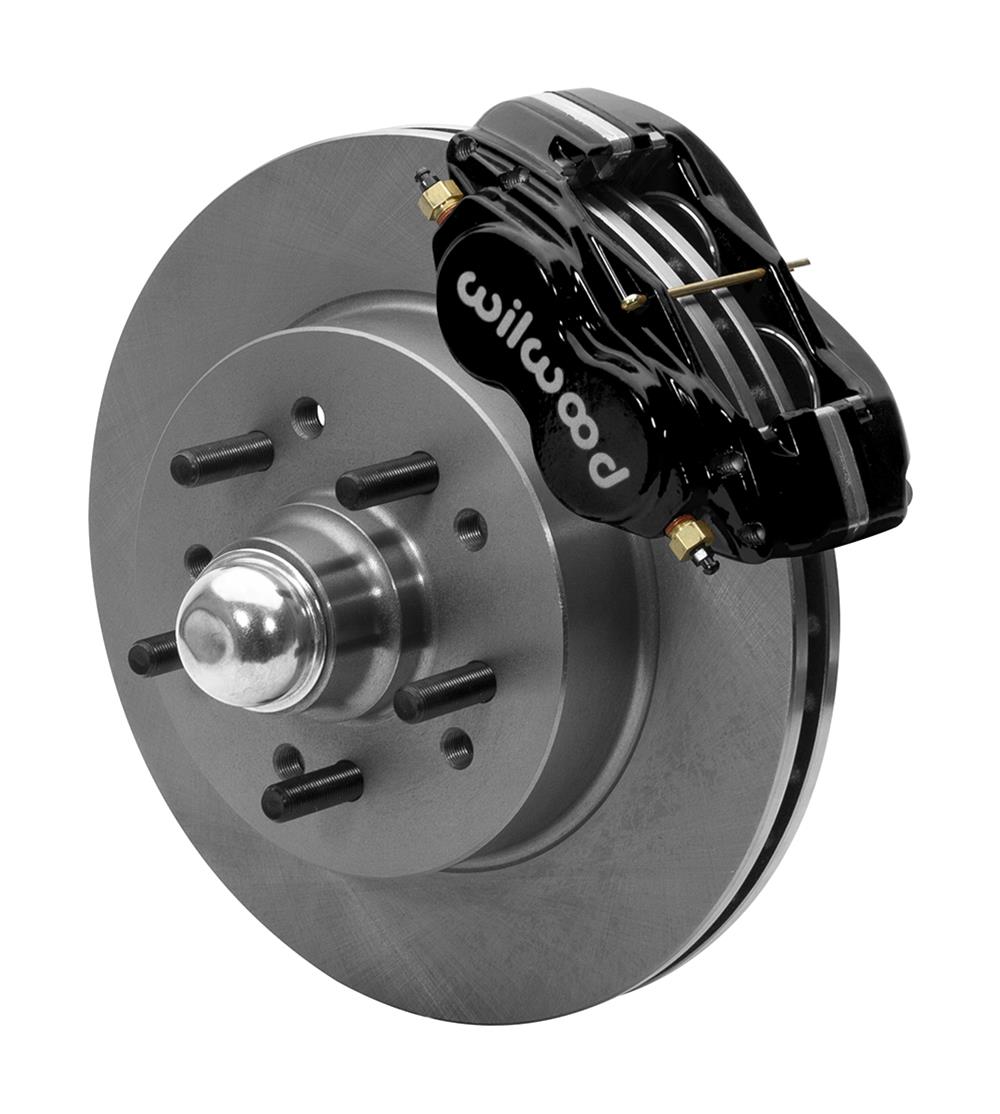

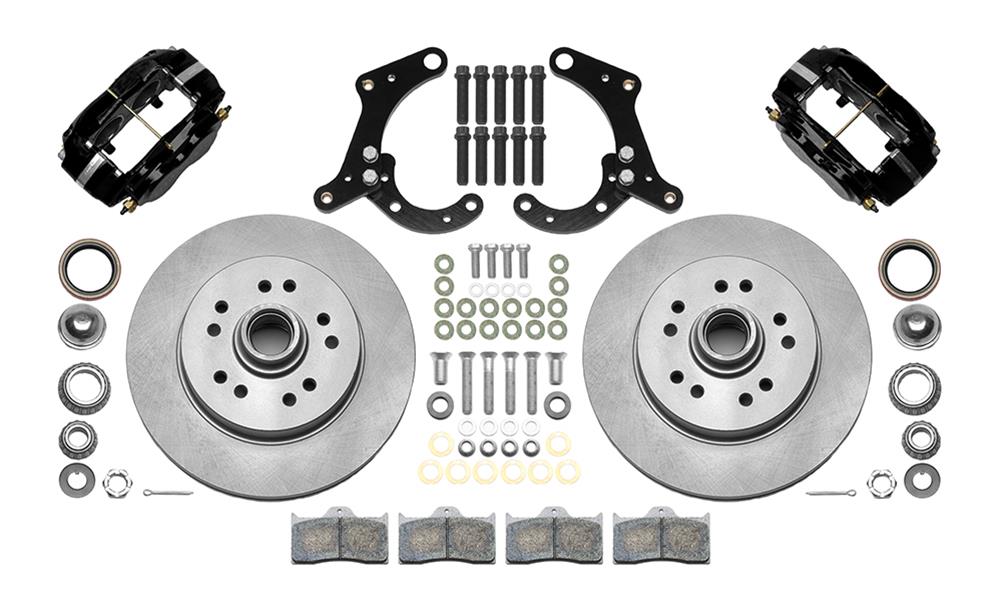

Wilwood's Classic Series front disc brake kits for Chevrolet Full Size vehicles including 1965 to 1968 Impala offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a large 11.50" x 1.00” rotor and hub assembly. Based on the Forged Dynalite-M caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular aftermarket 15" (disc brake) wheels. FDL-M 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets, hardware.
Wilwood Classic Series Dynalite front brake kits deliver consistent stopping power for your classic cars. The forged Dynalite calipers combine technology and style to create stronger, more reliable clamping power that's proven to outperform existing styles of this popular caliper size. The complete packages also include solid surface or drilled and slotted rotors, premium brake pads, brackets, and all required hardware. Kits are available to accommodate the needs of daily driving and show cars. Order the model designed for your vehicle application.
Application Summary
Part Type
description
| market_ |
Wilwood''s Classic Series front disc brake kits for Chevrolet Full Size vehicles including 1965 to 1968 Impala offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a large 11.50" x 1.00” rotor and hub assembly. Based on the Forged Dynalite-M caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular aftermarket 15" (disc brake) wheels. FDL-M 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets, hardware. |
|---|---|
| product_ |
KIT,FRONT,IMPALA DRUM 65-68,FDL-M,11.50 |
| product_ |
KIT,FRONT,IMPALA DRUM 65-68,FDL-M,11.50 HUB/ROTOR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Classic Series Dynalite Front Brake Kits 140-14808 |
| brand | Wilwood Disc Brakes |
| price | 780.24 |
| blurb | Disc Brake Kit, Classic Series Dynalite, Front, 11.50 in. Solid Rotor, 4-Piston Black Powdercoat Caliper, Chevy, Full Size, Kit |
| title | Wilwood Classic Series Dynalite Front Brake Kits |
| description | Wilwood Classic Series Dynalite front brake kits deliver consistent stopping power for your classic cars. The forged Dynalite calipers combine technology and style to create stronger, more reliable clamping power that's proven to outperform existing styles of this popular caliper size. The complete packages also include solid surface or drilled and slotted rotors, premium brake pads, brackets, and all required hardware. Kits are available to accommodate the needs of daily driving and show cars. Order the model designed for your vehicle application. |
item_row
| handle | WIL-140-14808 |
|---|---|
| item_ |
330888 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/e0774c5615096ff5a5c6418ec173db98.JPG |
| item_ |
140-14808 |
| item_ |
Wilwood Forged Dynalite Front Kit 11.5in 65-66 Chevrolet Impala w/ Factory Drum Spindle-Req 220-7699 |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545082845 |
| item_ |
780.24 |
| item_ |
873.87 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
61.70 |
| dim_ |
16.30 |
| dim_ |
13.90 |
| dim_ |
13.50 |
| shipping_ |
30.44 |
| item_ |
wil140-14808 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Fits factory drum spindle. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 0.100 in. |
| Product Line | Wilwood Classic Series Dynalite Front Brake Kits |
| Front Rotor Style | Solid surface |
| Front Caliper Color | Black |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 11.50 in./292.00mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-14808 |
| Front Rotor Thickness (in.) | 1.00 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 114.30mm/5 x 120.65mm |
| Front Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.50 in./5 x 4.75 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
