Wilwood Classic Series Forged Narrow Superlite 6R Front Brake Kits 140-14526
Wilwood Classic Series Forged Narrow Superlite 6R Front Brake Kits 140-14526
5 in stock
Couldn't load pickup availability
Product Description

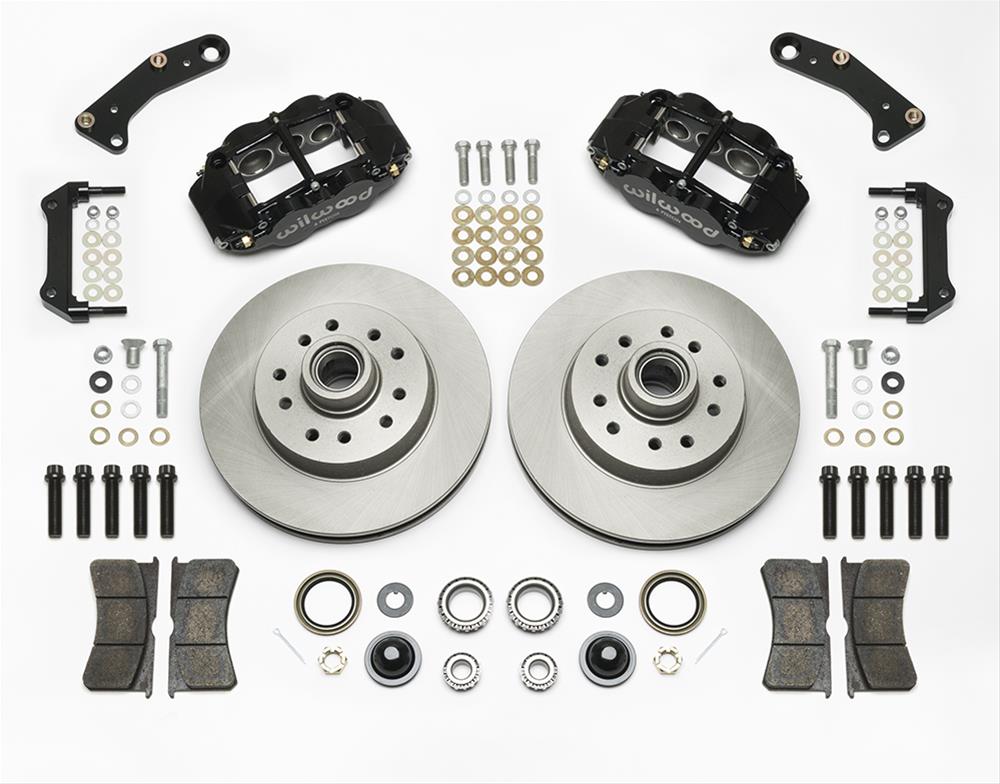

Wilwood's Classic Series front disc brake kits for Chevrolet and GMC C10 / C15 ½ Ton Trucks from 1960 to 1963, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.86" x 1.25” rotor and hub assembly. Based on the venerable Forged Billet Narrow Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FNSL6R 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, hardware and line kit.
Wilwood Classic Series forged narrow Superlite 6R front brake kits provide dependable stopping power for your classic truck. These kits are disc brake upgrade solutions for your OE drum spindles featuring one-piece rotor and hub assemblies. Used with the intended vehicle applications there are no modifications required for installation, and will provide plenty of clearance inside popular 15 in. wheels. Wilwood Classic Series forged narrow Superlite 6R front brake kits can be used with either manual or power boost master cylinders, they come complete with calipers, rotors and hub assembly, brackets, hardware, and line kit.
Application Summary
Part Type
description
| market_ |
Wilwood''s Classic Series front disc brake kits for Chevrolet and GMC C10 / C15 ½ Ton Trucks from 1960 to 1963, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.86" x 1.25” rotor and hub assembly. Based on the venerable Forged Billet Narrow Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FNSL6R 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, hardware and line kit. |
|---|---|
| product_ |
KIT,FRONT,60-63 GM C10 TRUCK,FNSL6R |
| product_ |
KIT,FRONT,60-63 GM C10 TRUCK,FNSL6R 11.86 ROTOR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Classic Series Forged Narrow Superlite 6R Front Brake Kits 140-14526 |
| brand | Wilwood Disc Brakes |
| price | 977.3 |
| blurb | Disc Brake Conversion Kit, Drum to Disc, Solid, Vented Rotors, Black Powdercoated, Kit |
| title | Wilwood Classic Series Forged Narrow Superlite 6R Front Brake Kits |
| description | Wilwood Classic Series forged narrow Superlite 6R front brake kits provide dependable stopping power for your classic truck. These kits are disc brake upgrade solutions for your OE drum spindles featuring one-piece rotor and hub assemblies. Used with the intended vehicle applications there are no modifications required for installation, and will provide plenty of clearance inside popular 15 in. wheels. Wilwood Classic Series forged narrow Superlite 6R front brake kits can be used with either manual or power boost master cylinders, they come complete with calipers, rotors and hub assembly, brackets, hardware, and line kit. |
item_row
| handle | WIL-140-14526 |
|---|---|
| item_ |
587312 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
|
| item_ |
140-14526 |
| item_ |
Wilwood Narrow Superlite 6R Front Kit 11.86in Slotted Rotor w/ Lines 60-63 GM C10 Truck |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545080742 |
| item_ |
977.30 |
| item_ |
1094.58 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
80.00 |
| dim_ |
14.00 |
| dim_ |
14.00 |
| dim_ |
10.00 |
| shipping_ |
33.96 |
| item_ |
wil140-14526 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 0.410 in. |
| Product Line | Wilwood Classic Series Forged Narrow Superlite 6R Front Brake Kits |
| Front Rotor Style | Solid surface |
| Front Caliper Color | Black |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 11.86 in./301.20mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-14526 |
| Front Rotor Thickness (in.) | 1.25 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 120.65mm/5 x 127.00mm |
| Front Caliper Piston Quantity | Six |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
