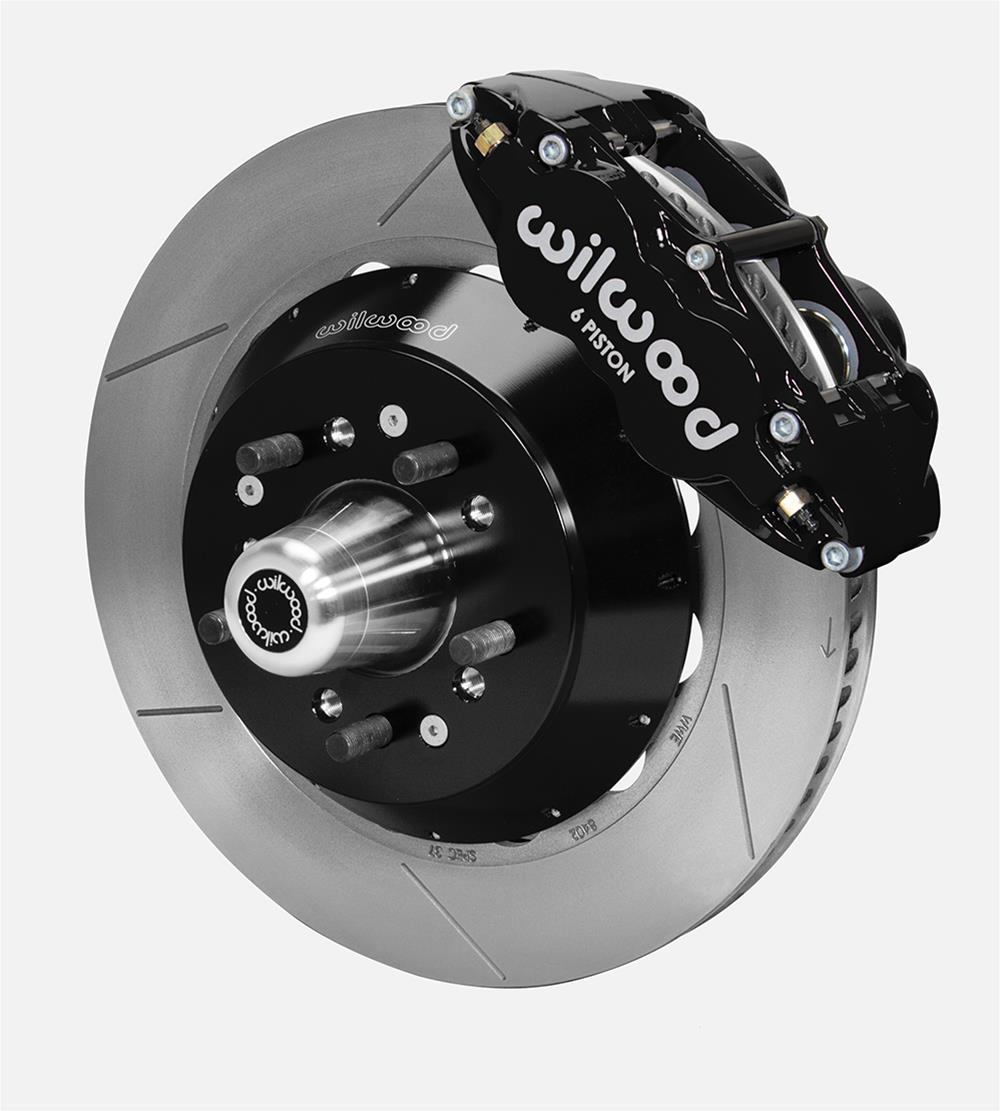

Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-14277
Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-14277
8 in stock
Couldn't load pickup availability
Product Description
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits.
Application Summary
Part Type
description
| market_ |
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application. |
|---|---|
| product_ |
KIT,FRONT,MAGNUM FORCE,DROP SPINDLE |
| product_ |
KIT,FRONT,MAGNUM FORCE,DROP SPINDLE FNSL6R,14.00 ROTOR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits 140-14277 |
| brand | Wilwood Disc Brakes |
| price | 2252.36 |
| blurb | KIT, FRONT, MAGNUM FORCE, DROP SPINDLE |
| title | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits |
| description | Wilwood forged narrow Superlite 6R Big Brake front brake kits upgrade your late model ride with increased brake capacity and complimentary style. They're application-specific for a simpler installation and offer full compatibility with OE master cylinder output and ABS functions, where used. These front brake kits feature the extremely durable and efficient body design of their forged narrow 6-piston radial mount calipers. You can choose from optional caliper finishes and rotor designs to meet your personal style and braking requirements. Don't just replace—upgrade to generate big stopping power with Wilwood forged narrow Superlite 6R Big Brake front brake kits. |
item_row
| handle | WIL-140-14277 |
|---|---|
| item_ |
137056 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/7c094229ec858173bc6e5b4654c6975e.JPG |
| item_ |
140-14277 |
| item_ |
Wilwood Narrow Superlite 6R Front Hub Kit 14.00in Magnum Force Drop Spindle |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545078428 |
| item_ |
2252.36 |
| item_ |
2522.65 |
| t14_ |
0 |
| mfr_ |
3 |
| dim_ |
65.00 |
| dim_ |
16.00 |
| dim_ |
15.80 |
| dim_ |
15.50 |
| shipping_ |
30.65 |
| item_ |
wil140-14277 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Manufacturer's Part Number | 140-14277 |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kits |
| Position | Front |
| Front Rotor Included | Yes |
| Front Rotor Style | Slotted surface |
| Front Rotor Construction | Vented |
| Front Rotor Diameter | 14.00 in./355.60mm |
| Front Rotor Thickness (in.) | 1.10 in. |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.50 in./5 x 4.75 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 114.30mm/5 x 120.65mm |
| Rear Rotor Included | No |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | Six |
| Front Caliper Material | Forged billet aluminum |
| Front Caliper Color | Black |
| Rear Caliper Included | No |
| Brake Pads Included | Yes |
| Friction Material Name | BP-10 |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter (in.) | 18 in. |
| Offset (in.) | 0.250 in. |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Remanufactured | No |
| Brake Hoses Included | No |
| Quantity | Sold as a kit. |
