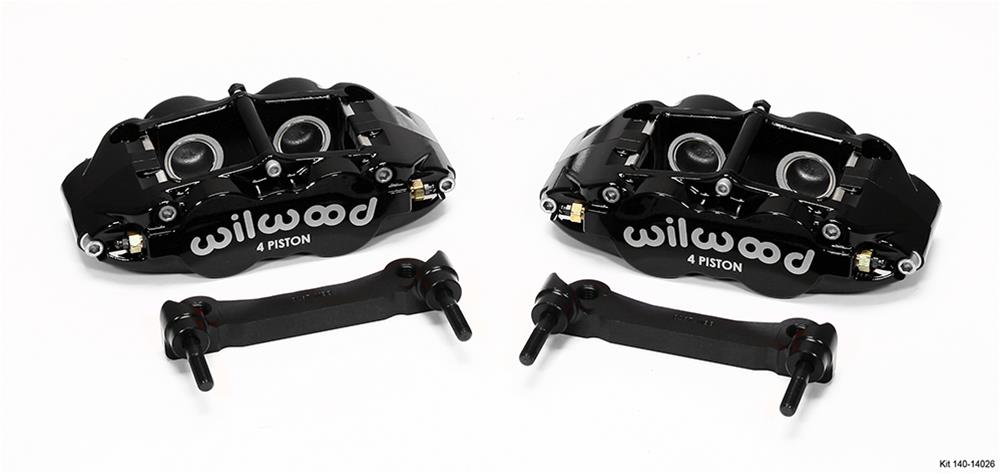

Wilwood Forged Narrow Superlite 4R Caliper Kits 140-14026
Wilwood Forged Narrow Superlite 4R Caliper Kits 140-14026
34 in stock
Couldn't load pickup availability
Tags
Product Description
Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00" rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.

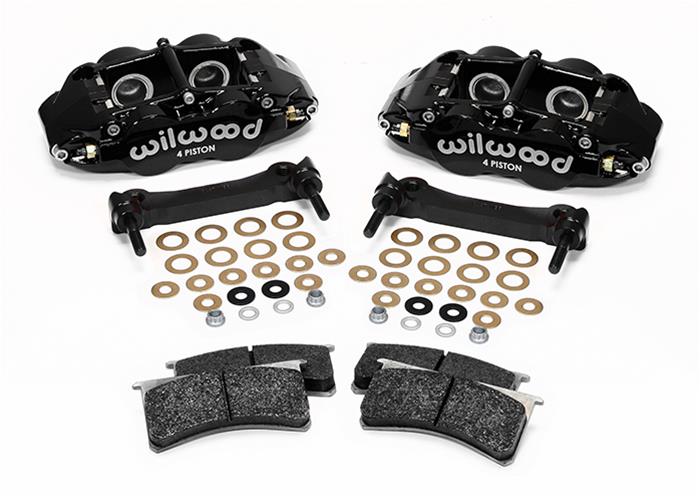

Wilwood Forged Narrow Superlite 4R caliper kits upgrade your rear suspension with big brake stopping power and style. These four piston radial mount caliper kits mount in the stock location and replace your OE calipers on all models that have been updated with 13.00 in. rotors. Superlite 4R calipers incorporate race-proven technology in high-strength, center bridge reinforced forged body designs. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high-temperature fade resistance for autocross and other sport driving applications. Wilwood Forged Narrow Superlite 4R caliper kits include calipers, pads, brackets, and hardware.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00" rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications. |
|---|---|
| product_ |
KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS |
| product_ |
KIT,REAR,C5/C6 VETTE 97-13,FNSL4R W/PADS BRACKETS FOR OE C6 Z51,13.00 ROTOR,BLAC |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Narrow Superlite 4R Caliper Kits 140-14026 |
| brand | Wilwood Disc Brakes |
| price | 989.56 |
| blurb | Brake Calipers, Forged Narrow Superlite 4R, Rear, Aluminum, Black Powdercoated, 4-piston, Pads, Cadillac, Chevy, Kit |
| title | Wilwood Forged Narrow Superlite 4R Caliper Kits |
| description | Wilwood Forged Narrow Superlite 4R caliper kits upgrade your rear suspension with big brake stopping power and style. These four piston radial mount caliper kits mount in the stock location and replace your OE calipers on all models that have been updated with 13.00 in. rotors. Superlite 4R calipers incorporate race-proven technology in high-strength, center bridge reinforced forged body designs. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high-temperature fade resistance for autocross and other sport driving applications. Wilwood Forged Narrow Superlite 4R caliper kits include calipers, pads, brackets, and hardware. |
item_row
| handle | WIL-140-14026 |
|---|---|
| item_ |
138612 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/462913e1ae3e23cff7653fad0e1bd8c1.JPG |
| item_ |
140-14026 |
| item_ |
Wilwood Narrow Superlite 4R Rear Caliper & Bracket Kit - Black 97-13 C5/C6 Corvette w/ OEM Rotors |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545070477 |
| item_ |
989.56 |
| item_ |
1108.31 |
| t14_ |
0 |
| mfr_ |
14 |
| dim_ |
17.90 |
| dim_ |
13.20 |
| dim_ |
13.10 |
| dim_ |
8.30 |
| shipping_ |
14.83 |
| item_ |
wil140-14026 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Earlier models must be updated with 13.00 in. rotors from the 2005-09 C6 Z51 models. |
| Quantity | Sold as a kit. |
| Part Type | Brake Calipers |
| Thread Size | 1/8 in. NPT |
| Caliper Logo | Wilwood |
| Product Line | Wilwood Forged Narrow Superlite 4R Caliper Kits |
| Bracket Color | Black |
| Caliper Color | Black |
| Caliper Series | Forged Narrow Superlite 4 Radial Mount |
| Remanufactured | No |
| Bracket Material | Aluminum |
| Caliper Material | Aluminum |
| Brackets Included | Yes |
| Fittings Included | Yes |
| Brake Pad Material | High-friction metallic |
| Brake Pads Included | Yes |
| Fitting Attachment 1 | Female threads |
| Piston Diameter (in.) | 1.250 |
| Rotor Thickness (in.) | 1.100 in. |
| Caliper Piston Quantity | Four |
| Parking Brake Provision | No |
| Manufacturer's Part Number | 140-14026 |
