Wilwood TX6R Big Brake Rear Brake Kits 140-13879-C
Wilwood TX6R Big Brake Rear Brake Kits 140-13879-C
Out of stock
Couldn't load pickup availability
Tags
Product Description

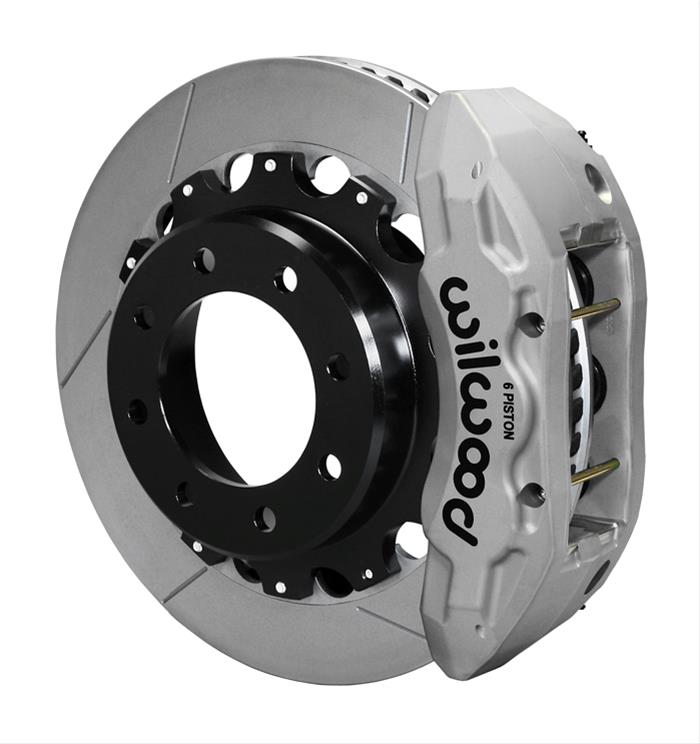

Wilwood's Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00" to 16.00" GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
Tactical extreme—Wilwood TX6R Big Brake rear brake kits equip your truck, SUV, or armored rig for consistent stopping power and severe-duty durability under sustained high heat. Ready to bolt on, these pre-emptive kits contain TX6R radial-mount 6-piston calipers and massive 15 in. to 16 in. GT-60 directional vane Spec-37 alloy rotors. Radial-mount caliper brackets and all the necessary hardware to complete the installation are also included. TX6R rear kits replace your factory disc brakes and use the OE parking brake assembly as a complement to your front Big Brake upgrades. Your mission for braking performance has now been optimized with Wilwood TX6R Big Brake rear brake kits.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
Wilwood''s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00" to 16.00" GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications. |
|---|---|
| product_ |
KIT,REAR,TX6R,2500,99-2010,4.84 CENTER |
| product_ |
KIT,REAR,TX6R,2500,99-2010,4.84 CENTER REGISTRATION,16.00 ROTOR,CLEAR |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood TX6R Big Brake Rear Brake Kits 140-13879-C |
| brand | Wilwood Disc Brakes |
| price | 2653.7 |
| blurb | Disc Brakes, TX6R Big Brake, Rear, Slotted Surface Rotors, 6-piston Clear Anodized Calipers, Chevy, GMC, Kit |
| title | Wilwood TX6R Big Brake Rear Brake Kits |
| description | Tactical extreme—Wilwood TX6R Big Brake rear brake kits equip your truck, SUV, or armored rig for consistent stopping power and severe-duty durability under sustained high heat. Ready to bolt on, these pre-emptive kits contain TX6R radial-mount 6-piston calipers and massive 15 in. to 16 in. GT-60 directional vane Spec-37 alloy rotors. Radial-mount caliper brackets and all the necessary hardware to complete the installation are also included. TX6R rear kits replace your factory disc brakes and use the OE parking brake assembly as a complement to your front Big Brake upgrades. Your mission for braking performance has now been optimized with Wilwood TX6R Big Brake rear brake kits. |
item_row
| handle | WIL-140-13879-C |
|---|---|
| item_ |
138023 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/31b62c350dd616c6d59432b27a8183f3.JPG |
| item_ |
140-13879-C |
| item_ |
Wilwood TX6R Rear Kit 16.00in Clear Ano 1999-2010 GM Trk 2500 HD 4.84 Cntr |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545071573 |
| item_ |
2653.70 |
| item_ |
2972.14 |
| t14_ |
0 |
| mfr_ |
4 |
| dim_ |
45.00 |
| dim_ |
19.70 |
| dim_ |
19.20 |
| dim_ |
5.40 |
| shipping_ |
27.93 |
| item_ |
wil140-13879-C |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Fits axle with 4.84 in. center register only. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood TX6R Big Brake Rear Brake Kits |
| Rear Rotor Style | Slotted surface |
| Rear Caliper Color | Clearcoat |
| Rear Rotor Diameter | 16.00 in./406.40mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-13879-C |
| Rear Rotor Thickness (in.) | 1.38 |
| Rear Caliper Piston Quantity | Six |
| Brake Rotor Bolt Pattern (mm) | 8 x 165.10mm |
| Differential Case Design Type | AAM 11.5 in. 14-bolt |
| Brake Rotor Bolt Pattern (in.) | 8 x 6.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 20 in. |
