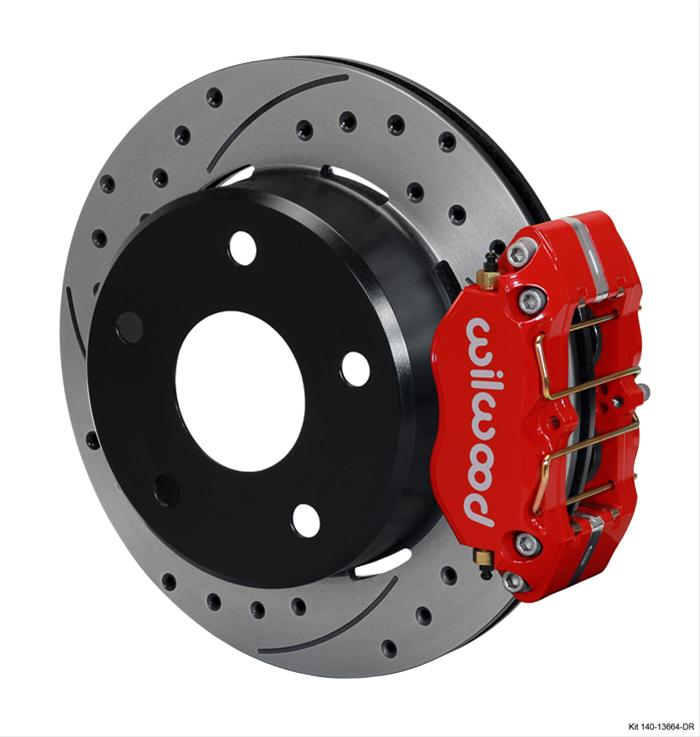

Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13664-DR
Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13664-DR
29 in stock
Couldn't load pickup availability
Product Description
These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 76-77 rear axles with Big Ford New flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

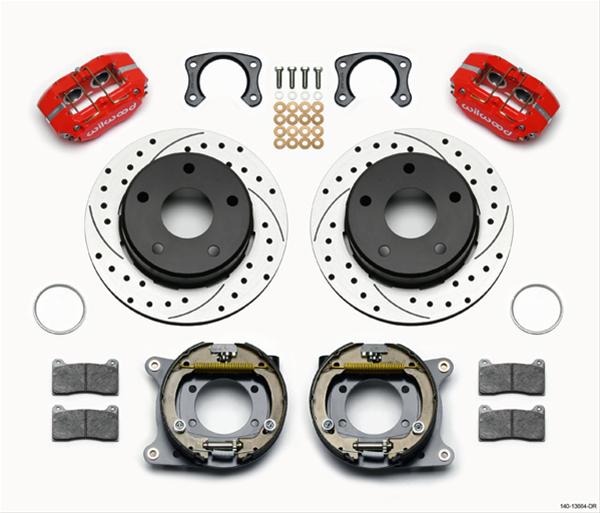

If you're replacing the rear brake shoes for your parking brake and have a desire to have discs all around, Wilwood DynaPro Lug Mount rear parking brake kits have a complete solution for rear axles that require a parking brake. Included are forged billet piston calipers, one-piece drum/rotors, and high-friction pads, as well as all necessary hardware to provide improved braking for the custom machine you drive. These kits are designed to fit OE factory spindles, allow for a clear-cut install, and will provide exceptional holding power for the parking brake. Various caliper finishes and rotor designs allow you to choose the essential style and brake performance for your personal application.
Application Summary
Part Type
description
| market_ |
These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 76-77 rear axles with Big Ford New flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,BIG FORD,NEW STYLE |
| product_ |
KIT,REAR,DISC/DRUM,BIG FORD,NEW STYLE 2.38 OFF,DPL,1 PC,5x5.50BC,12.19,SRP,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13664-DR |
| brand | Wilwood Disc Brakes |
| price | 1265.93 |
| blurb | Disc Brakes, DynaPro Lug Mount, Rear, Cross-drilled/Slotted Rotors, 4-piston Calipers, Red Powdercoated, Parking Brake Provision, Ford, Kit |
| title | Wilwood DynaPro Lug-Mount Rear Parking Brake Kits |
| description | If you're replacing the rear brake shoes for your parking brake and have a desire to have discs all around, Wilwood DynaPro Lug Mount rear parking brake kits have a complete solution for rear axles that require a parking brake. Included are forged billet piston calipers, one-piece drum/rotors, and high-friction pads, as well as all necessary hardware to provide improved braking for the custom machine you drive. These kits are designed to fit OE factory spindles, allow for a clear-cut install, and will provide exceptional holding power for the parking brake. Various caliper finishes and rotor designs allow you to choose the essential style and brake performance for your personal application. |
item_row
| handle | WIL-140-13664-DR |
|---|---|
| item_ |
136595 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/3c59a34134f76f38673c1c6a33405742.JPG |
| item_ |
140-13664-DR |
| item_ |
Wilwood Dynapro Lug Mount P/S Park Brake Kit Drilled Red Big Ford New 2.38in Off Bronco 5 x 5.50 |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545048650 |
| item_ |
1265.93 |
| item_ |
1417.84 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
50.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
17.34 |
| item_ |
wil140-13664-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.380 in. |
| Product Line | Wilwood DynaPro Lug-Mount Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Big Ford New Style Bronco (3.562 in. x 2.00 in. 5-Lug) |
| Manufacturer's Part Number | 140-13664-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | 5 x 139.70mm |
| Brake Rotor Bolt Pattern (in.) | 5 x 5.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
