Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits 140-13513-D
Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits 140-13513-D
20 in stock
Couldn't load pickup availability
Product Description
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
For popular musclecar rear axle applications needing a parking brake assembly and some extra clearance, Wilwood Forged DynaPro low-profile rear parking disc brake kits provide the solution. Forged billet DynaPro low-profile 4-piston calipers, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimal balanced braking for your performance street/strip and show machines. Choose either solid-surface or cross-drilled and slotted rotors to personalize your style and optimize brake performance. These Wilwood brake kits also feature a neatly hidden internal shoe system for a clean installation and superior static holding power for parking. Get bolt-on performance and looks for competition or show with Wilwood Forged Dynapro low-profile rear parking disc brake kits.
Application Summary
Part Type
description
| market_ |
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,BOP,2.75 OFFSET |
| product_ |
KIT,REAR,DISC/DRUM,BOP,2.75 OFFSET 11.00x.81 ROTOR,SRP |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits 140-13513-D |
| brand | Wilwood Disc Brakes |
| price | 1103.86 |
| blurb | Disc Brakes, DynaPro Low-Profile, Rear, Cross-drilled/Slotted Rotors, Black Calipers, GM 8.2 in. BOP, Kit |
| title | Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits |
| description | For popular musclecar rear axle applications needing a parking brake assembly and some extra clearance, Wilwood Forged DynaPro low-profile rear parking disc brake kits provide the solution. Forged billet DynaPro low-profile 4-piston calipers, 11 in. one-piece hat and rotor assemblies, and high-friction pads provide optimal balanced braking for your performance street/strip and show machines. Choose either solid-surface or cross-drilled and slotted rotors to personalize your style and optimize brake performance. These Wilwood brake kits also feature a neatly hidden internal shoe system for a clean installation and superior static holding power for parking. Get bolt-on performance and looks for competition or show with Wilwood Forged Dynapro low-profile rear parking disc brake kits. |
item_row
| handle | WIL-140-13513-D |
|---|---|
| item_ |
136732 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/150f9030a5f31f5fa88f144b04731fb5.JPG |
| item_ |
140-13513-D |
| item_ |
Wilwood Dynapro Low-Profile 11.00in P-Brake Kit Drilled BOP Axle 2.75in Bearing 2.75 Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545020625 |
| item_ |
1103.86 |
| item_ |
1236.33 |
| t14_ |
1 |
| mfr_ |
0 |
| dim_ |
44.40 |
| dim_ |
17.00 |
| dim_ |
14.00 |
| dim_ |
13.70 |
| shipping_ |
16.82 |
| item_ |
wil140-13513-D |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Fits BOP type axles using 2.75 inch diameter retained bearing, will not fit C-clip retained axles. This brake has an axle offset of 2.75 inches. Will not fit vehicles with Staggard shocks |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.750 in. |
| Product Line | Wilwood Forged DynaPro Low-Profile Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Black |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 11.00 in./279.40mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |

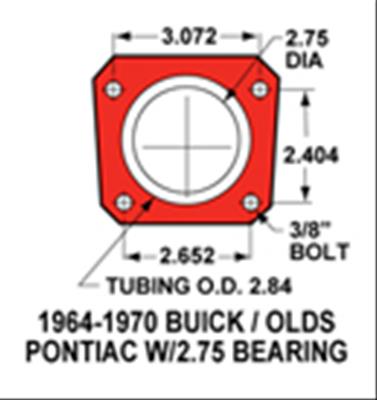

| Axle Housing Flange Style | Buick/Oldsmobile/Pontiac (3.072 in. x 2.40 in.) |
| Manufacturer's Part Number | 140-13513-D |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | GM 8.2 in., BOP axle |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 14 in. |
