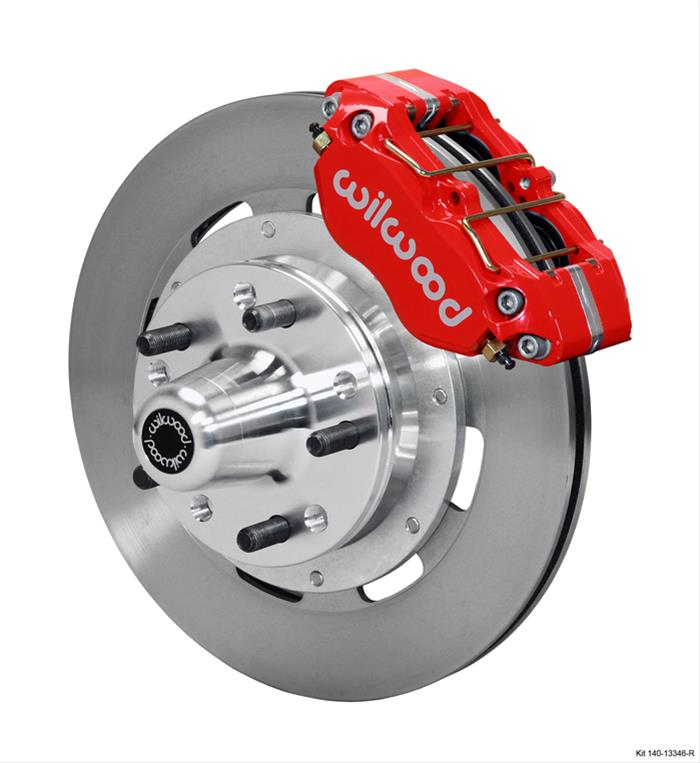

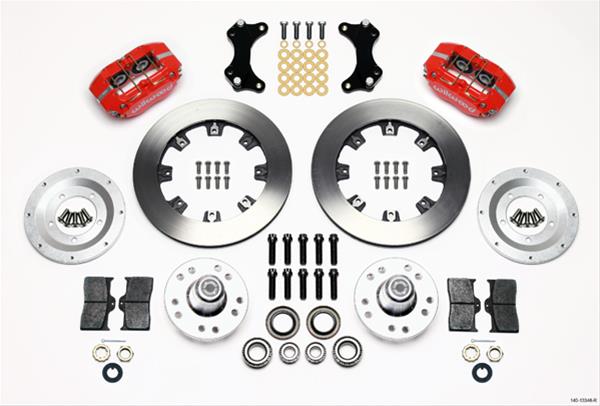

Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits 140-13346-R
Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits 140-13346-R
11 in stock
Couldn't load pickup availability
Product Description
DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynapro Dust Boot calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Wilwood DynaPro Big Brake front brake kits provide the edge of larger diameter brake rotors for conventional non-ABS spindles on machines with big brake stopping power. These kits were developed for locations or applications where dust-booted pistons are appropriate, to provide added protection against track and road-born debris in low temperature ranges or harsh environments. A full range of options for caliper finish and rotor design allows you to individualize style and performance requirements … from the mildest to the wildest.
Application Summary
Part Type
description
| market_ |
DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynapro Dust Boot calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines. |
|---|---|
| product_ |
KIT,FRONT,WWE PRO SPINDLE,DP-DB,12.19 |
| product_ |
KIT,FRONT,WWE PRO SPINDLE,DP-DB,12.19 ROTOR,12.19 ROTOR,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits 140-13346-R |
| brand | Wilwood Disc Brakes |
| price | 1051.93 |
| blurb | Disc Brakes, DynaPro Dust-Boot Big Brake, Front, Solid Surface Rotors, 4-piston Red Calipers, Ford, Kit |
| title | Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits |
| description | Wilwood DynaPro Big Brake front brake kits provide the edge of larger diameter brake rotors for conventional non-ABS spindles on machines with big brake stopping power. These kits were developed for locations or applications where dust-booted pistons are appropriate, to provide added protection against track and road-born debris in low temperature ranges or harsh environments. A full range of options for caliper finish and rotor design allows you to individualize style and performance requirements … from the mildest to the wildest. |
item_row
| handle | WIL-140-13346-R |
|---|---|
| item_ |
138056 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/fb2a269cf4f6de4efdbbd9306c866184.JPG |
| item_ |
140-13346-R |
| item_ |
Wilwood Dynapro Dust-Boot Front Kit 12.19in Red WWE ProSpindle |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545020212 |
| item_ |
1051.93 |
| item_ |
1178.16 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
44.00 |
| dim_ |
14.90 |
| dim_ |
13.10 |
| dim_ |
13.10 |
| shipping_ |
16.82 |
| item_ |
wil140-13346-R |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Includes 1/2 in.-20 wheel studs. Designed to be used with Wilwood Prospindles only. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 0.100 in. |
| Product Line | Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits |
| Front Rotor Style | Solid surface |
| Front Caliper Color | Red |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 12.19 in./309.63mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-13346-R |
| Front Rotor Thickness (in.) | 0.81 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 114.30mm/5 x 120.65mm |
| Front Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.50 in./5 x 4.75 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
