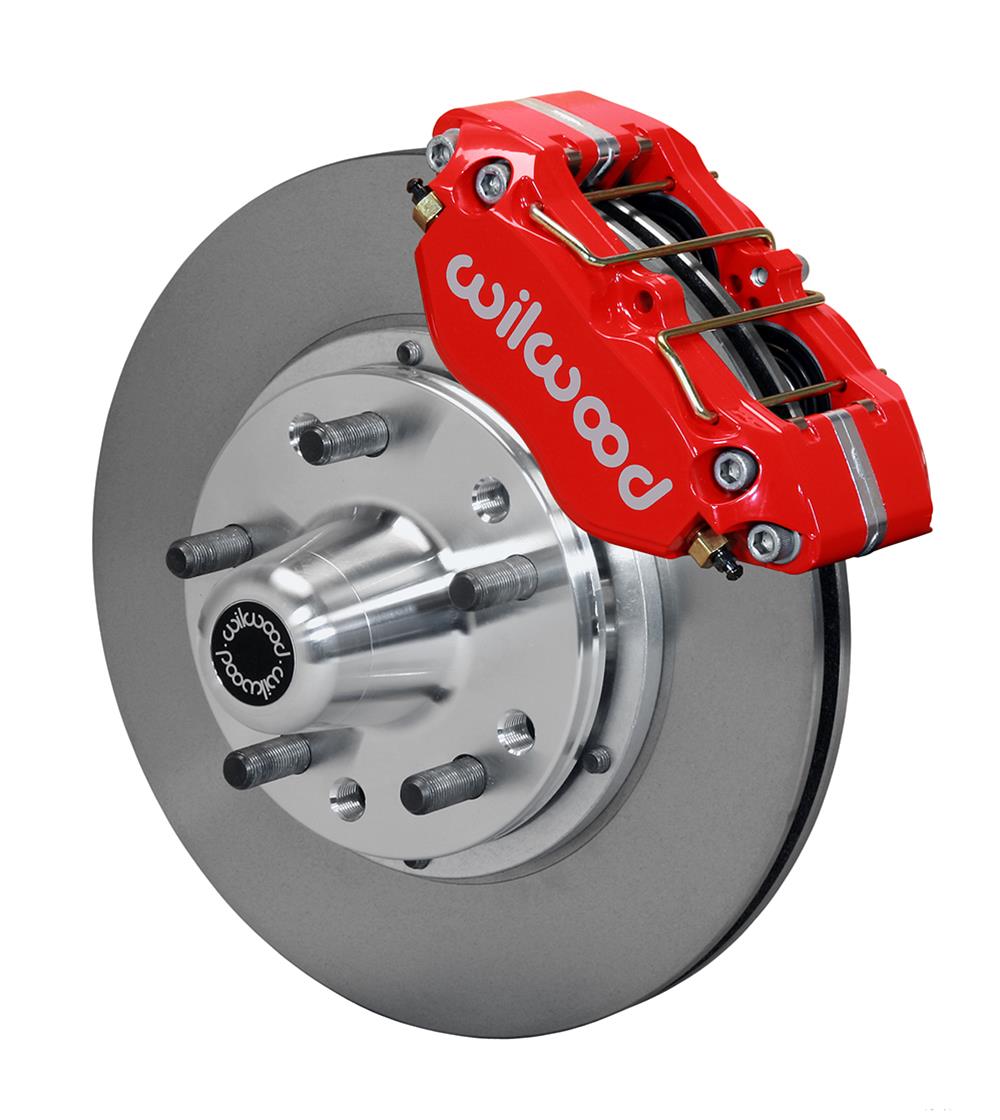

Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits 140-13345-R
Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits 140-13345-R
50 in stock
Couldn't load pickup availability
Product Description

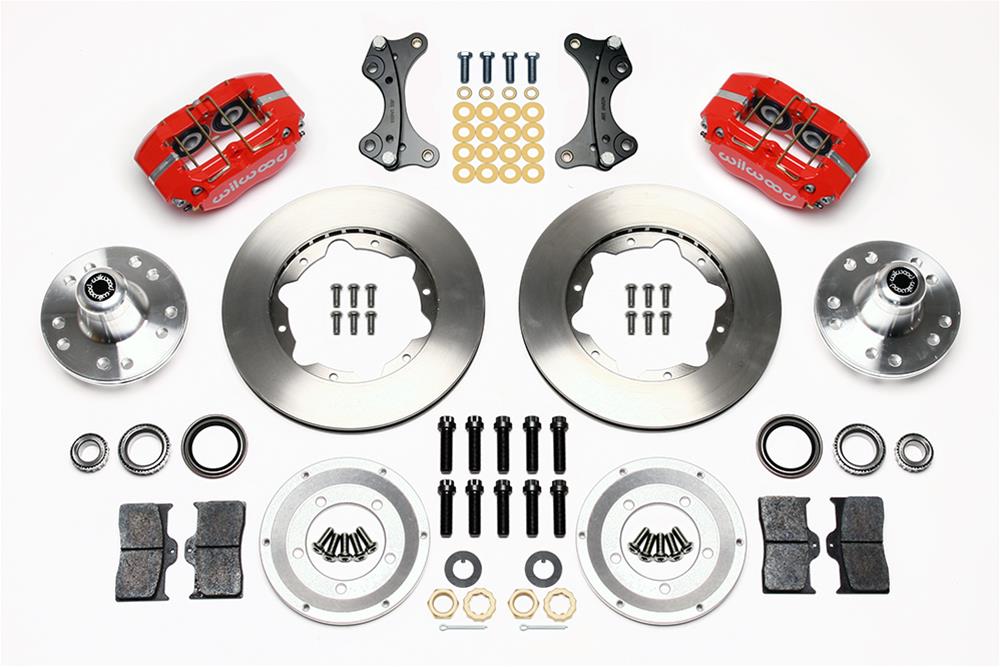

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
Wilwood DynaPro Big Brake front brake kits allow you to enhance conventional non-ABS spindles on machines providing big brake stopping power. These kits were developed for when dust-booted pistons are appropriate to provide added protection against dirt and debris in low temperature areas and rough environments. A full range of caliper finish and rotor designs provide options to individualize the style and preferences of any enthusiast. Kits come complete with calipers, rotors, hub assembly, brackets and hardware.
Application Summary
Part Type
description
| market_ |
Wilwood''s new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below. |
|---|---|
| product_ |
KIT,FRONT,WWE PRO SPINDLE,DP-DB,11.00 |
| product_ |
KIT,FRONT,WWE PRO SPINDLE,DP-DB,11.00 ROTOR,11.00 ROTOR,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits 140-13345-R |
| brand | Wilwood Disc Brakes |
| price | 1032.24 |
| blurb | FRONT KIT PRO SPINDLE DP-DB 11.00 |
| title | Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits |
| description | Wilwood DynaPro Big Brake front brake kits allow you to enhance conventional non-ABS spindles on machines providing big brake stopping power. These kits were developed for when dust-booted pistons are appropriate to provide added protection against dirt and debris in low temperature areas and rough environments. A full range of caliper finish and rotor designs provide options to individualize the style and preferences of any enthusiast. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. |
item_row
| handle | WIL-140-13345-R |
|---|---|
| item_ |
138061 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a6916b42f19e8575ecad7ebd90cda032.JPG |
| item_ |
140-13345-R |
| item_ |
Wilwood Dynapro Dust-Boot Front Kit 11.00in Red WWE ProSpindle |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545020168 |
| item_ |
1032.24 |
| item_ |
1156.11 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
40.00 |
| dim_ |
14.90 |
| dim_ |
13.10 |
| dim_ |
13.10 |
| shipping_ |
16.02 |
| item_ |
wil140-13345-R |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Manufacturer's Part Number | 140-13345-R |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits |
| Position | Front |
| Front Rotor Included | Yes |
| Front Rotor Style | Solid surface |
| Front Rotor Construction | Vented |
| Front Rotor Diameter | 11.00 in./279.40mm |
| Front Rotor Thickness (in.) | 0.81 in. |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.50 in./5 x 4.75 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 114.30mm/5 x 120.65mm |
| Rear Rotor Included | No |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | Four |
| Front Caliper Material | Forged billet aluminum |
| Front Caliper Color | Red |
| Rear Caliper Included | No |
| Brake Pads Included | Yes |
| Friction Material Name | BP-10 |
| Parking Brake Provision | No |

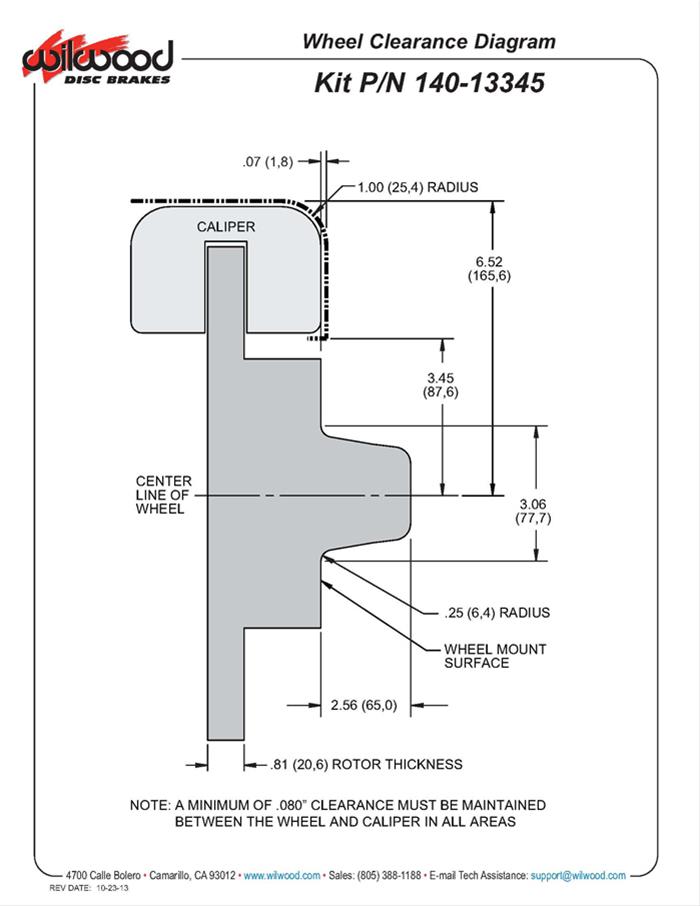

| Minimum Recommended Wheel Diameter (in.) | 14 in. |
| Offset (in.) | 0.100 in. |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Remanufactured | No |
| Brake Hoses Included | No |
| Quantity | Sold as a kit. |
| Notes | For use with Wilwood Pro Spindles. |
