Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits 140-13343-R
Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits 140-13343-R
50 in stock
Couldn't load pickup availability
Tags
Product Description

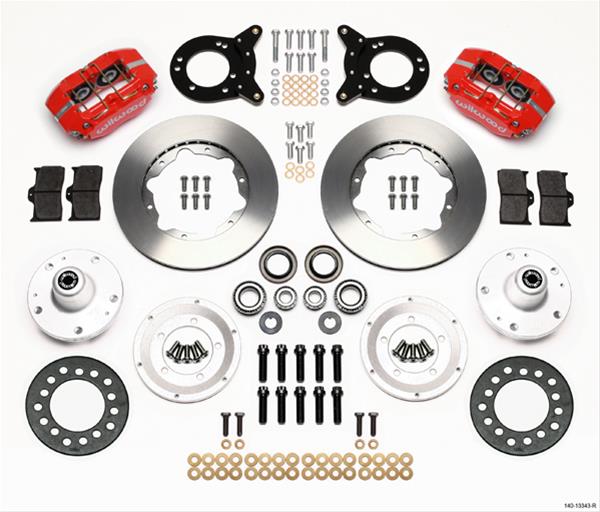

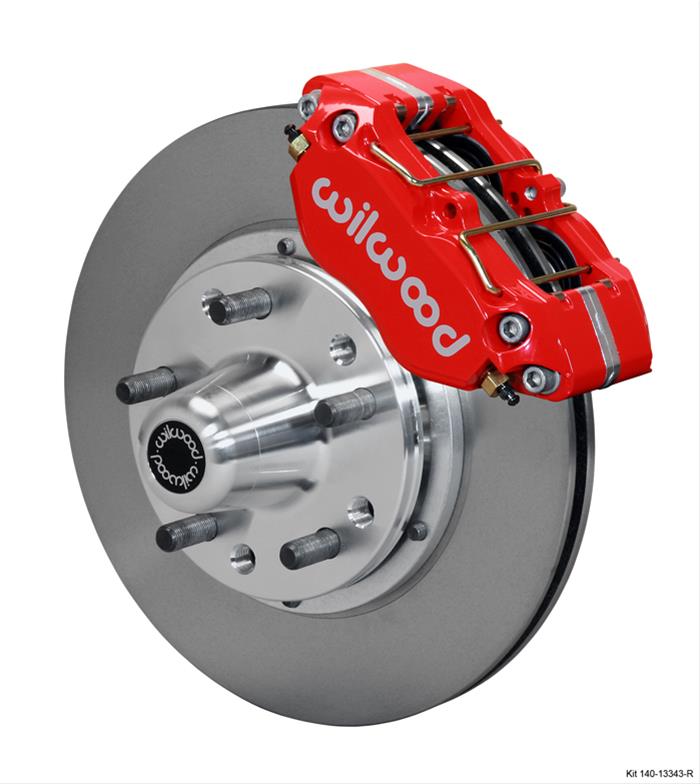

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
Wilwood DynaPro Big Brake front brake kits allow you to enhance conventional non-ABS spindles on machines providing big brake stopping power. These kits were developed for when dust-booted pistons are appropriate to provide added protection against dirt and debris in low temperature areas and rough environments. A full range of caliper finish and rotor designs provide options to individualize the style and preferences of any enthusiast. Kits come complete with calipers, rotors, hub assembly, brackets and hardware.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
Wilwood''s new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below. |
|---|---|
| product_ |
KIT,FRONT,MUSTANG,65-69,DP-DB,11.00 |
| product_ |
KIT,FRONT,MUSTANG,65-69,DP-DB,11.00 ROTOR,VENTED,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits 140-13343-R |
| brand | Wilwood Disc Brakes |
| price | 1042.74 |
| blurb | Disc Brakes, DynaPro Pro Series, Front, Solid Surface Rotors, 4-piston Red Calipers, Ford, Mercury, Kit |
| title | Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits |
| description | Wilwood DynaPro Big Brake front brake kits allow you to enhance conventional non-ABS spindles on machines providing big brake stopping power. These kits were developed for when dust-booted pistons are appropriate to provide added protection against dirt and debris in low temperature areas and rough environments. A full range of caliper finish and rotor designs provide options to individualize the style and preferences of any enthusiast. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. |
item_row
| handle | WIL-140-13343-R |
|---|---|
| item_ |
138070 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/7b33003450323697df15583ce9ee4586.JPG |
| item_ |
140-13343-R |
| item_ |
Wilwood Dynapro Dust-Boot Front Kit 11.00in Red 1965-1969 Mustang Disc & Drum Spindle |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545020076 |
| item_ |
1042.74 |
| item_ |
1167.87 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
40.00 |
| dim_ |
14.90 |
| dim_ |
13.10 |
| dim_ |
13.10 |
| shipping_ |
16.02 |
| item_ |
wil140-13343-R |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Includes 1/2 in.-20 wheel studs. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 0.090 in. |
| Product Line | Wilwood DynaPro Dust-Boot Pro Series Front Brake Kits |
| Front Rotor Style | Solid surface |
| Front Caliper Color | Red |
| Rear Rotor Included | No |
| Brake Hoses Included | No |
| Front Rotor Diameter | 11.00 in./279.40mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-13343-R |
| Front Rotor Thickness (in.) | 0.81 in. |
| Brake Rotor Bolt Pattern (mm) | Dual 5 x 114.30mm/5 x 120.65mm |
| Front Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (in.) | Dual 5 x 4.50 in./5 x 4.75 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
