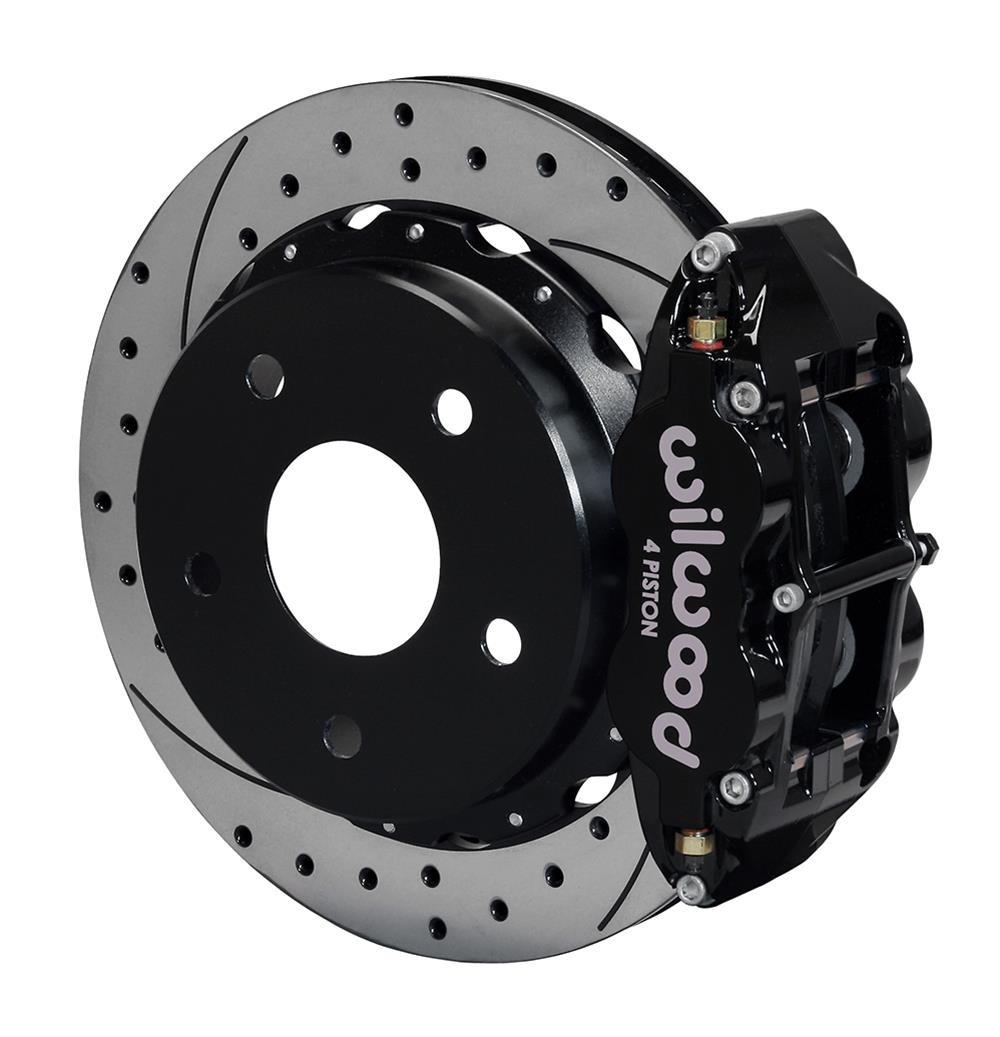

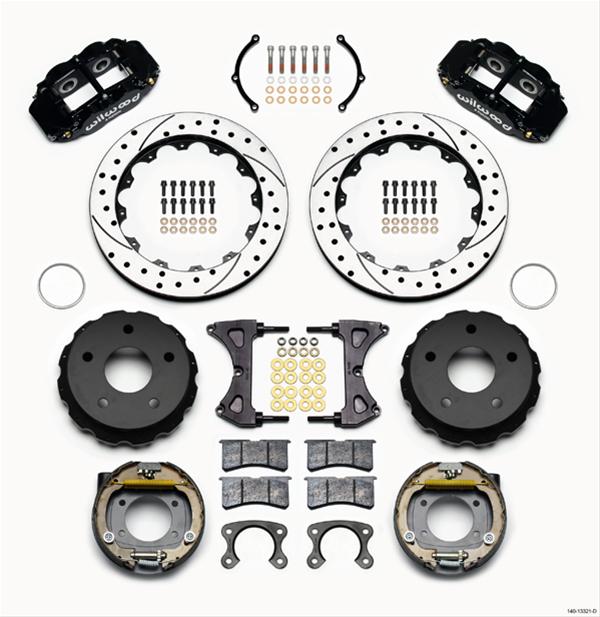

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-13321-D

Name: Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-13321-D
Brand: Wilwood
SKU: wil140-13321-D
Price: 2423.32 AUD
Availability: InStock

$2,423.32 AUD

~~$2,261.76 AUD~~ $2,423.32 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

20 in stock

Product variants

Quantity

Product Description

These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Each includes a high efficiency drum style parking brake assembly. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.

Application Summary

Part Type

description

market_description	These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Each includes a high efficiency drum style parking brake assembly. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
product_description_invoice	KIT,REAR,DISC/DRUM,SMALL FORD,2.36 OFF
product_description_long	KIT,REAR,DISC/DRUM,SMALL FORD,2.36 OFF FNSL4R,5x5.50 BC,12.88 ROTOR,DRILLED
product_description_short	BRAKE KIT

s_item

department	Brake Systems
section	Disc Brakes
name	Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-13321-D
brand	Wilwood Disc Brakes
price	2019.43
blurb	Disc Brake Kits,Forged Narrow Superlite 4R Big Brake, Rear, Cross-drilled/Slotted Rotors, 4-Piston Calipers, Small Ford, Kit
title	Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
description	Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.

item_row

handle	WIL-140-13321-D
item_id	137569
brand_id	232
brand_name	Wilwood
item_thumbnail	https://d32vzsop7y1h3k.cloudfront.net/58b7142b89b0c32b770bf571eb59e034.JPG
item_mfr_part_number	140-13321-D
item_title	Wilwood Narrow Superlite 4R Rear P-Brk Kit 12.88in Drilled Small Ford 2.36in Off Bronco 5 x 5.50
item_category	Big Brake Kits
item_subcategory	Big Brake Kits
item_barcode	889545019773
item_map	2019.43
item_rrp	2261.76
t14_qty	0
mfr_qty	9
dim_weight	76.00
dim_length	16.00
dim_width	15.80
dim_height	15.50
shipping_avg	32.64
item_part_number	wil140-13321-D
taxonomy_id	5367
collection_id	273461379114
collection_title	Big Brake Kits
status	Active
item_can_purchase	1
item_old_category	Brakes, Rotors & Pads
productTaxonomy	5367

Overview

Brand	Wilwood Disc Brakes
Position	Rear
Quantity	Sold as a kit.
Part Type	Disc Brake Kits
Offset (in.)	2.360 in.
Product Line	Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits
Rear Rotor Style	Cross-drilled/Slotted surface
Rear Caliper Color	Black
Parking Brake Style	Internal drum
Rear Rotor Diameter	12.88 in./327.15mm
Rear Rotor Included	Yes
Brake Hoses Included	No
Front Rotor Included	No
Rear Caliper Included	Yes
Rear Caliper Material	Forged billet aluminum
Brake Booster Included	No
Front Caliper Included	No
Front Spindles Included	No
Parking Brake Provision	Yes
Rear Rotor Construction	Vented
Master Cylinder Included	No
Axle Housing Flange Style	Small Ford Bronco (3.336 in. x 2.00 in. 5-Lug)
Manufacturer's Part Number	140-13321-D
Rear Rotor Thickness (in.)	1.10
Rear Caliper Piston Quantity	Four
Brake Rotor Bolt Pattern (mm)	5 x 139.70mm
Brake Rotor Bolt Pattern (in.)	5 x 5.50 in.
Minimum Recommended Wheel Diameter (in.)	17 in.
