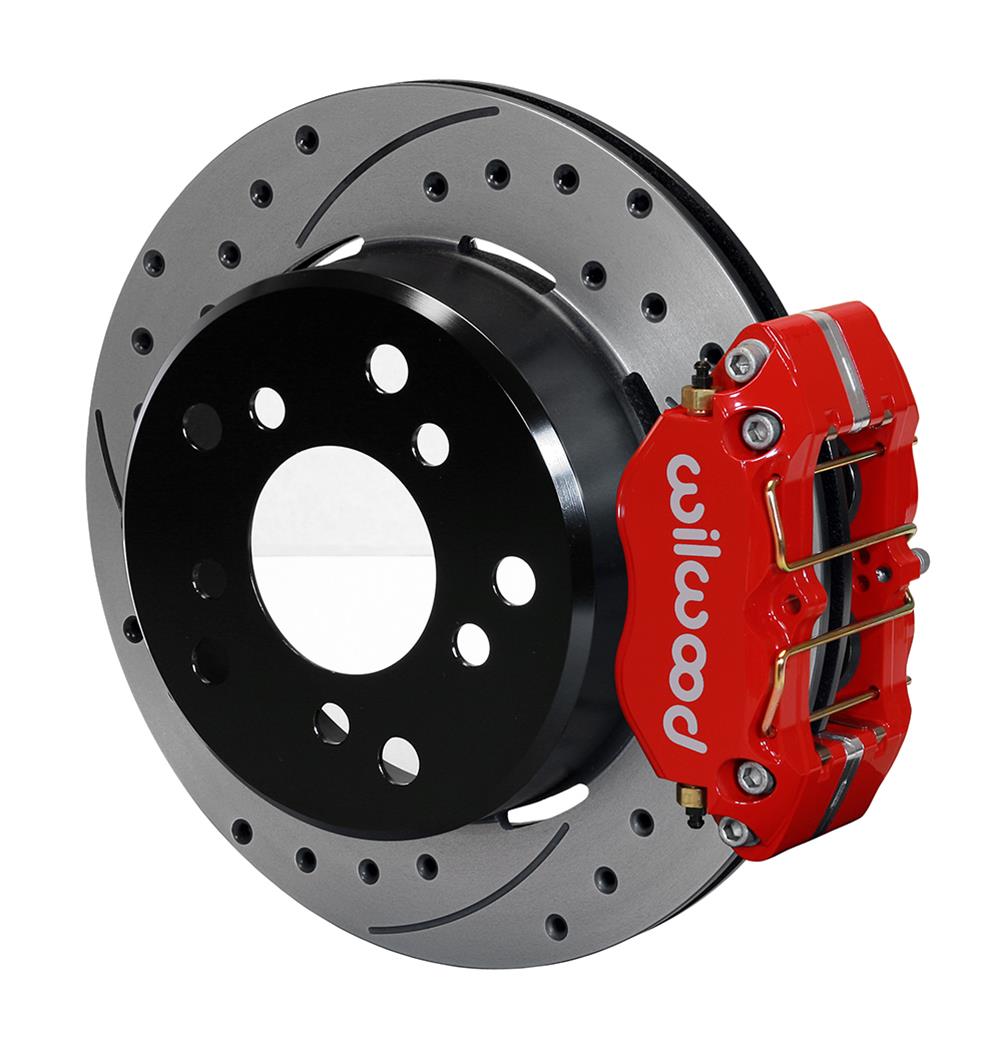

Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13320-DR
Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13320-DR
13 in stock
Couldn't load pickup availability
Product Description
These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

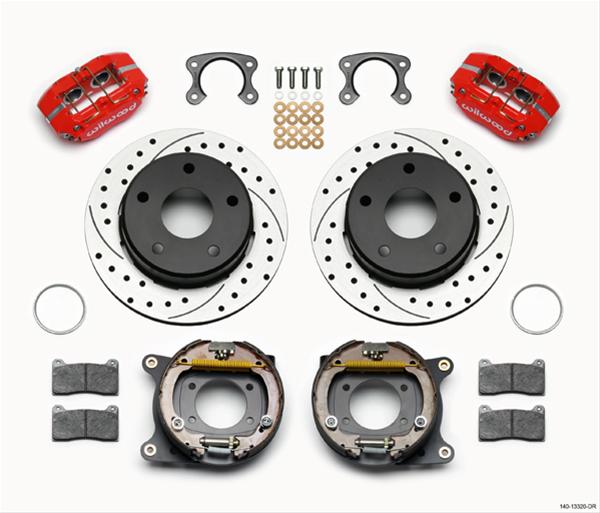

If you're replacing the rear brake shoes for your parking brake and have a desire to have discs all around, Wilwood DynaPro Lug Mount rear parking brake kits have a complete solution for rear axles that require a parking brake. Included are forged billet piston calipers, one-piece drum/rotors, and high-friction pads, as well as all necessary hardware to provide improved braking for the custom machine you drive. These kits are designed to fit OE factory spindles, allow for a clear-cut install, and will provide exceptional holding power for the parking brake. Various caliper finishes and rotor designs allow you to choose the essential style and brake performance for your personal application.
Application Summary
Part Type
description
| market_ |
These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,SMALL FORD,2.36 OFF |
| product_ |
KIT,REAR,DISC/DRUM,SMALL FORD,2.36 OFF DPL,1 PC,5x5.50 BC,12.19 ROTOR,DRILL,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13320-DR |
| brand | Wilwood Disc Brakes |
| price | 1265.93 |
| blurb | 2.36 OFF, DPL, 1 PC, 5x5.50 BC, 12.19 ROTOR, DRILLED, RED |
| title | Wilwood DynaPro Lug-Mount Rear Parking Brake Kits |
| description | If you're replacing the rear brake shoes for your parking brake and have a desire to have discs all around, Wilwood DynaPro Lug Mount rear parking brake kits have a complete solution for rear axles that require a parking brake. Included are forged billet piston calipers, one-piece drum/rotors, and high-friction pads, as well as all necessary hardware to provide improved braking for the custom machine you drive. These kits are designed to fit OE factory spindles, allow for a clear-cut install, and will provide exceptional holding power for the parking brake. Various caliper finishes and rotor designs allow you to choose the essential style and brake performance for your personal application. |
item_row
| handle | WIL-140-13320-DR |
|---|---|
| item_ |
136755 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5df0d7da2d65e5879b736d15110e8e20.JPG |
| item_ |
140-13320-DR |
| item_ |
Wilwood Dynapro Lug Mount P/S P-B Kit Drilled-Red Small Ford 2.36in Off Bronco 5 x 5.50 |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545019742 |
| item_ |
1265.93 |
| item_ |
1417.84 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
50.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
17.34 |
| item_ |
wil140-13320-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Included rotors are coated in Black Electro Coat. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.360 in. |
| Product Line | Wilwood DynaPro Lug-Mount Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Small Ford Bronco (3.336 in. x 2.00 in. 5-Lug) |
| Manufacturer's Part Number | 140-13320-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | 5 x 139.70mm |
| Brake Rotor Bolt Pattern (in.) | 5 x 5.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
