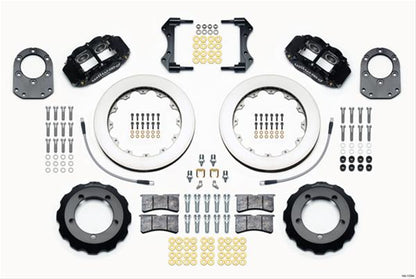

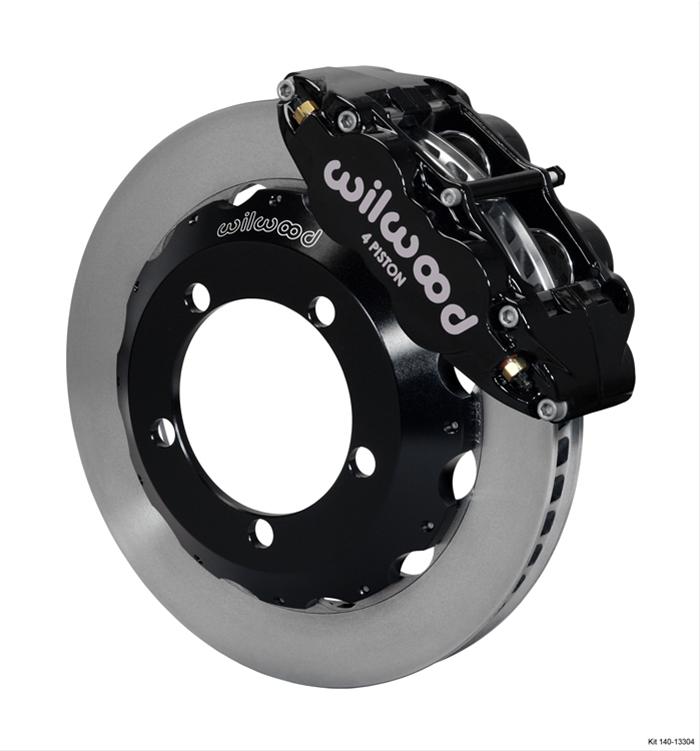

Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kits 140-13304
Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kits 140-13304
34 in stock
Couldn't load pickup availability
Product Description
The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the basis of these 12.88" or 14.00" inch big rotor kits for the popular Ford Bronco vehicles. SL4R kits are engineered application specific to these vehicles, providing simplified installation. Each kit is engineered vehicle specific and utilizes the existing hub assembly. Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Lifted 4x4s with taller and heavier tire and wheel combinations need Wilwood Forged Narrow Superlite 4R big brake front brake kits to restore stopping power. SL4 kits are specifically engineered per application, but all revolve around Forged Narow Superlite 4R four-piston stainless steel calipers with their 4-symmetrical bores and high clamping force. Oversized, proprietary iron alloy, Spec 37 rotors withstand extreme temperatures and have a high degree of resistance to warping, cracking, distortion, and wear. Both of these parts are built to work hard without issues, but Wilwood's kit doesn't stop there. They also feature forged aluminum mounting hats, BP-10 Smart Pads to increase friction and reduce pad dust, radial mounting brackets, and hardware. Custom wheels and tall tires give character and off-road prowess, but if you can't stop them you're destined to hurt yourself and many others. Wilwood Forged Narrow Superlite 4R big brake front brake kits will help reel in your beast.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the basis of these 12.88" or 14.00" inch big rotor kits for the popular Ford Bronco vehicles. SL4R kits are engineered application specific to these vehicles, providing simplified installation. Each kit is engineered vehicle specific and utilizes the existing hub assembly. Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. |
|---|---|
| product_ |
KIT,FRONT,FORD BRONCO,66-75,DANA 30/44 |
| product_ |
KIT,FRONT,FORD BRONCO,66-75,DANA 30/44 12.88 RTR,FNSL,DISC SPINDLE,W/LINES |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kits 140-13304 |
| brand | Wilwood Disc Brakes |
| price | 1900.49 |
| blurb | Disc Brakes, Forged Narrow Superlite 4R Big Brake, Front, Solid Surface Rotors, Black Calipers, Ford, Kit |
| title | Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kits |
| description | Lifted 4x4s with taller and heavier tire and wheel combinations need Wilwood Forged Narrow Superlite 4R big brake front brake kits to restore stopping power. SL4 kits are specifically engineered per application, but all revolve around Forged Narow Superlite 4R four-piston stainless steel calipers with their 4-symmetrical bores and high clamping force. Oversized, proprietary iron alloy, Spec 37 rotors withstand extreme temperatures and have a high degree of resistance to warping, cracking, distortion, and wear. Both of these parts are built to work hard without issues, but Wilwood's kit doesn't stop there. They also feature forged aluminum mounting hats, BP-10 Smart Pads to increase friction and reduce pad dust, radial mounting brackets, and hardware. Custom wheels and tall tires give character and off-road prowess, but if you can't stop them you're destined to hurt yourself and many others. Wilwood Forged Narrow Superlite 4R big brake front brake kits will help reel in your beast. |
item_row
| handle | WIL-140-13304 |
|---|---|
| item_ |
137578 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/2391b6ef21fd15eae8135b0536b42fca.JPG |
| item_ |
140-13304 |
| item_ |
Wilwood Narrow Superlite 4R Front Hat Kit 12.88in 66-75 Ford Bronco Dana 30/44 w/Lines |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545019643 |
| item_ |
1900.49 |
| item_ |
2128.55 |
| t14_ |
0 |
| mfr_ |
28 |
| dim_ |
52.00 |
| dim_ |
16.00 |
| dim_ |
15.80 |
| dim_ |
15.50 |
| shipping_ |
29.81 |
| item_ |
wil140-13304 |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Designed for use with factory drum spindle. |
| Position | Front |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Forged Narrow Superlite 4R Big Brake Front Brake Kits |
| Front Rotor Style | Solid surface |
| Front Caliper Color | Black |
| Rear Rotor Included | No |
| Brake Hoses Included | Yes |
| Front Rotor Diameter | 12.88 in./327.20mm |
| Front Rotor Included | Yes |
| Rear Caliper Included | No |
| Brake Booster Included | No |
| Front Caliper Included | Yes |
| Front Caliper Material | Forged billet aluminum |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Front Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-13304 |
| Front Rotor Thickness (in.) | 1.25 in. |
| Brake Rotor Bolt Pattern (mm) | 5 x 139.70mm |
| Front Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (in.) | 5 x 5.50 in. |
| Minimum Recommended Wheel Diameter (in.) | 17 in. |
