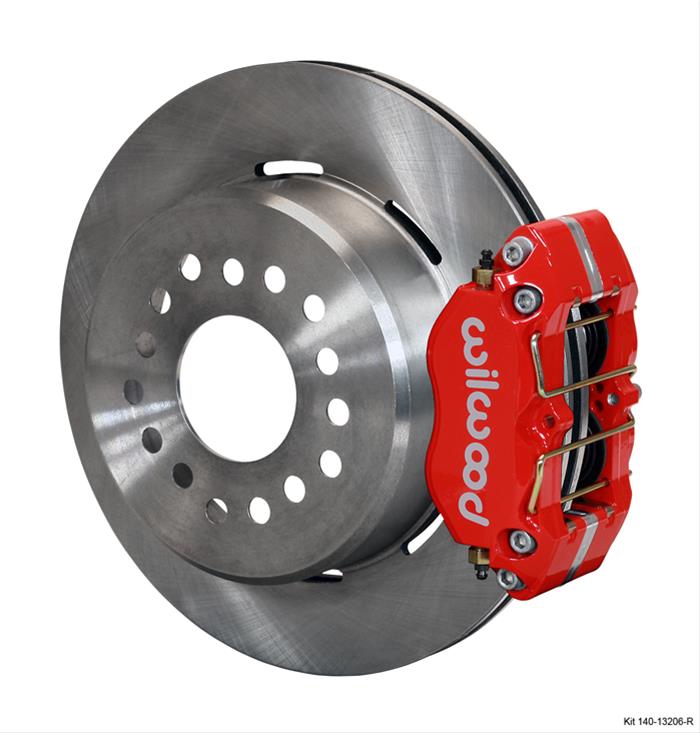

Wilwood DynaPro Dust-Boot Rear Parking Brake Kits 140-13206-R
Wilwood DynaPro Dust-Boot Rear Parking Brake Kits 140-13206-R
40 in stock
Couldn't load pickup availability
Product Description
DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynapro Dust Boot calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

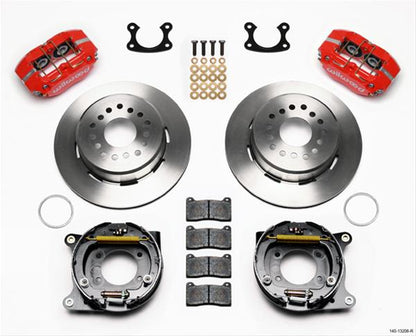

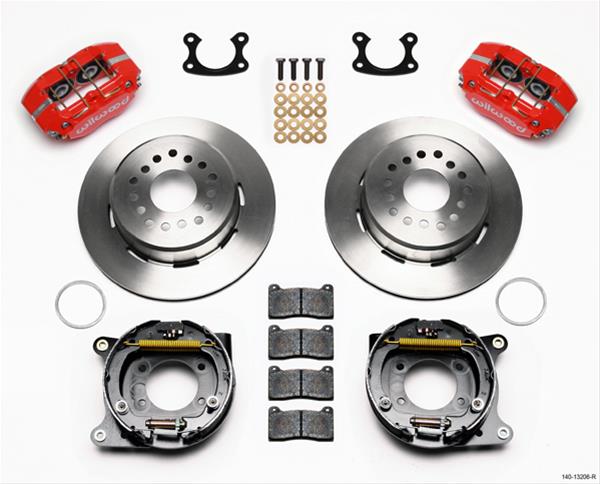

Wilwood DynaPro Dust-Boot rear parking brake kits are ideal if your vehicle is driven in temperatures and conditions in which dust-booted pistons are necessary to stop dirt and debris from getting down into the calipers, therefore prolonging its life. The debris can eventually scratch the wall surface and cause a leak, or even build up and inhibit the piston travel. Included are one-piece drum/rotors, pads, dust-booted calipers, and related hardware. Choose the caliper finishes and rotor designs which provide you with the proper style and brake performance for your personal application.
Application Summary
Part Type
description
| market_ |
DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynapro Dust Boot calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,DP-DB,SMALL FORD,2.50 |
| product_ |
KIT,REAR,DISC/DRUM,DP-DB,SMALL FORD,2.50 OFF,1PC .81 ROTOR,RED |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood DynaPro Dust-Boot Rear Parking Brake Kits 140-13206-R |
| brand | Wilwood Disc Brakes |
| price | 1014.49 |
| blurb | Disc Brake Kits, DynaPro Rear, Solid Surface Rotors, Red Calipers, Small Ford Flange, Kit |
| title | Wilwood DynaPro Dust-Boot Rear Parking Brake Kits |
| description | Wilwood DynaPro Dust-Boot rear parking brake kits are ideal if your vehicle is driven in temperatures and conditions in which dust-booted pistons are necessary to stop dirt and debris from getting down into the calipers, therefore prolonging its life. The debris can eventually scratch the wall surface and cause a leak, or even build up and inhibit the piston travel. Included are one-piece drum/rotors, pads, dust-booted calipers, and related hardware. Choose the caliper finishes and rotor designs which provide you with the proper style and brake performance for your personal application. |
item_row
| handle | WIL-140-13206-R |
|---|---|
| item_ |
136762 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/c35c67f6b1f6591796c8b4a6c1f0aa64.JPG |
| item_ |
140-13206-R |
| item_ |
Wilwood Dynapro Dust-Boot P/S Park Brake Kit Red Small Ford 2.50in Offset |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545019339 |
| item_ |
1014.49 |
| item_ |
1136.23 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
50.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
17.34 |
| item_ |
wil140-13206-R |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.500 in. |
| Product Line | Wilwood DynaPro Dust-Boot Rear Parking Brake Kits |
| Rear Rotor Style | Solid surface |
| Rear Caliper Color | Red |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | Small Ford (3.336 in. x 2.00 in.) |
| Manufacturer's Part Number | 140-13206-R |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 15 in. |
