Wilwood Forged DPHA Front Caliper and Rotor Kits 140-12996

Name: Wilwood Forged DPHA Front Caliper and Rotor Kits 140-12996
Brand: Wilwood
SKU: wil140-12996
Price: 704.23 AUD
Availability: InStock

$704.23 AUD

~~$657.29 AUD~~ $704.23 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

31 in stock

Product variants

Quantity

Product Description

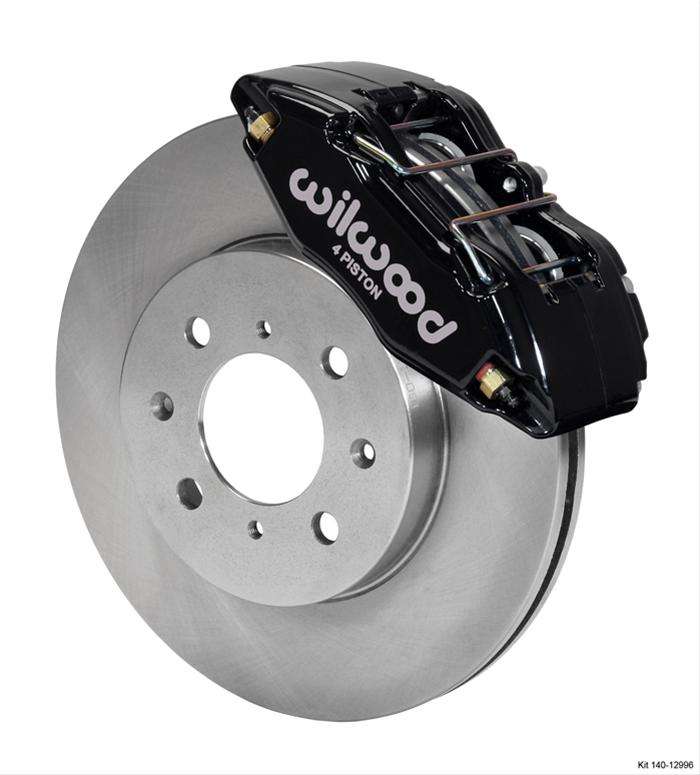

Wilwood's new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15" wheel. Designed around Wilwood's proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood's signature logo.

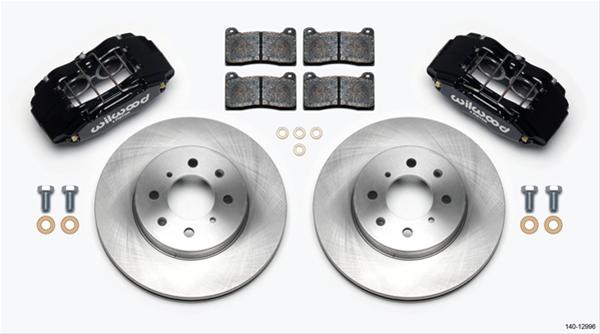

Wilwood Forged DPHA front caliper and rotor kits are designed around their DynaPro series 4-piston calipers and forged billet bodied rotors for high-strength clamping and solid stopping performance. These calipers work perfectly with the OE master cylinder and ABS functions, bolt up to the stock mounts on factory spindles, accept OE brake hoses, clear many factory aluminum wheels, and fit over 262mm diameter rotors. The low-dusting pads are firmly balanced by four stainless steel pistons, which provide corrosion resistance and thermal retardant qualities.

Application Summary

Fitment

Acura Integra 1990–2001

Honda Civic 1990–2005 Honda Fit 2007–2013

Fitment

Acura Integra 1990–1993, 1997–2001 (GS) Acura Integra 1990–2001 (LS) Acura Integra 1990–1998 (RS) Acura Integra 1992–2001 (GS-R) Acura Integra 1995–1996 (Special Edition) Acura Integra 1997–1998, 2000–2001 (Type R)

Honda Civic 1990–2005 (EX) Honda Civic 1993–1997, 2001–2005 (DX) Honda Civic 1994–1995, 1999–2000, 2002–2003 (Si) Honda Civic 1994–1996, 2001–2005 (LX) Honda Civic 1996–1997 (CX) Honda Civic 2001–2005 (HX, GX) Honda Civic 2003–2005 (Hybrid) Honda Civic 2004–2005 (Value Package) Honda Civic 2005 (EX Special Edition, LX Special Edition) Honda Fit 2007–2013 (Base, Sport)

Part Type

description

market_description	Wilwood''s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm diameter rotors. These calipers bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15" wheel. Designed around Wilwood''s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles. Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood''s signature logo.
product_description_invoice	KIT,FRONT,HONDA/ACURA,DPHA,BLACK
product_description_short	BRAKE KIT

s_item

department	Brake Systems
section	Disc Brakes
name	Wilwood Forged DPHA Front Caliper and Rotor Kits 140-12996
brand	Wilwood Disc Brakes
price	586.86
blurb	Disc Brakes, Front, Forged DPHA, Solid Surface Rotors, 4-piston Gray Calipers, for use on Acura®, Honda®, Kit
title	Wilwood Forged DPHA Front Caliper and Rotor Kits
description	Wilwood Forged DPHA front caliper and rotor kits are designed around their DynaPro series 4-piston calipers and forged billet bodied rotors for high-strength clamping and solid stopping performance. These calipers work perfectly with the OE master cylinder and ABS functions, bolt up to the stock mounts on factory spindles, accept OE brake hoses, clear many factory aluminum wheels, and fit over 262mm diameter rotors. The low-dusting pads are firmly balanced by four stainless steel pistons, which provide corrosion resistance and thermal retardant qualities.

item_row

handle	WIL-140-12996
item_id	137661
brand_id	232
brand_name	Wilwood
item_thumbnail	https://d32vzsop7y1h3k.cloudfront.net/9f535cea1c334443ffa1344e1399e03a.JPG
item_mfr_part_number	140-12996
item_title	Wilwood DPHA Front Caliper & Rotor Kit Honda / Acura w/ 262mm OE Rotor
item_category	Big Brake Kits
item_subcategory	Big Brake Kits
item_barcode	889545018455
item_map	586.86
item_rrp	657.29
t14_qty	1
mfr_qty	20
dim_weight	35.80
dim_length	12.80
dim_width	12.50
dim_height	12.30
shipping_avg	15.65
item_part_number	wil140-12996
taxonomy_id	5367
collection_id	273461379114
collection_title	Big Brake Kits
status	Active
item_can_purchase	1
item_old_category	Brakes, Rotors & Pads
productTaxonomy	5367

Overview

Brand	Wilwood Disc Brakes
Position	Front
Quantity	Sold as a kit.
Part Type	Disc Brake Kits
Product Line	Wilwood Forged DPHA Front Caliper and Rotor Kits
Front Rotor Style	Solid surface
Front Caliper Color	Gray/Silver
Rear Rotor Included	No
Brake Hoses Included	No
Front Rotor Diameter	10.32 in./262.13mm
Front Rotor Included	Yes
Rear Caliper Included	No
Brake Booster Included	No
Front Caliper Included	Yes
Front Caliper Material	Forged billet aluminum
Front Spindles Included	No
Parking Brake Provision	No
Front Rotor Construction	Vented
Master Cylinder Included	No
Manufacturer's Part Number	140-12996
Front Rotor Thickness (in.)	0.83 in.
Brake Rotor Bolt Pattern (mm)	4 x 100.00mm
Front Caliper Piston Quantity	Four
Minimum Recommended Wheel Diameter (in.)	15 in.
