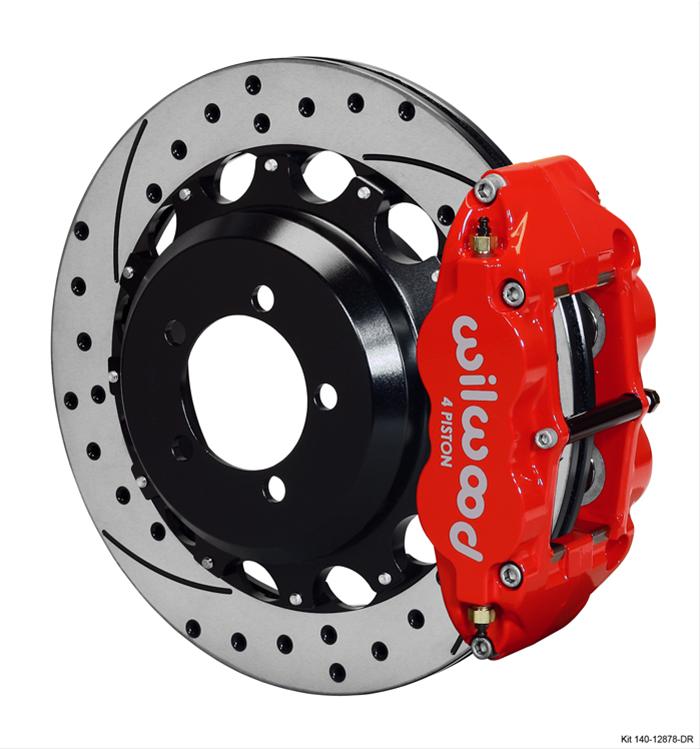

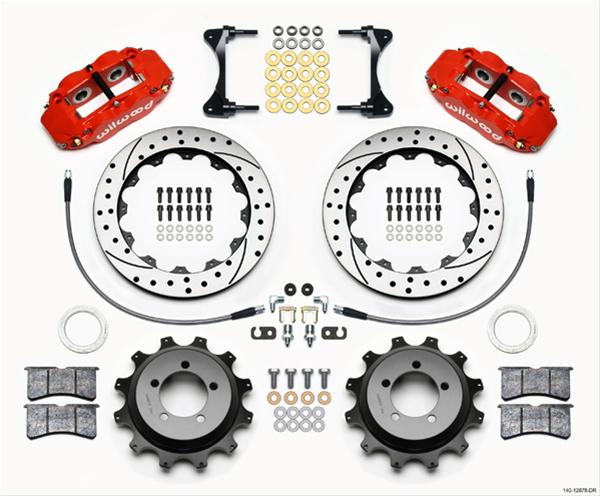

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-12878-DR
Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-12878-DR
Low stock: 1 left
Couldn't load pickup availability
Tags
Product Description
Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 12.88" rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for Import Cars retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13" and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.
Application Summary
Fitment
Fitment
Part Type
description
| market_ |
Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 12.88" rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for Import Cars retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13" and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications. |
|---|---|
| product_ |
KIT,REAR,SUBARU WRX 99-05/ IMPREZA 99-07 |
| product_ |
KIT,REAR,SUBARU WRX 99-05/ IMPREZA 99-07 FNSL4R,12.88x.81,REAR MT,DRL,RED,W/LINE |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits 140-12878-DR |
| brand | Wilwood Disc Brakes |
| price | 2012.24 |
| blurb | Disc Brakes, Forged Narrow Superlite 4R Big Brake, Rear, Cross-drilled/Slotted Rotors, 4-piston Red Calipers, Saab, Subaru, Kit |
| title | Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits |
| description | Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application. |
item_row
| handle | WIL-140-12878-DR |
|---|---|
| item_ |
137688 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/4877f5e7a34d836147d0fabec5884e8b.JPG |
| item_ |
140-12878-DR |
| item_ |
Wilwood Narrow Superlite 4R Rear Kit 12.88in Drilled Red 99-05 WRX / 99-07 Impreza |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545017977 |
| item_ |
2012.24 |
| item_ |
2253.71 |
| t14_ |
1 |
| mfr_ |
0 |
| dim_ |
53.00 |
| dim_ |
15.90 |
| dim_ |
15.70 |
| dim_ |
15.20 |
| shipping_ |
29.85 |
| item_ |
wil140-12878-DR |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Designed to be used with OE parking brake assembly. Included rotors are coated in Black Electro Coat. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Product Line | Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Red |
| Rear Rotor Diameter | 12.88 in./327.15mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | Yes |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | No |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Manufacturer's Part Number | 140-12878-DR |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Four |
| Brake Rotor Bolt Pattern (mm) | 5 x 100.00mm |
| Minimum Recommended Wheel Diameter (in.) | 17 in. |
