Wilwood D154 Rear Parking Brake Kits 140-12570-D
Wilwood D154 Rear Parking Brake Kits 140-12570-D
8 in stock
Couldn't load pickup availability
Product Description

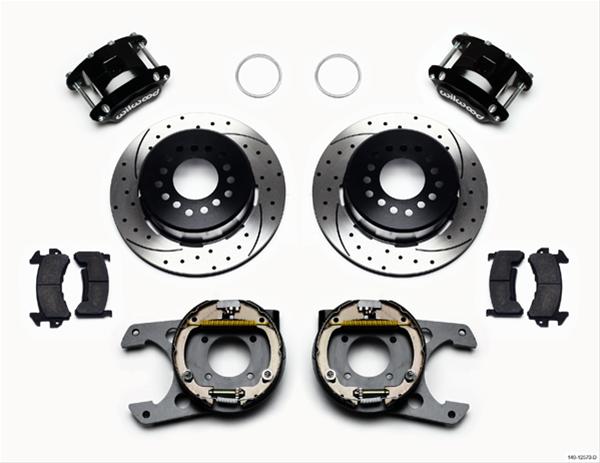

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Wilwood D154 rear parking brake kits provide high performance stopping power for musclecars with rear axles that require a parking brake! Featuring forged D154 dual-piston calipers, 12.19 in. one-piece drum and rotors, and high-friction pads, these kits nicely complement your D52 or D154 calipers on OE spindles. Their neatly hidden internal shoe system allows for a clean installation and superior static holding power for parking. Optional caliper finishes and rotor designs let you customize the look and performance of your brakes. Wilwood D154 rear parking brake kits offer balanced, optimized braking for all types of custom performance street/strip and show machines!
Application Summary
Part Type
description
| market_ |
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance. |
|---|---|
| product_ |
KIT,REAR,DISC/DRUM,12 BOLT,CHEVY,2.75/ |
| product_ |
KIT,REAR,DISC/DRUM,12 BOLT,CHEVY,2.75/ 2.81 OFF,D154,1PC ROTOR,STAGGERED MT,SRP |
| product_ |
BRAKE KIT |
s_item
| department | Brake Systems |
|---|---|
| section | Disc Brakes |
| name | Wilwood D154 Rear Parking Brake Kits 140-12570-D |
| brand | Wilwood Disc Brakes |
| price | 1022.68 |
| blurb | Disc Brake Kits, D154 Rear Parking Brake Kits, Cross-drilled/Slotted Rotors, Black Calipers, Designed for Staggered Shocks, 12-bolt Chevrolet, Kit |
| title | Wilwood D154 Rear Parking Brake Kits |
| description | Wilwood D154 rear parking brake kits provide high performance stopping power for musclecars with rear axles that require a parking brake! Featuring forged D154 dual-piston calipers, 12.19 in. one-piece drum and rotors, and high-friction pads, these kits nicely complement your D52 or D154 calipers on OE spindles. Their neatly hidden internal shoe system allows for a clean installation and superior static holding power for parking. Optional caliper finishes and rotor designs let you customize the look and performance of your brakes. Wilwood D154 rear parking brake kits offer balanced, optimized braking for all types of custom performance street/strip and show machines! |
item_row
| handle | WIL-140-12570-D |
|---|---|
| item_ |
136799 |
| brand_ |
232 |
| brand_ |
Wilwood |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a0498fec2be5832c4e5c5925995a8af2.JPG |
| item_ |
140-12570-D |
| item_ |
Wilwood D154 P/S Park Brake Kit Drilled 12 Bolt 2.75in offset Staggered Shock |
| item_ |
Big Brake Kits |
| item_ |
Big Brake Kits |
| item_ |
889545016963 |
| item_ |
1022.68 |
| item_ |
1145.40 |
| t14_ |
0 |
| mfr_ |
8 |
| dim_ |
59.00 |
| dim_ |
16.60 |
| dim_ |
13.90 |
| dim_ |
13.90 |
| shipping_ |
29.72 |
| item_ |
wil140-12570-D |
| taxonomy_ |
5367 |
| collection_ |
273461379114 |
| collection_ |
Big Brake Kits |
| status | Active |
| item_ |
1 |
| item_ |
Brakes, Rotors & Pads |
| productTaxonomy | 5367 |
Overview
| Brand | Wilwood Disc Brakes |
|---|---|
| Notes | Included rotors are coated in Black Electro Coat. Designed for models with staggered shocks. |
| Position | Rear |
| Quantity | Sold as a kit. |
| Part Type | Disc Brake Kits |
| Offset (in.) | 2.750 in. |
| Product Line | Wilwood D154 Rear Parking Brake Kits |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Caliper Color | Black |
| Parking Brake Style | Internal drum |
| Rear Rotor Diameter | 12.19 in./309.63mm |
| Rear Rotor Included | Yes |
| Brake Hoses Included | No |
| Front Rotor Included | No |
| Rear Caliper Included | Yes |
| Rear Caliper Material | Forged billet aluminum |
| Brake Booster Included | No |
| Front Caliper Included | No |
| Front Spindles Included | No |
| Parking Brake Provision | Yes |
| Rear Rotor Construction | Vented |
| Master Cylinder Included | No |
| Axle Housing Flange Style | 10/12 Bolt Chevrolet (3.072 in. x 2.40 in.) |
| Manufacturer's Part Number | 140-12570-D |
| Rear Rotor Thickness (in.) | 0.81 |
| Rear Caliper Piston Quantity | Two |
| Brake Rotor Bolt Pattern (mm) | Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm |
| Differential Case Design Type | GM 8.875 in. (12-bolt), passenger car |
| Brake Rotor Bolt Pattern (in.) | Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in. |
| Minimum Recommended Wheel Diameter (in.) | 16 in. |
